TC2:Two-Piece Split Style Threaded Collar
| Does not mar the shaft | |||||
| Opposing screws available | |||||
| Acme, Left-hand and metric threads available | |||||
| Single point faced | |||||
| Width tolerance: +.003¡±/-.010¡± | |||||

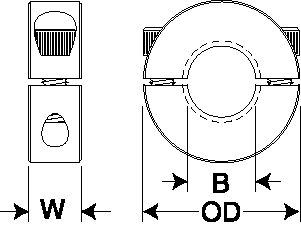

| PART NUMBER STEEL | PART NUMBER STAINLESS STEEL | BORE B | OD (in) | WIDTH W (in) | FORGED CLAMP SCREW |
| TC2-2-32-F | TC2-2-32-SS | 8-32 | 5/8 | 0.281 | 4-40X5/16 |
| TC2-3-24-F | TC2-3-24-SS | 10-24 | 5/8 | 0.281 | 4-40X5/16 |
| TC2-3-32-F | TC2-3-32-SS | 10-32 | 5/8 | 0.281 | 4-40X5/16 |
| TC2-4-20-F | TC2-4-20-SS | 1/4-20 | 5/8 | 0.281 | 4-40X5/16 |
| TC2-4-28-F | TC2-4-28-SS | 1/4-28 | 5/8 | 0.281 | 4-40X5/16 |
| TC2-5-18-F | TC2-5-18-SS | 5/16-18 | 11/16 | 0.281 | 4-40X5/16 |
| TC2-5-24-F | TC2-5-24-SS | 5/16-24 | 11/16 | 0.281 | 4-40X5/16 |
| TC2-6-16-F | TC2-6-16-SS | 3/8-16 | 7/8 | 0.343 | 6-32X3/8 |
| TC2-6-24-F | TC2-6-24-SS | 3/8-24 | 7/8 | 0.343 | 6-32X3/8 |
| TC2-7-14-F | TC2-7-14-SS | 7/16-14 | 15/16 | 0.343 | 6-32X3/8 |
| TC2-7-20-F | TC2-7-20-SS | 7/16-20 | 15/16 | 0.343 | 6-32X3/8 |
| TC2-8-13-F | TC2-8-13-SS | 1/2-13 | 1.125 | 0.406 | 8-32X1/2 |
| TC2-8-20-F | TC2-8-20-SS | 1/2-20 | 1.125 | 0.406 | 8-32X1/2 |
| TC2-10-11-F | TC2-10-11-SS | 5/8-11 | 1.3125 | 0.437 | 10-32X1/2 |
| TC2-10-18-F | TC2-10-18-SS | 5/8-18 | 1.3125 | 0.437 | 10-32X1/2 |
| TC2-12-10-F | TC2-12-10-SS | 3/4-10 | 1.5 | 0.5 | 1/4-28X5/8 |
| TC2-12-16-F | TC2-12-16-SS | 3/4-16 | 1.5 | 0.5 | 1/4-28X5/8 |
| TC2-14-9-F | TC2-14-9-SS | 7/8-9 | 1.625 | 0.5 | 1/4-28X5/8 |
| TC2-14-14-F | TC2-14-14-SS | 7/8-14 | 1.625 | 0.5 | 1/4-28X5/8 |
| TC2-16-8-F | TC2-16-8-SS | 1-8 | 1.75 | 0.5 | 1/4-28X11/16 |
| TC2-16-12-F | TC2-16-12-SS | 1-12 | 1.75 | 0.5 | 1/4-28X11/16 |
| TC2-16-14-F | TC2-16-14-SS | 1-14 | 1.75 | 0.5 | 1/4-28X11/16 |
| TC2-18-7-F | TC2-18-7-SS | 1 1/8-7 | 1.875 | 0.5 | 1/4-28X11/16 |
| TC2-18-12-F | TC2-18-12-SS | 1 1/8-12 | 1.875 | 0.5 | 1/4-28X11/16 |
| TC2-20-7-F | TC2-20-7-SS | 1 1/4-7 | 2.0625 | 0.5 | 1/4-28X11/16 |
| TC2-20-12-F | TC2-20-12-SS | 1 1/4-12 | 2.0625 | 0.5 | 1/4-28X11/16 |
| TC2-22-6-F | TC2-22-6-SS | 1 3/8-6 | 2.25 | 0.563 | 1/4-28X3/4 |
| TC2-22-12-F | TC2-22-12-SS | 1 3/8-12 | 2.25 | 0.563 | 1/4-28X3/4 |
| TC2-24-6-F | TC2-24-6-SS | 1 1/2-6 | 2.375 | 0.563 | 1/4-28X3/4 |
| TC2-24-12-F | TC2-24-12-SS | 1 1/2-12 | 2.375 | 0.563 | 1/4-28X3/4 |
| TC2-28-16-F | TC2-28-16-SS | 1 3/4-16 | 2.75 | 0.688 | 5/16-24X7/8 |
| TC2-32-12-F | TC2-32-12-SS | 2-12 | 3 | 0.688 | 5/16-24X7/8 |
| TC2-36-12-F | TC2-36-12-SS | 2 1/4-12 | 3.25 | 0.75 | 5/16-24X7/8 |
