MSP:Two-Piece Clamp Style Collar

MSP:Two-Piece Clamp Style Collar MSC:Set Screw Style Collar，Clamping Collar with Double Splits PART NUMBER STEELPART NUMBER ALUMINUMPART NUMBER STAINLESS STEELBORE B (mm)OUTER DIAM. OD (mm)WIDTH W (mm)FORGED SET SCREWMSP-3-FMSP-3-AMSP-3-SS3169M3X8MSP-4-FMSP-4-AMSP-4-SS4169M3X8MSP-5-FMSP-5-AMSP-5-SS5......

Send Inquiry

Product Description

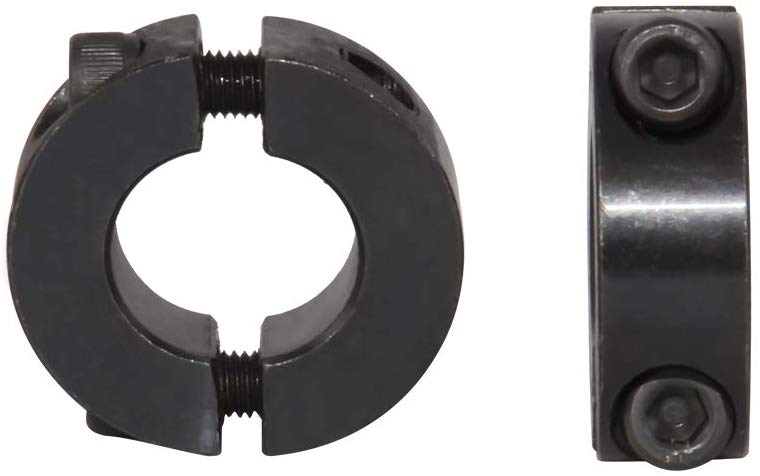

MSP:Two-Piece Clamp Style Collar MSC:Set Screw Style Collar，Clamping Collar with Double Splits

PART NUMBER STEEL	PART NUMBER ALUMINUM	PART NUMBER STAINLESS STEEL	BORE B (mm)	OUTER DIAM. OD (mm)	WIDTH W (mm)	FORGED SET SCREW
MSP-3-F	MSP-3-A	MSP-3-SS	3	16	9	M3X8
MSP-4-F	MSP-4-A	MSP-4-SS	4	16	9	M3X8
MSP-5-F	MSP-5-A	MSP-5-SS	5	16	9	M3X8
MSP-6-F	MSP-6-A	MSP-6-SS	6	16	9	M3X8
MSP-7-F	MSP-7-A	MSP-7-SS	7	18	9	M3X8
MSP-8-F	MSP-8-A	MSP-8-SS	8	18	9	M3X8
MSP-9-F	MSP-9-A	MSP-9-SS	9	24	9	M3X10
MSP-10-F	MSP-10-A	MSP-10-SS	10	24	9	M3X10
MSP-11-F	MSP-11-A	MSP-11-SS	11	28	11	M4X12
MSP-12-F	MSP-12-A	MSP-12-SS	12	28	11	M4X12
MSP-13-F	MSP-13-A	MSP-13-SS	13	30	11	M4X14
MSP-14-F	MSP-14-A	MSP-14-SS	14	30	11	M4X14
MSP-15-F	MSP-15-A	MSP-15-SS	15	34	13	M5X16
MSP-16-F	MSP-16-A	MSP-16-SS	16	34	13	M5X16
MSP-17-F	MSP-17-A	MSP-17-SS	17	36	13	M5X16
MSP-18-F	MSP-18-A	MSP-18-SS	18	36	13	M5X16
MSP-19-F	MSP-19-A	MSP-19-SS	19	40	15	M6X16
MSP-20-F	MSP-20-A	MSP-20-SS	20	40	15	M6X16
MSP-21-F	MSP-21-A	MSP-21-SS	21	42	15	M6X16
MSP-22-F	MSP-22-A	MSP-22-SS	22	42	15	M6X16
MSP-23-F	MSP-23-A	MSP-23-SS	23	45	15	M6X16
MSP-24-F	MSP-24-A	MSP-24-SS	24	45	15	M6X16
MSP-25-F	MSP-25-A	MSP-25-SS	25	45	15	M6X16
MSP-26-F	MSP-26-A	MSP-26-SS	26	48	15	M6X16
MSP-28-F	MSP-28-A	MSP-28-SS	28	48	15	M6X16
MSP-30-F	MSP-30-A	MSP-30-SS	30	54	15	M6X18
MSP-32-F	MSP-32-A	MSP-32-SS	32	54	15	M6X18
MSP-34-F	MSP-34-A	MSP-34-SS	34	57	15	M6X18
MSP-35-F	MSP-35-A	MSP-35-SS	35	57	15	M6X18
MSP-36-F	MSP-36-A	MSP-36-SS	36	57	15	M6X18
MSP-38-F	MSP-38-A	MSP-38-SS	38	60	15	M6X18
MSP-40-F	MSP-40-A	MSP-40-SS	40	60	15	M6X18
MSP-42-F	MSP-42-A	MSP-42-SS	42	73	19	M8X25
MSP-45-F	MSP-45-A	MSP-45-SS	45	73	19	M8X25
MSP-48-F	MSP-48-A	MSP-48-SS	48	78	19	M8X25
MSP-50-F	MSP-50-A	MSP-50-SS	50	78	19	M8X25
MSP-54-F	¡¡	MSP-54-SS	54	82	19	M8X25
MSP-55-F	¡¡	MSP-55-SS	55	82	19	M8X25
MSP-60-F	¡¡	MSP-60-SS	60	88	19	M8X25
MSP-65-F	¡¡	MSP-65-SS	65	93	19	M8X25
MSP-70-F	¡¡	MSP-70-SS	70	98	19	M8X25
MSP-75-F	¡¡	MSP-75-SS	75	103	19	M8X25
MSP-80-F	¡¡	MSP-80-SS	80	108	19	M8X25

China Shaft Collar manufacturer, Chinese Shaft Collar supplier, produce: Solid shaft Collars, Single and Double Split Collars, Threaded Bore Split Collars, Inch Series Shaft Collars, Metric Series Shaft Collars, Set Screw Style Collar. We can produce as per customer's drawing or sample. Please feel free to send us your detail enquiries. E-mail: [email protected]
