Product Description

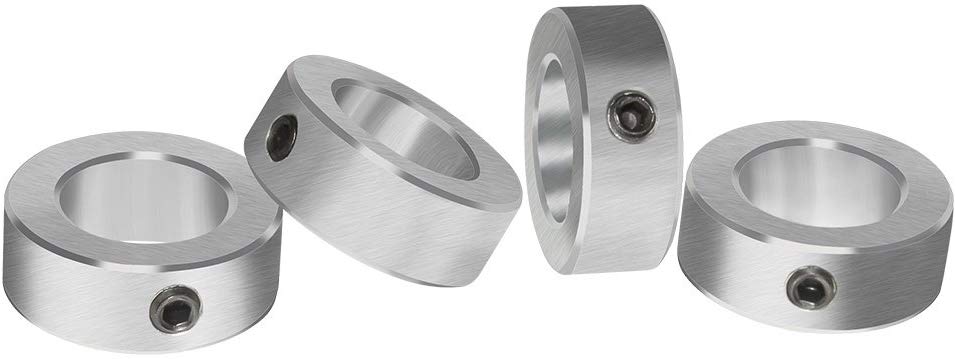

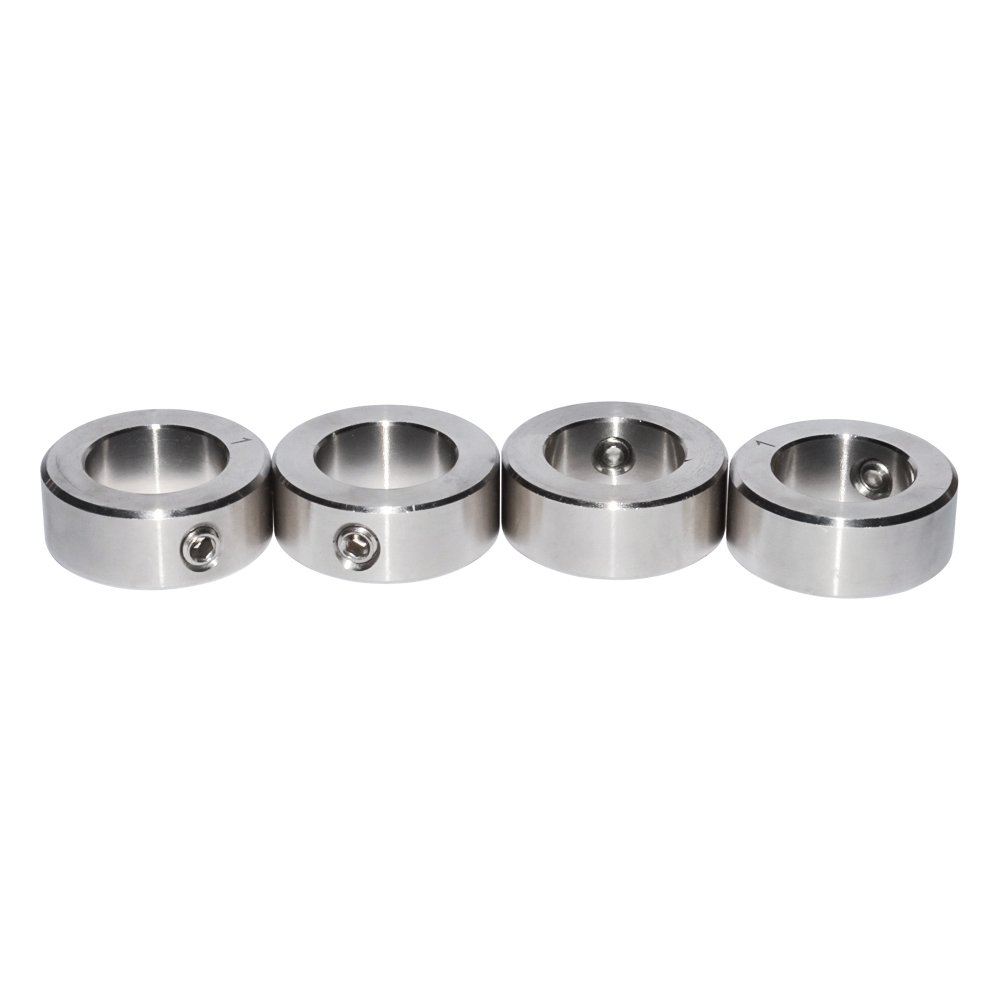

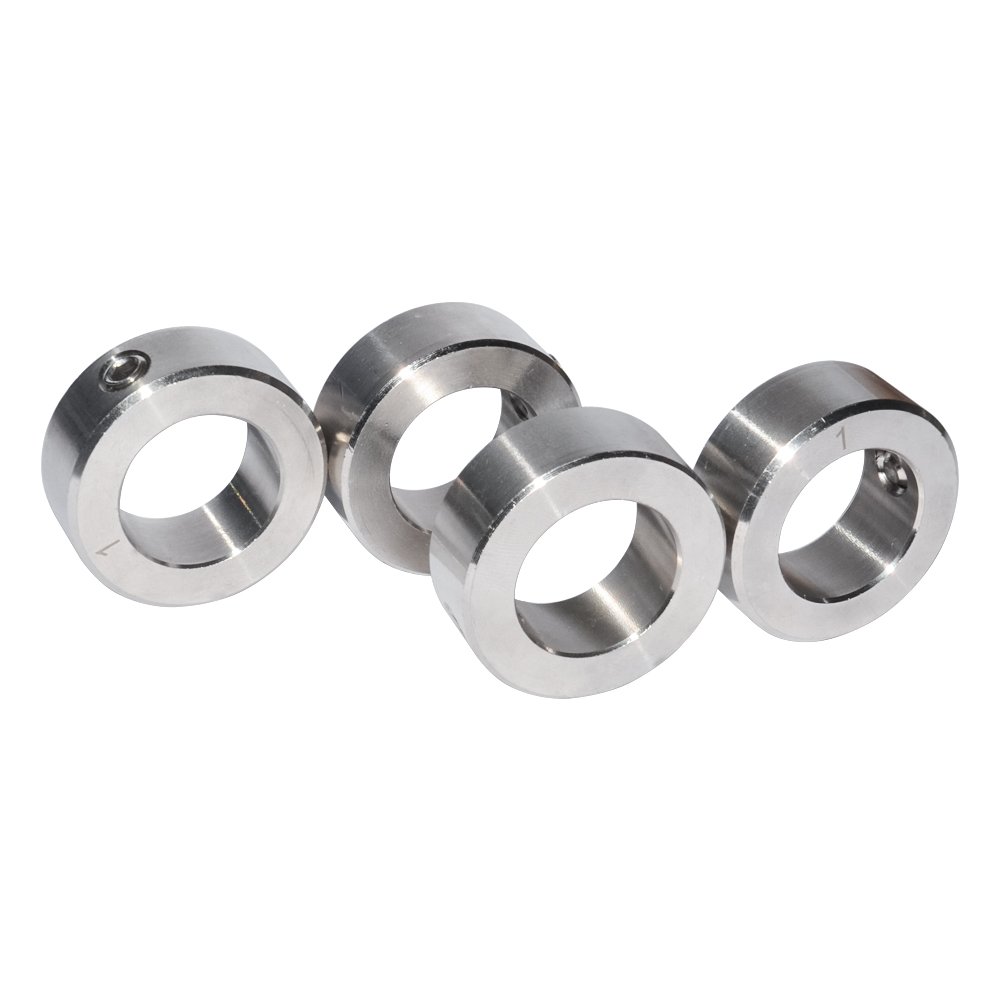

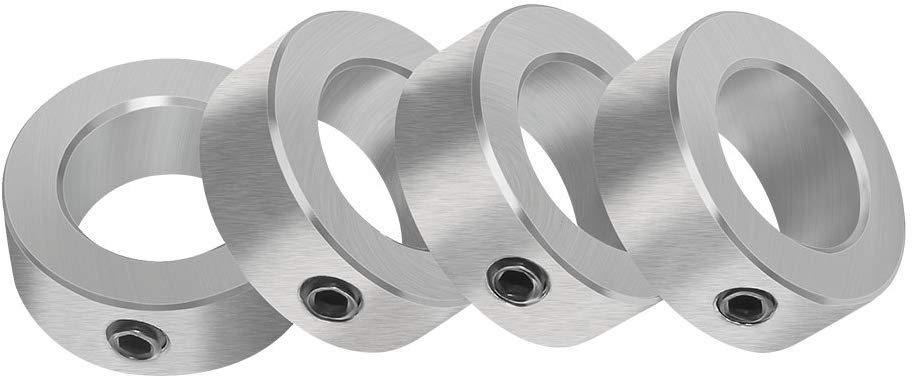

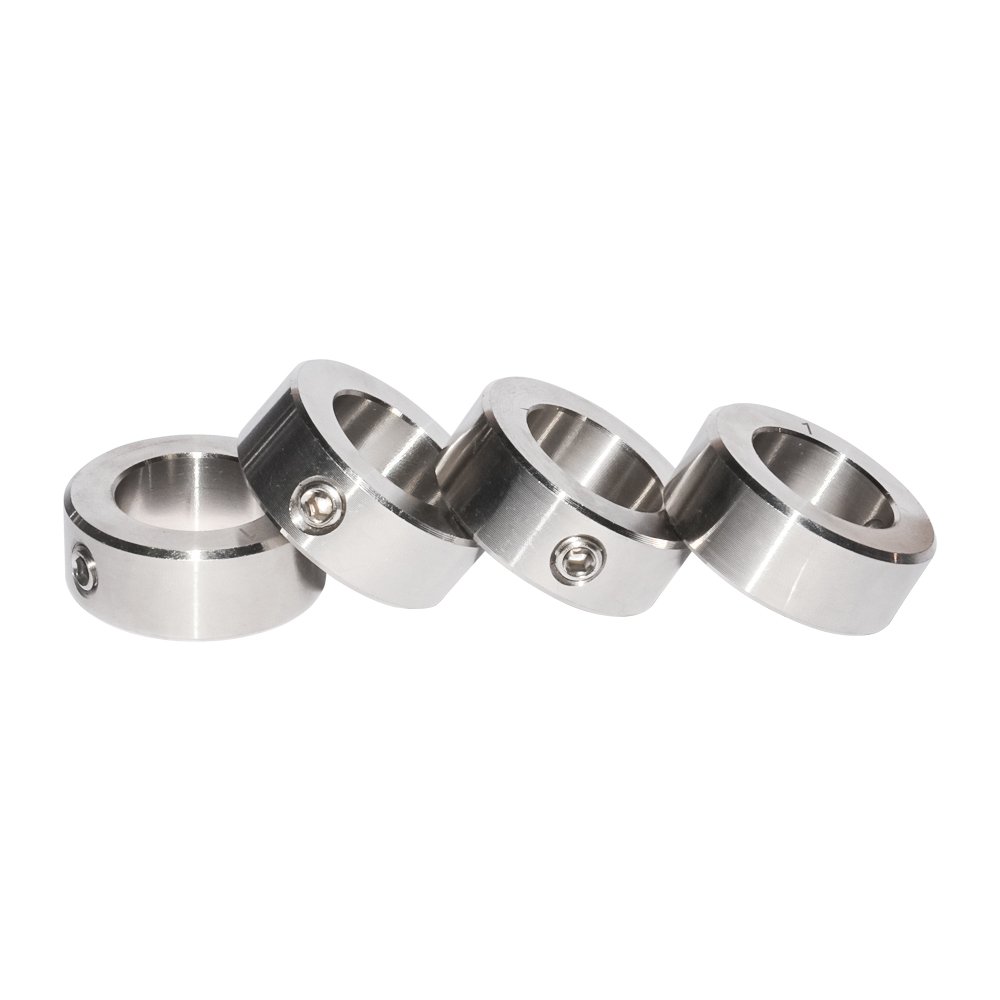

MSC:Set Screw Style Collar

PART No. STEEL	PART No. STAINLESS STEEL	BORE B (in)	OUTER DIAM. OD (mm)	WIDTH W (mm)	FORGED SET SCREW
MSC-4-F	MSC-4-SS	4	8	5	M2.5X3
MSC-5-F	MSC-5-SS	5	10	6	M3X4
MSC-6-F	MSC-6-SS	6	12	8	M4X4
MSC-8-F	MSC-8-SS	8	16	8	M4X4
MSC-10-F	MSC-10-SS	10	20	10	M5X5
MSC-12-F	MSC-12-SS	12	22	12	M6X6
MSC-14-F	MSC-14-SS	14	25	12	M6X6
MSC-15-F	MSC-15-SS	15	25	12	M6X6
MSC-16-F	MSC-16-SS	16	28	12	M6X8
MSC-18-F	MSC-18-SS	18	32	14	M6X8
MSC-20-F	MSC-20-SS	20	32	14	M6X8
MSC-22-F	MSC-22-SS	22	36	14	M6X8
MSC-25-F	MSC-25-SS	25	40	16	M8X8
MSC-28-F	MSC-28-SS	28	45	16	M8X10
MSC-30-F	MSC-30-SS	30	45	16	M8X8
MSC-32-F	MSC-32-SS	32	50	16	M8X10
MSC-35-F	MSC-35-SS	35	56	16	M8X12
MSC-38-F	MSC-38-SS	38	56	16	M8X10
MSC-40-F	MSC-40-SS	40	63	18	M10X12
MSC-45-F	MSC-45-SS	45	70	18	M10X12
MSC-50-F	MSC-50-SS	50	80	18	M10X16

China Shaft Collar manufacturer, Chinese Shaft Collar supplier, produce: Solid shaft Collars, Single and Double Split Collars, Threaded Bore Split Collars, Inch Series Shaft Collars, Metric Series Shaft Collars, Set Screw Style Collar. We can produce as per customer's drawing or sample. Please feel free to send us your detail enquiries. E-mail: [email protected]
