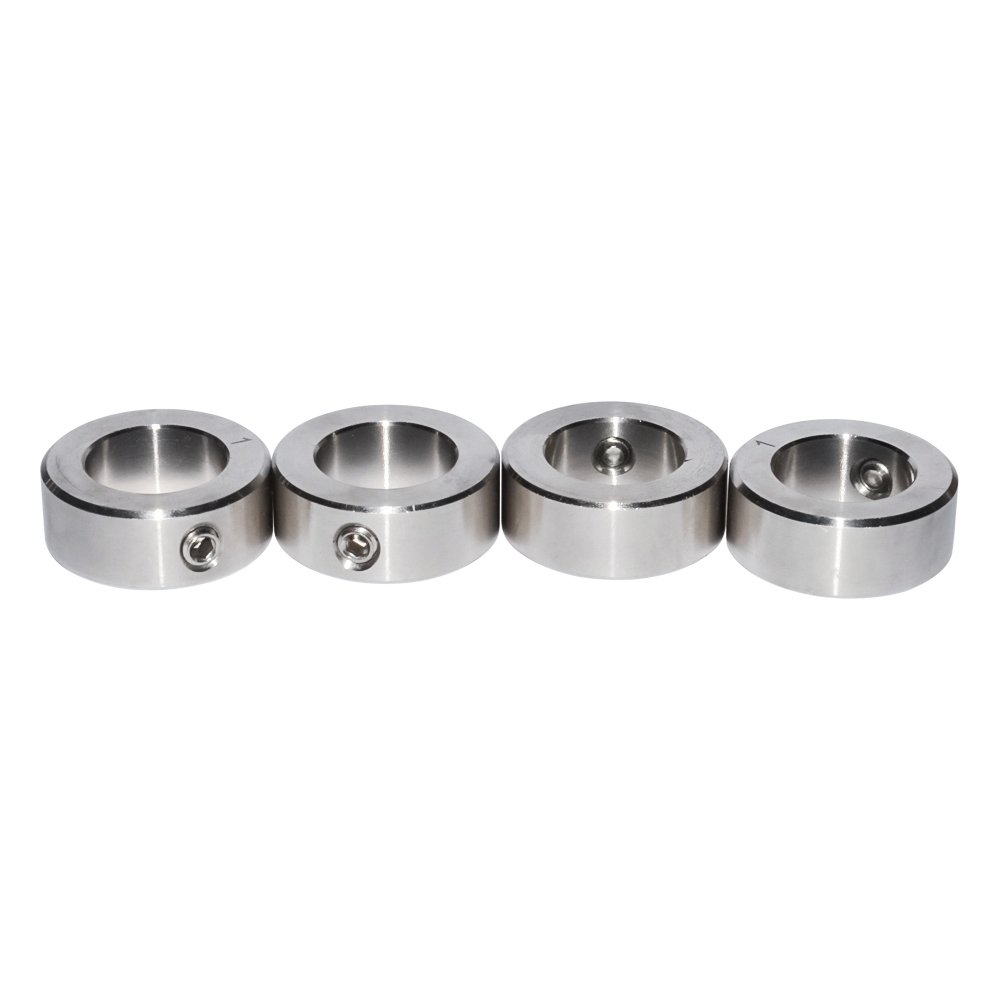

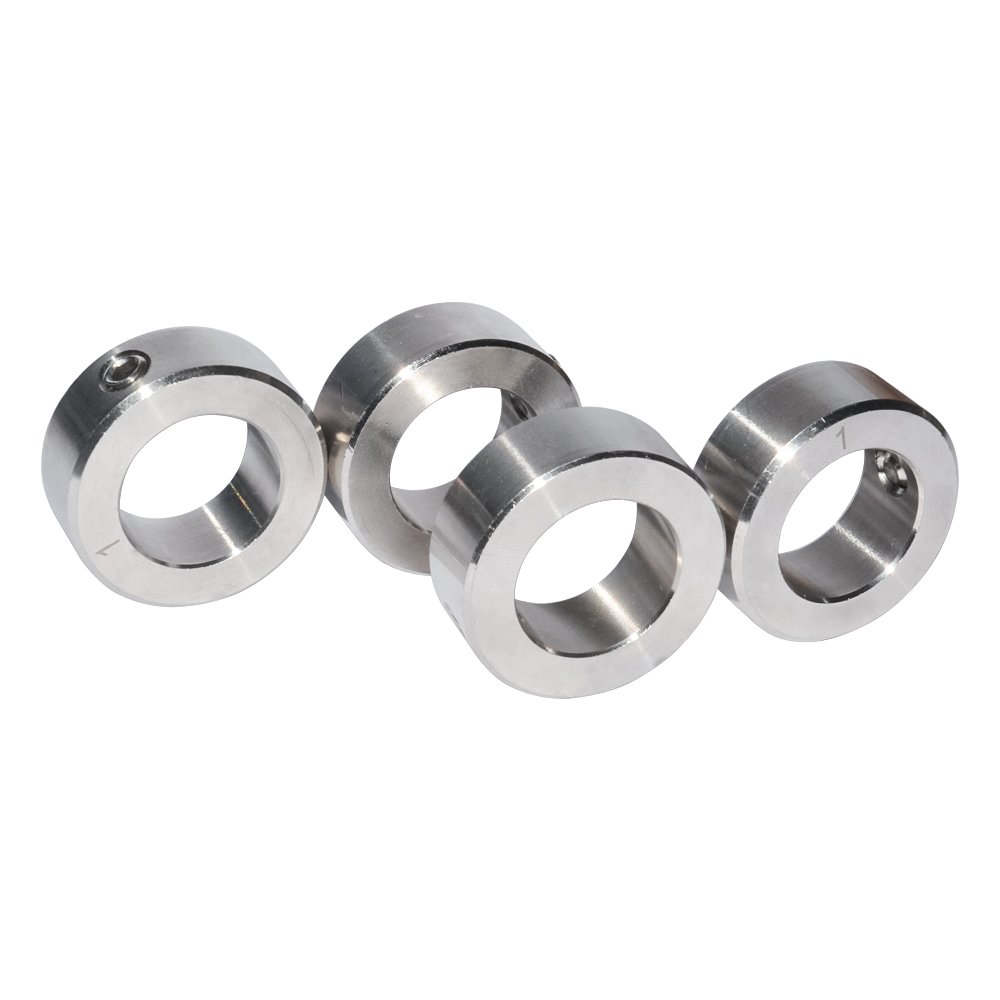

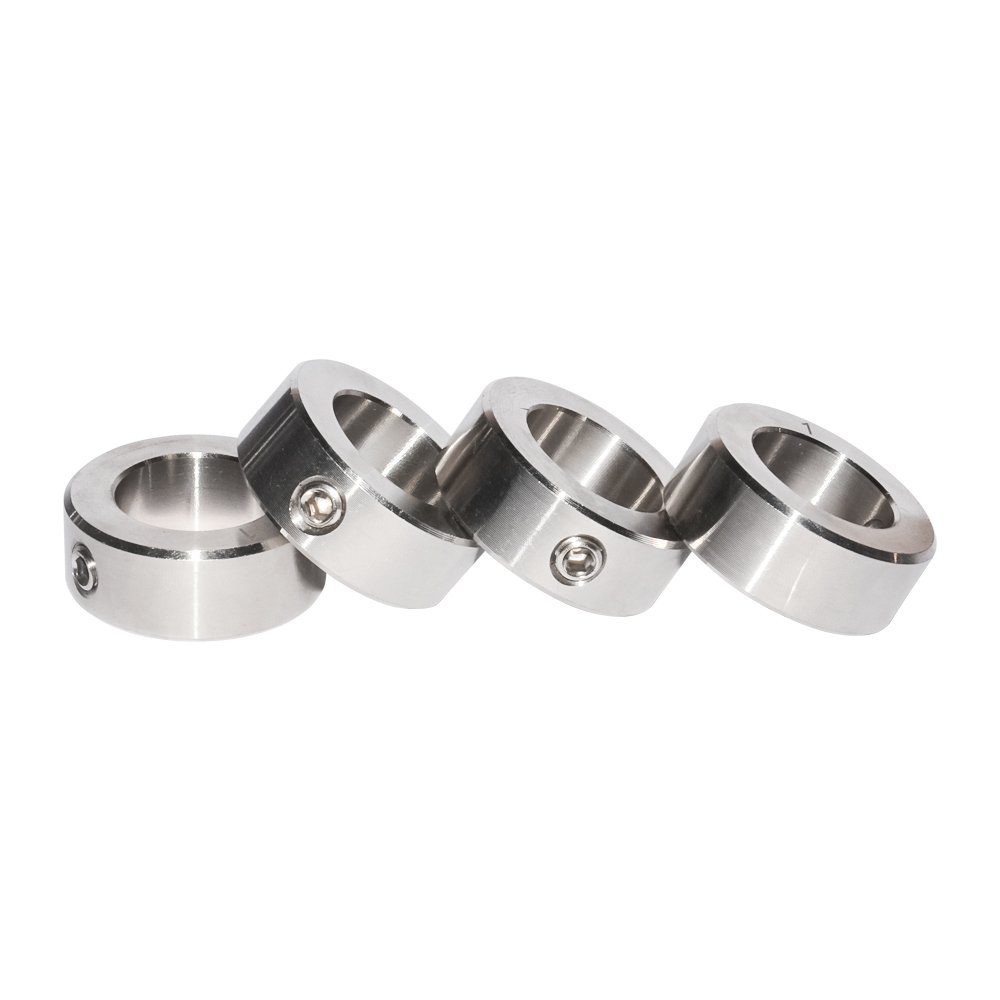

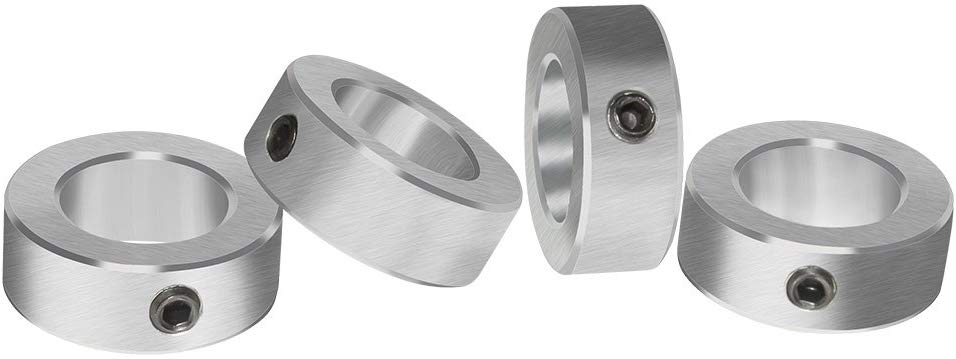

One-Piece Clamp Style Collar

Shaft Collars--Clamping Collar with One split PART NUMBER STEEL PART NUMBER ALUMINUM PART NUMBER STAINLESS STEEL OUTER DIAM. OD (in) WIDTH W (in) FORGED SET SCREW SCS-2-FL-2-F SCS-2-A SCS-2-SS 5/8 0.281 4-40X5/16 SCS-3-F SCS-3-A SCS-3-SS 5/8 0.281 4-40X5/16 SCS-4-F SCS......

Send Inquiry

Product Description

Shaft Collars--Clamping Collar with One split

PART NUMBER STEEL	PART NUMBER ALUMINUM	PART NUMBER STAINLESS STEEL	OUTER DIAM. OD (in)	WIDTH W (in)	FORGED SET SCREW
SCS-2-FL-2-F	SCS-2-A	SCS-2-SS	5/8	0.281	4-40X5/16
SCS-3-F	SCS-3-A	SCS-3-SS	5/8	0.281	4-40X5/16
SCS-4-F	SCS-4-A	SCS-4-SS	5/8	0.281	4-40X5/16
SCS-5-F	SCS-5-A	SCS-5-SS	11/16	0.281	4-40X5/16
SCS-6-F	SCS-6-A	SCS-6-SS	7/8	0.343	6-32X3/8
SCS-7-F	SCS-7-A	SCS-7-SS	15/16	0.343	6-32X3/8
SCS-8-F	SCS-8-A	SCS-8-SS	1.125	0.406	8-32X1/2
SCS-9-F	SCS-9-A	SCS-9-SS	1.25	0.437	10-32X1/2
SCS-10-F	SCS-10-A	SCS-10-SS	1.3125	0.437	10-32X1/2
SCS-11-F	SCS-11-A	SCS-11-SS	1.375	0.437	10-32X1/2
SCS-12-F	SCS-12-A	SCS-12-SS	1.5	0.5	1/4-28X5/8
SCS-13-F	SCS-13-A	SCS-13-SS	1.625	0.5	1/4-28X5/8
SCS-14-F	SCS-14-A	SCS-14-SS	1.625	0.5	1/4-28X5/8
SCS-15-F	SCS-15-A	SCS-15-SS	1.75	0.5	1/4-28X11/16
SCS-16-F	SCS-16-A	SCS-16-SS	1.75	0.5	1/4-28X11/16
SCS-17-F	SCS-17-A	SCS-17-SS	1.875	0.5	1/4-28X11/16
SCS-18-F	SCS-18-A	SCS-18-SS	1.875	0.5	1/4-28X11/16
SCS-19-F	SCS-19-A	SCS-19-SS	2.0625	0.5	1/4-28X11/16
SCS-20-F	SCS-20-A	SCS-20-SS	2.0625	0.5	1/4-28X11/16
SCS-21-F	SCS-21-A	SCS-21-SS	2.125	0.563	1/4-28X3/4
SCS-22-F	SCS-22-A	SCS-22-SS	2.25	0.563	1/4-28X3/4
SCS-23-F	SCS-23-A	SCS-23-SS	2.25	0.563	1/4-28X3/4
SCS-24-F	SCS-24-A	SCS-24-SS	2.375	0.563	1/4-28X3/4
SCS-25-F	SCS-25-A	SCS-25-SS	2.375	0.563	1/4-28X3/4
SCS-26-F	SCS-26-A	SCS-26-SS	2.625	0.688	5/16-24X7/8
SCS-27-F	SCS-27-A	SCS-27-SS	2.75	0.688	5/16-24X7/8
SCS-28-F	SCS-28-A	SCS-28-SS	2.75	0.688	5/16-24X7/8
SCS-29-F	SCS-29-A	SCS-29-SS	2.875	0.688	5/16-24X7/8
SCS-30-F	SCS-30-A	SCS-30-SS	2.875	0.688	5/16-24X7/8
SCS-31-F	SCS-31-A	SCS-31-SS	3	0.688	5/16-24X7/8
SCS-32-F	SCS-32-A	SCS-32-SS	3	0.688	5/16-24X7/8
SCS-33-F	SCS-33-A	SCS-33-SS	3.125	0.75	5/16-24X7/8
SCS-34-F	SCS-34-A	SCS-34-SS	3.25	0.75	5/16-24X7/8
SCS-35-F	SCS-35-A	SCS-35-SS	3.25	0.75	5/16-24X7/8
SCS-36-F	SCS-36-A	SCS-36-SS	3.25	0.75	5/16-24X7/8
SCS-37-F	SCS-37-A	SCS-37-SS	3.375	0.75	5/16-24X1
SCS-38-F	SCS-38-A	SCS-38-SS	3.5	0.75	5/16-24X1
SCS-39-F	SCS-39-A	SCS-39-SS	3.5	0.75	5/16-24X1
SCS-40-F	SCS-40-A	SCS-40-SS	3.75	0.875	3/8-24X1
SCS-41-F	SCS-41-A	SCS-41-SS	3.875	0.875	3/8-24X1
SCS-42-F	SCS-42-A	SCS-42-SS	3.875	0.875	3/8-24X1
SCS-43-F	SCS-43-A	SCS-43-SS	4	0.875	3/8-24X1
SCS-44-F	SCS-44-A	SCS-44-SS	4	0.875	3/8-24X1
SCS-45-F	SCS-45-A	SCS-45-SS	4.25	0.875	3/8-24X1 1/8
SCS-46-F	SCS-46-A	SCS-46-SS	4.25	0.875	3/8-24X1 1/8
SCS-47-F	SCS-47-A	SCS-47-SS	4.25	0.875	3/8-24X1 1/8
SCS-48-F	SCS-48-A	SCS-48-SS	4.25	0.875	3/8-24X1 1/8
Note: Sizes SCS-25 through SCS-48 do not have backslot.

China Shaft Collar manufacturer, Chinese Shaft Collar supplier, produce: Solid shaft Collars, Single and Double Split Collars, Threaded Bore Split Collars, Inch Series Shaft Collars, Metric Series Shaft Collars, Set Screw Style Collar. We can produce as per customer's drawing or sample. Please feel free to send us your detail enquiries. E-mail: [email protected]
