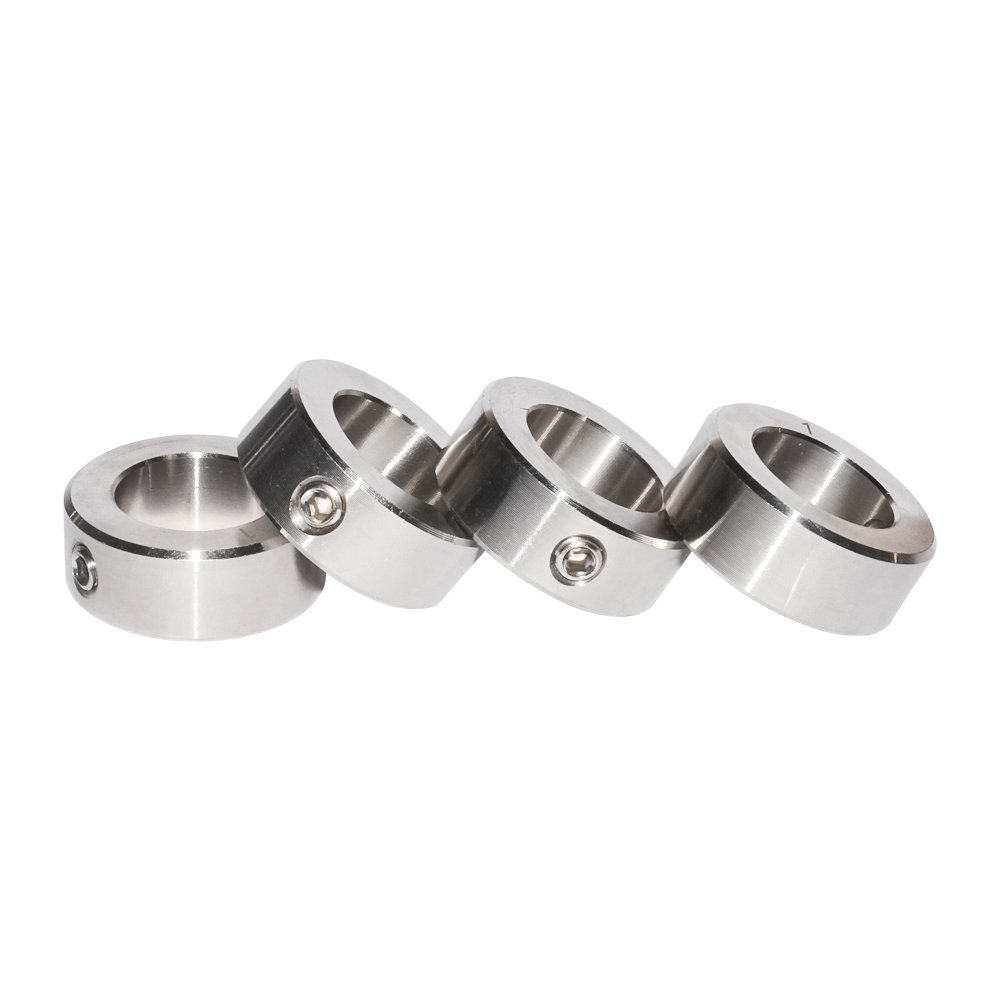

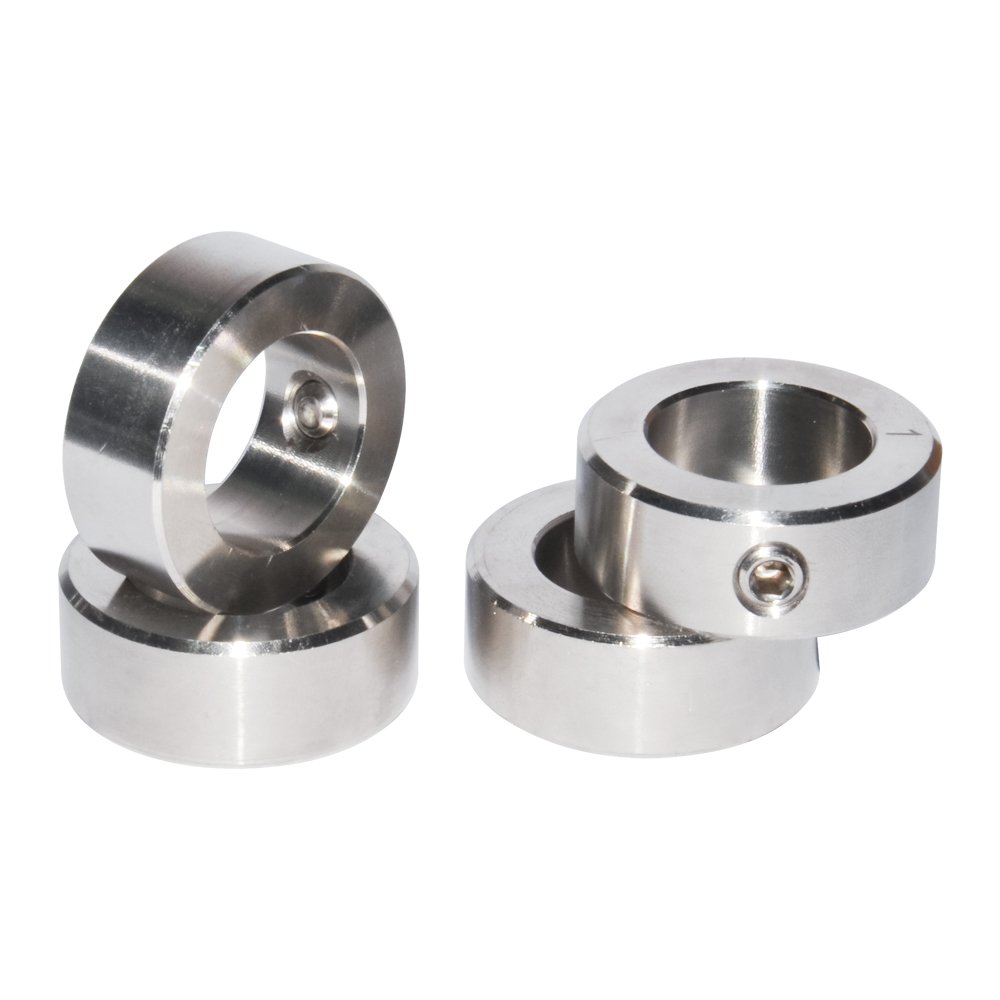

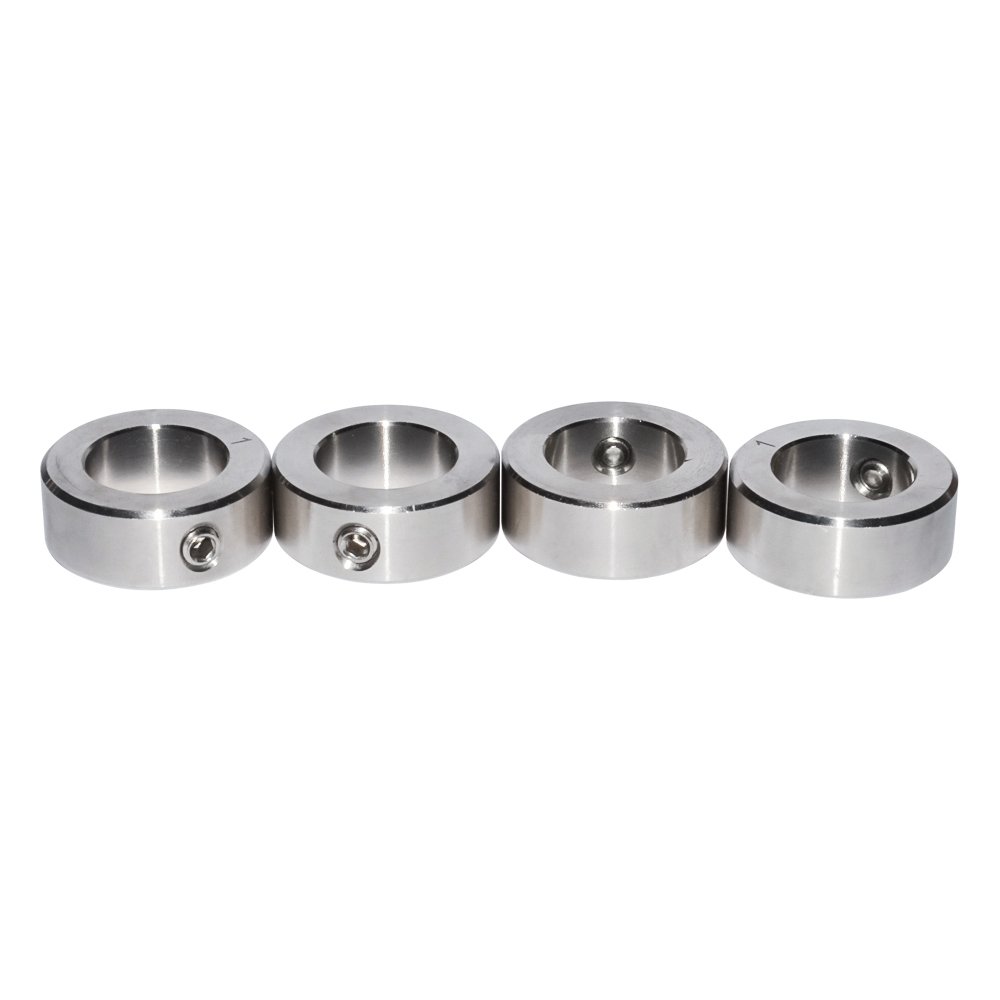

| Forged socket set screws | ||||||
| Width tolerance: +.003¡± - .010¡± | ||||||
| Bore tolerances for SC styles: | ||||||
| BORE | TOLERA | ¡¡ | ||||
| Up to 1¡± | +.0005¡± to | ¡¡ | ||||
| 1-1/16¡± to 3¡± | +.0005¡± to | ¡¡ | ||||
| 3-1/16¡± to 4¡± | +.0010¡± to | ¡¡ | ||||
| PART NUMBER STEEL | PART NUMBER ALUMINUM | PART NUMBER STAINLESS STEEL | BORE B (in) | OUTER DIAM. OD (in) | WIDTH W (in) | FORGED SET SCREW |
| SC-3-F | SC-3-A | SC-3-SS | 0.1875 | 7/16 | 0.25 | 8-32X1/8 |
| SC-4-F | SC-4-A | SC-4-SS | 0.25 | 1/2 | 0.281 | 8-32X1/8 |
| SC-5-F | SC-5-A | SC-5-SS | 0.3125 | 5/8 | 0.344 | 10-32X5/32 |
| SC-6-F | SC-6-A | SC-6-SS | 0.375 | 3/4 | 0.375 | 1/4-20X3/16 |
| SC-7-F | SC-7-A | SC-7-SS | 0.4375 | 7/8 | 0.438 | 1/4-20X1/4 |
| SC-8-F | SC-8-A | SC-8-SS | 0.5 | 1 | 0.438 | 1/4-20X1/4 |
| SC-9-F | SC-9-A | SC-9-SS | 0.5625 | 1 | 0.438 | 1/4-20X1/4 |
| SC-10-F | SC-10-A | SC-10-SS | 0.625 | 1.125 | 0.5 | 5/16-18X1/4 |
| SC-11-F | SC-11-A | SC-11-SS | 0.6875 | 1.25 | 0.563 | 5/16-18X1/4 |
| SC-12-F | SC-12-A | SC-12-SS | 0.75 | 1.25 | 0.563 | 5/16-18X1/4 |
| SC-13-F | SC-13-A | SC-13-SS | 0.8125 | 1.3125 | 0.563 | 5/16-18X1/4 |
| SC-14-F | SC-14-A | SC-14-SS | 0.875 | 1.5 | 0.563 | 5/16-18X5/16 |
| SC-15-F | SC-15-A | SC-15-SS | 0.9375 | 1.625 | 0.563 | 5/16-18X5/16 |
| SC-16-F | SC-16-A | SC-16-SS | 1 | 1.625 | 0.625 | 5/16-18X5/16 |
| SC-17-F | SC-17-A | SC-17-SS | 1.0625 | 1.75 | 0.625 | 5/16-18X5/16 |
| SC-18-F | SC-18-A | SC-18-SS | 1.125 | 1.75 | 0.625 | 5/16-18X5/16 |
| SC-19-F | SC-19-A | SC-19-SS | 1.1875 | 2 | 0.688 | 3/8-16X3/8 |
| SC-20-F | SC-20-A | SC-20-SS | 1.25 | 2 | 0.688 | 3/8-16X3/8 |
| SC-21-F | SC-21-A | SC-21-SS | 1.3125 | 2.125 | 0.688 | 3/8-16X3/8 |
| SC-22-F | SC-22-A | SC-22-SS | 1.375 | 2.125 | 0.75 | 3/8-16X3/8 |
| SC-23-F | SC-23-A | SC-23-SS | 1.4375 | 2.25 | 0.75 | 3/8-16X3/8 |
| SC-24-F | SC-24-A | SC-24-SS | 1.5 | 2.25 | 0.75 | 3/8-16X3/8 |
| SC-25-F | SC-25-A | SC-25-SS | 1.5625 | 2.5 | 0.813 | 3/8-16X3/8 |
| SC-26-F | SC-26-A | SC-26-SS | 1.625 | 2.5 | 0.813 | 3/8-16X3/8 |
| SC-27-F | SC-27-A | SC-27-SS | 1.6875 | 2.5 | 0.813 | 3/8-16X3/8 |
| SC-28-F | SC-28-A | SC-28-SS | 1.75 | 2.75 | 0.875 | 1/2-13X1/2 |
| SC-29-F | SC-29-A | SC-29-SS | 1.8125 | 2.75 | 0.875 | 1/2-13X1/2 |
| SC-30-F | SC-30-A | SC-30-SS | 1.875 | 2.75 | 0.875 | 1/2-13X1/2 |
| SC-31-F | SC-31-A | SC-31-SS | 1.9375 | 3 | 0.875 | 1/2-13X1/2 |
| SC-32-F | SC-32-A | SC-32-SS | 2 | 3 | 0.875 | 1/2-13X1/2 |
| SC-33-F | SC-33-A | SC-33-SS | 2.0625 | 3 | 0.875 | 1/2-13X1/2 |
| SC-34-F | SC-34-A | SC-34-SS | 2.125 | 3 | 0.875 | 1/2-13X1/2 |
| SC-35-F | SC-35-A | SC-35-SS | 2.1875 | 3.25 | 0.938 | 1/2-13X1/2 |
| SC-36-F | SC-36-A | SC-36-SS | 2.25 | 3.25 | 0.938 | 1/2-13X1/2 |
| SC-37-F | SC-37-A | SC-37-SS | 2.3125 | 3.375 | 0.938 | 1/2-13X1/2 |
| SC-38-F | SC-38-A | SC-38-SS | 2.375 | 3.5 | 0.938 | 1/2-13X1/2 |
| SC-39-F | SC-39-A | SC-39-SS | 2.4375 | 3.5 | 1 | 1/2-13X1/2 |
| SC-40-F | SC-40-A | SC-40-SS | 2.5 | 3.75 | 1 | 1/2-13X1/2 |
| SC-41-F | SC-41-A | SC-41-SS | 2.5625 | 3.75 | 1.125 | 1/2-13X9/16 |
| SC-42-F | SC-42-A | SC-42-SS | 2.625 | 3.75 | 1.125 | 1/2-13X9/16 |
| SC-43-F | SC-43-A | SC-43-SS | 2.6875 | 4 | 1.125 | 1/2-13X5/8 |
| SC-44-F | SC-44-A | SC-44-SS | 2.75 | 4 | 1.125 | 1/2-13X5/8 |
| SC-45-F | SC-45-A | SC-45-SS | 2.8125 | 4.25 | 1.125 | 1/2-13X5/8 |
| SC-46-F | SC-46-A | SC-46-SS | 2.875 | 4.25 | 1.125 | 1/2-13X5/8 |
| SC-47-F | SC-47-A | SC-47-SS | 2.9375 | 4.25 | 1.125 | 1/2-13X5/8 |
| SC-48-F | SC-48-A | SC-48-SS | 3 | 4.25 | 1.125 | 1/2-13X5/8 |
| SC-49-F | SC-49-A | SC-49-SS | 3.0625 | 4.5 | 1.125 | 1/2-13X5/8 |
| SC-50-F | SC-50-A | SC-50-SS | 3.125 | 4.5 | 1.125 | 1/2-13X5/8 |
| SC-51-F | SC-51-A | SC-51-SS | 3.1875 | 4.5 | 1.125 | 1/2-13X5/8 |
| SC-52-F | SC-52-A | SC-52-SS | 3.25 | 4.5 | 1.125 | 1/2-13X5/8 |
| SC-53-F | SC-53-A | SC-53-SS | 3.3125 | 4.75 | 1.125 | 1/2-13X5/8 |
| SC-54-F | SC-54-A | SC-54-SS | 3.375 | 4.75 | 1.125 | 1/2-13X5/8 |
| SC-55-F | SC-55-A | SC-55-SS | 3.4375 | 4.75 | 1.125 | 1/2-13X5/8 |
| SC-56-F | SC-56-A | SC-56-SS | 3.5 | 4.75 | 1.125 | 1/2-13X5/8 |
| SC-57-F | SC-57-A | SC-57-SS | 3.5625 | 5 | 1.125 | 1/2-13X5/8 |
| SC-58-F | SC-58-A | SC-58-SS | 3.625 | 5 | 1.125 | 1/2-13X5/8 |
| SC-59-F | SC-59-A | SC-59-SS | 3.6875 | 5 | 1.125 | 1/2-13X5/8 |
| SC-60-F | SC-60-A | SC-60-SS | 3.75 | 5 | 1.125 | 1/2-13X5/8 |
| SC-61-F | SC-61-A | SC-61-SS | 3.8125 | 5.25 | 1.125 | 1/2-13X5/8 |
| SC-62-F | SC-62-A | SC-62-SS | 3.875 | 5.25 | 1.125 | 1/2-13X5/8 |
| SC-63-F | SC-63-A | SC-63-SS | 3.9375 | 5.25 | 1.125 | 1/2-13X5/8 |
| SC-64-F | SC-64-A | SC-64-SS | 4 | 5.25 | 1.125 | 1/2-13X5/8 |
