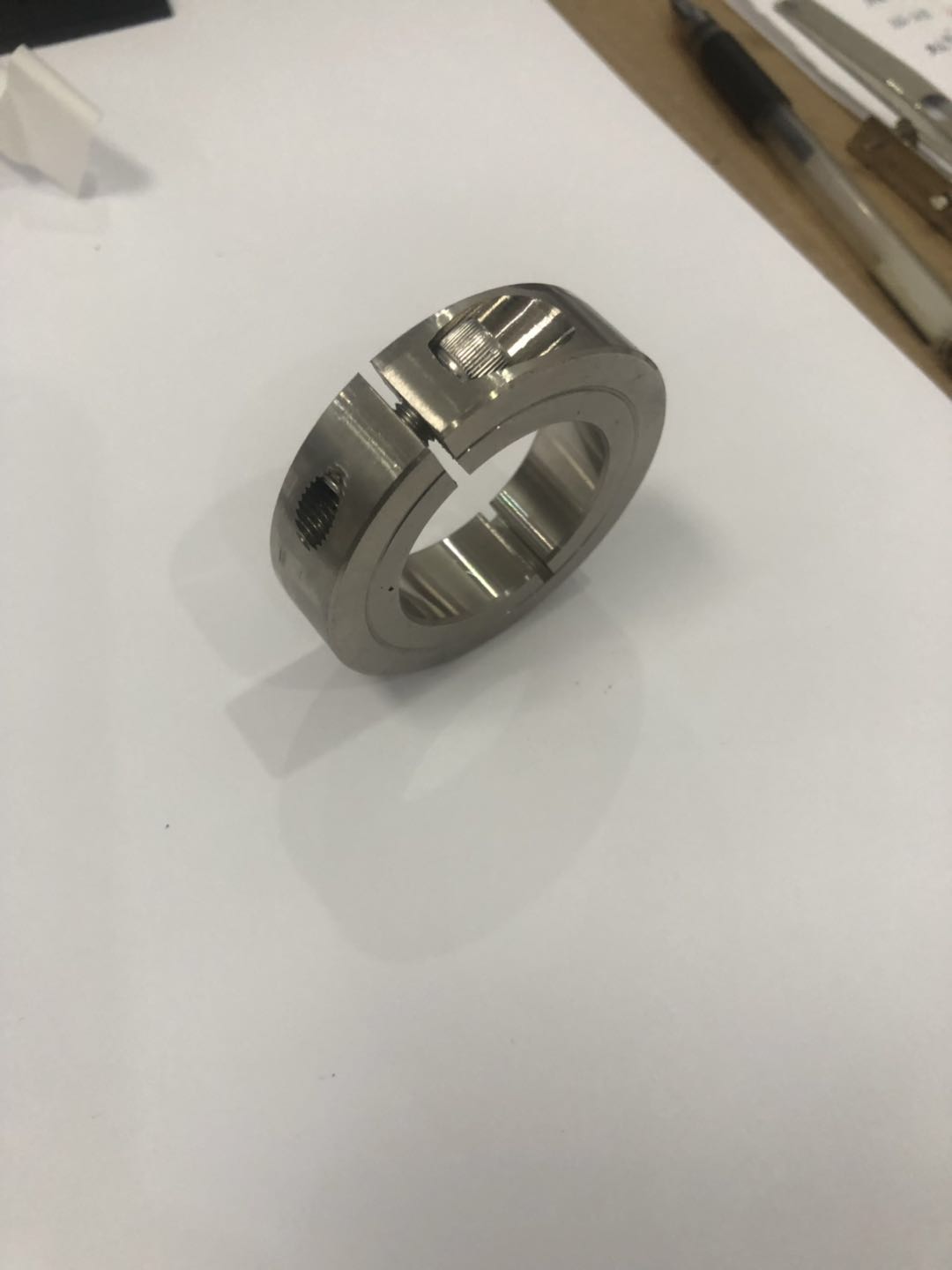

MCL:One-Piece Clamp Style Collar

MCL:One-Piece Clamp Style Collar PART NUMBER STEELPART NUMBER ALUMINUMPART NUMBER STAINLESS STEELBORE B (mm)OUTER DIAM. OD (mm)WIDTH W (mm)FORGED SET SCREWMCL-3-FMCL-3-AMCL-3-SS3169M3X8MCL-4-FMCL-4-AMCL-4-SS4169M3X8MCL-5-FMCL-5-AMCL-5-SS5169M3X8MCL-6-FMCL-6-AMCL-6-SS6169M3X8MCL-7-FMCL-7-AMCL-7-SS718......

Send Inquiry

Product Description

PART NUMBER STEEL	PART NUMBER ALUMINUM	PART NUMBER STAINLESS STEEL	BORE B (mm)	OUTER DIAM. OD (mm)	WIDTH W (mm)	FORGED SET SCREW
MCL-3-F	MCL-3-A	MCL-3-SS	3	16	9	M3X8
MCL-4-F	MCL-4-A	MCL-4-SS	4	16	9	M3X8
MCL-5-F	MCL-5-A	MCL-5-SS	5	16	9	M3X8
MCL-6-F	MCL-6-A	MCL-6-SS	6	16	9	M3X8
MCL-7-F	MCL-7-A	MCL-7-SS	7	18	9	M3X8
MCL-8-F	MCL-8-A	MCL-8-SS	8	18	9	M3X8
MCL-9-F	MCL-9-A	MCL-9-SS	9	24	9	M3X10
MCL-10-F	MCL-10-A	MCL-10-SS	10	24	9	M3X10
MCL-11-F	MCL-11-A	MCL-11-SS	11	28	11	M4X12
MCL-12-F	MCL-12-A	MCL-12-SS	12	28	11	M4X12
MCL-13-F	MCL-13-A	MCL-13-SS	13	30	11	M4X14
MCL-14-F	MCL-14-A	MCL-14-SS	14	30	11	M4X14
MCL-15-F	MCL-15-A	MCL-15-SS	15	34	13	M5X16
MCL-16-F	MCL-16-A	MCL-16-SS	16	34	13	M5X16
MCL-17-F	MCL-17-A	MCL-17-SS	17	36	13	M5X16
MCL-18-F	MCL-18-A	MCL-18-SS	18	36	13	M5X16
MCL-19-F	MCL-19-A	MCL-19-SS	19	40	15	M6X16
MCL-20-F	MCL-20-A	MCL-20-SS	20	40	15	M6X16
MCL-21-F	MCL-21-A	MCL-21-SS	21	42	15	M6X16
MCL-22-F	MCL-22-A	MCL-22-SS	22	42	15	M6X16
MCL-23-F	MCL-23-A	MCL-23-SS	23	45	15	M6X16
MCL-24-F	MCL-24-A	MCL-24-SS	24	45	15	M6X16
MCL-25-F	MCL-25-A	MCL-25-SS	25	45	15	M6X16
MCL-26-F	MCL-26-A	MCL-26-SS	26	48	15	M6X16
MCL-28-F	MCL-28-A	MCL-28-SS	28	48	15	M6X16
MCL-30-F	MCL-30-A	MCL-30-SS	30	54	15	M6X18
MCL-32-F	MCL-32-A	MCL-32-SS	32	54	15	M6X18
MCL-34-F	MCL-34-A	MCL-34-SS	34	57	15	M6X18
MCL-35-F	MCL-35-A	MCL-35-SS	35	57	15	M6X18
MCL-36-F	MCL-36-A	MCL-36-SS	36	57	15	M6X18
MCL-38-F	MCL-38-A	MCL-38-SS	38	60	15	M6X18
MCL-40-F	MCL-40-A	MCL-40-SS	40	60	15	M6X18
MCL-42-F	MCL-42-A	MCL-42-SS	42	73	19	M8X25
MCL-45-F	MCL-45-A	MCL-45-SS	45	73	19	M8X25
MCL-48-F	MCL-48-A	MCL-48-SS	48	78	19	M8X25
MCL-50-F	MCL-50-A	MCL-50-SS	50	78	19	M8X25
MCL-54-F	¡¡	MCL-54-SS	54	82	19	M8X25
MCL-55-F	¡¡	MCL-55-SS	55	82	19	M8X25
MCL-60-F	¡¡	MCL-60-SS	60	88	19	M8X25
MCL-65-F	¡¡	MCL-65-SS	65	93	19	M8X25
MCL-70-F	¡¡	MCL-70-SS	70	98	19	M8X25
MCL-75-F	¡¡	MCL-75-SS	75	103	19	M8X25
MCL-80-F	¡¡	MCL-80-SS	80	108	19	M8X25

China Shaft Collar manufacturer, Chinese Shaft Collar supplier, produce: Solid shaft Collars, Single and Double Split Collars, Threaded Bore Split Collars, Inch Series Shaft Collars, Metric Series Shaft Collars, Set Screw Style Collar. We can produce as per customer's drawing or sample. Please feel free to send us your detail enquiries. E-mail: [email protected]
