Locking Assembly For Narrow Space 21

Raydafon Group's Locking Assembly For Narrow Space 21 is a precision-engineered solution for secure fastening in tight areas, offering superior durability and ease of use for professionals in construction and manufacturing. Its innovative design ensures reliable performance, saving time and enhancing safety—perfect for those seeking efficiency and peace of mind in challenging workspaces.

Send Inquiry

Product Description

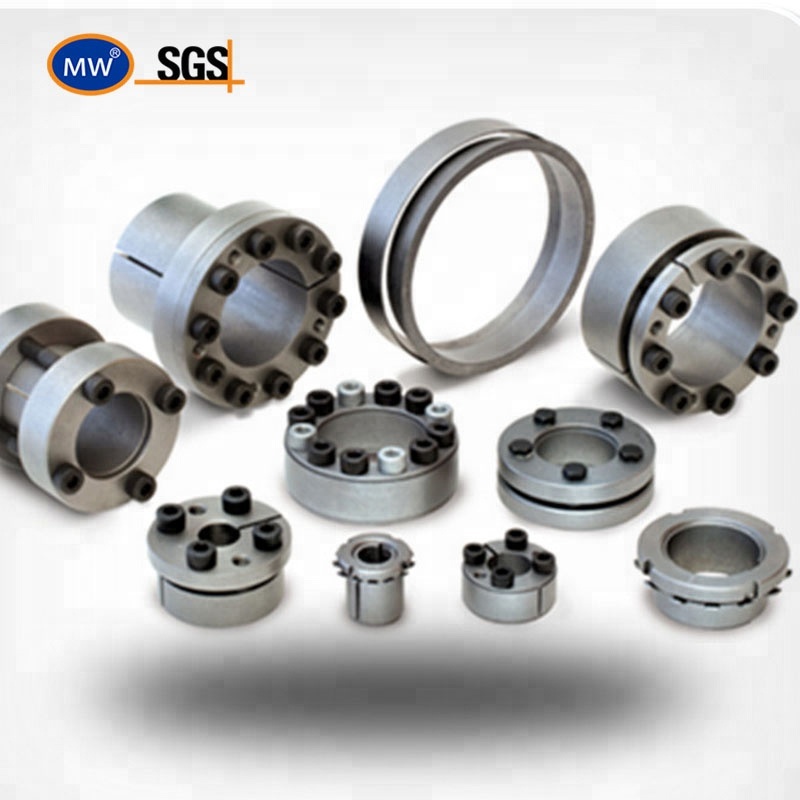

Locking Assembly For Narrow Space 21 Locking Assembly For Narrow Space 21 LOCKS.pdf

Keyless Locking Devices

THE DIMENSION TO FIX (SUGGESTION):

SHAFT: h8

HUB: H8

DIMENSIONS											Axial force	Torque	Contact_Pressure		Locking Screws DIN912-12.9
DIMENSIONS											Axial force	Torque	haft	Hub	Qty	Size	Tihtening Torque
?d mm	?D mm	L1 mm	L2 mm	L3 mm	L mm	D1	D2	H mm	H1 mm	H2 mm	KN	NM	P N/mm	P1 N/mm	Qty.	Size	Ts Nm
15	25					32		31	20		9	77	91	55	1	M20x1	95
18	30					38		33	21		13	125	98	59	1	M25x1.5	160
19	30					38		33	21		13	132	93	59	1	M25x1.5	160
20	30					38		33	21		13	139	88	59	1	M25x1.5	160
24	35					45		38	25		15	202	74	51	1	M30x1.5	220
25	35					45		38	25		15	210	71	51	1	M30x1.5	220
28	40					52		44	28		20	312	76	53	1	M35x1.5	340
30	40					52		44	28		20	335	71	53	1	M35x1.5	340
35	45					58		45	28		25	483	75	58	1	M40x1.5	480
40	50					65		46	28		31	696	82	66	1	M45x1.5	680
45	55					70		47	28		36	902	84	69	1	M50x1.5	870
50	60					75		47	28		37	1014	77	64	1	M55x2	970
55	65					80		48	28		38	1158	73	61	1	M60x2	1100
60	70					85		50	28		41	1379	73	62	1	M65x2	1300

China Locking Assembly manufacturer, chinese Locking Assembly supplier, produce:power locks,Locking Assembly.We can produce as per customer's drawing or sample. Please feel free to send us your detail enquiries. E-mail: [email protected]

Hot Tags: Locking Assembly For Narrow Space 21, Locking Assembly For Narrow Space 21 products,Raydafon Technology Group Co.,Limited
