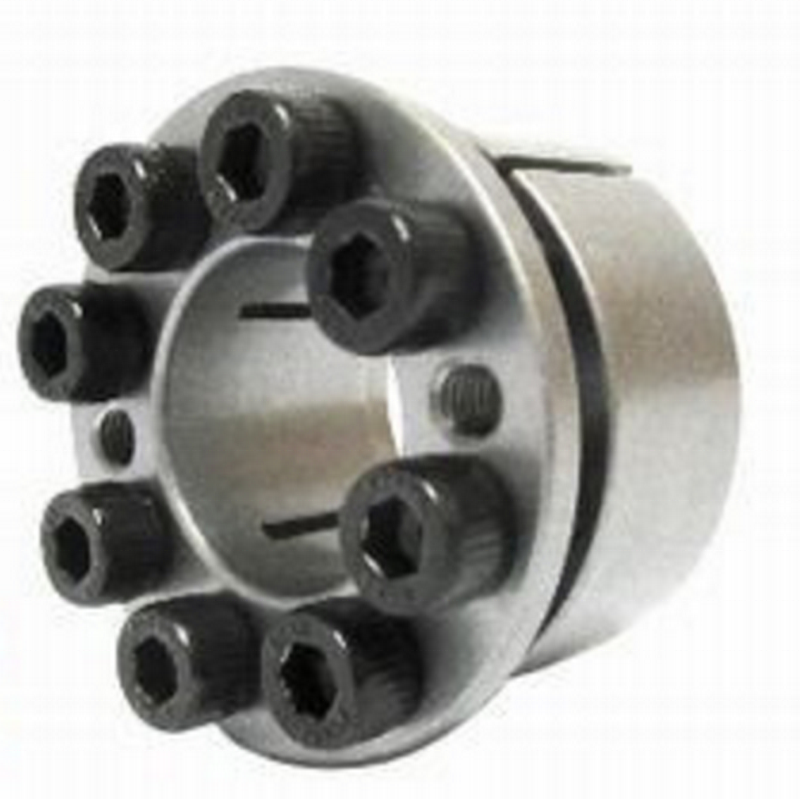

Keyless Locking Devices 16LOCKS.pdf

THE DIMENSION TO FIX (SUGGESTION):

SHAFT: h8

HUB: H8

DIMENSIONS											Axial force	Torque	Contact_Pressure		Locking Screws DIN912-12.9
DIMENSIONS											Axial force	Torque	haft	Hub	Qty	Size	TihteningTorque
?d mm	?D mm	L1 mm	L2 mm	L3 mm	L mm	D1	D2	H mm	H1 mm	H2 mm	KN	NM	P N/mm	P1 N/mm	Qty.	Size	Ts Nm
100	138							45	35		167	8340	108	79	10	M10x30	81
16	40							24	18		23	210	83	74	4	M6x16	17
16	32							24	18		9	72	83	41	4	M4x16	5.1
19	41							24	18		23	222	155	72	4	M6x16	17
20	42							24	18		23	233	147	70	4	M6x16	17
22	44							24	18		23	257	134	67	4	M6x16	17
24	46							24	18		35	420	184	96	6	M6x16	17
25	47							24	18		35	438	177	94	6	M6x16	17
28	50							24	18		35	490	158	88	6	M6x16	17
30	52							24	18		35	525	147	85	6	M6x16	17
32	54							24	18		35	560	138	82	6	M6x16	17
35	57							28	21.5		26	610	135	80	6	M6x18	17
36	58							28	21.5		35	630	103	64	8	M6x18	17
38	60							28	21.5		35	665	97	62	8	M6x18	17
40	62							28	21.5		35	700	93	60	8	M6x18	17
42	70							36	28		82	1730	159	96	8	M8x25	40
45	73							36	28		82	1853	149	92	8	M8x25	40
48	76							36	28		82	1977	139	88	8	M8x25	40
50	78							36	28		82	2059	134	86	8	M8x25	40
55	83							36	28		94	2589	139	92	8	M8x25	40
60	88							36	28		94	2824	127	87	8	M8x25	40
65	93							45	35		94	3060	94	66	8	M8x25	40
70	105							45	35		133	4671	124	83	8	M10x30	81
75	110							45	35		133	5004	116	79	8	M10x30	81
80	115							45	35		150	6005	122	85	8	M10x30	81
85	120							45	35		167	7089	127	90	10	M10x30	81
90	125							45	35		167	7506	120	87	10	M10x30	81
