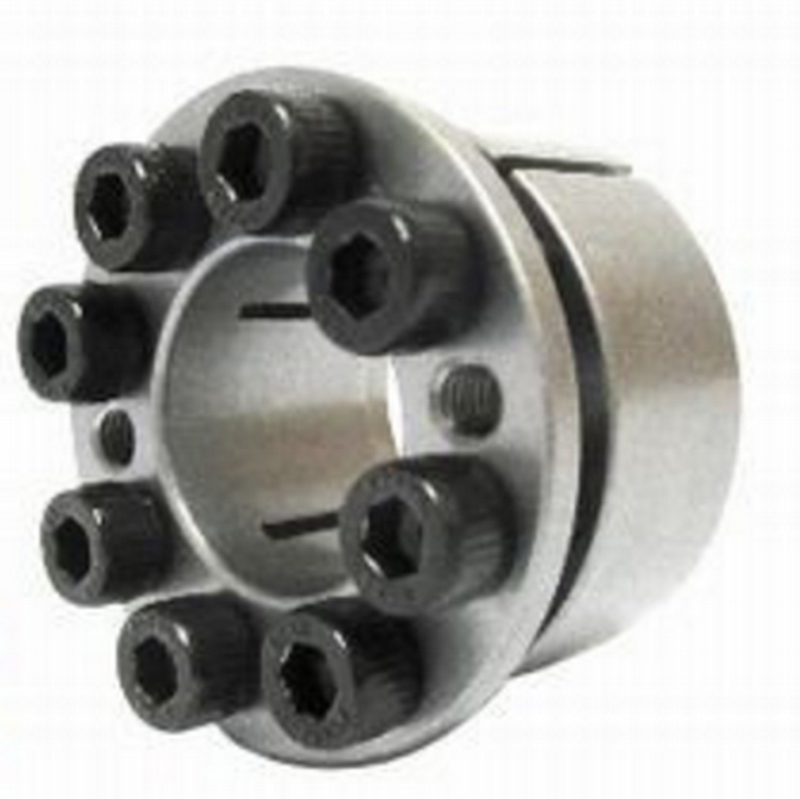

Locking Assembly For Fixing Shaft 02

Raydafon Group's Locking Assembly For Fixing Shaft 02 ensures secure, reliable shaft fixation with premium materials and innovative design. Ideal for engineers and industrial users, it solves alignment issues, boosting efficiency and confidence. Outperform competitors with unmatched durability and ease of use—upgrade your setup today!

Send Inquiry

Product Description

Locking Assembly For Fixing Shaft 02LOCKS.pdf

Keyless Locking Devices

THE DIMENSION TO FIX (SUGGESTION):

SHAFT: h8

HUB: H8

DIMENSIONS											Axial force	Torque	Contact_Pressure		Locking Screws DIN912-12.9
DIMENSIONS											Axial force	Torque	haft	Hub	Qty	Size	Tihtening Torque
?d mm	?D mm	L1 mm	L2 mm	L3 mm	L mm	D1	D2	H mm	H1 mm	H2 mm	KN	NM	P N/mm	P1 N/mm	Qty.	Size	Ts Nm
10	16	31	23	27	31	28	32				9	40	140	90	4	M4x12	5.2
100	125	114	89	102	114	153	162				348	14520	114	91	12	M12x30	145
11	18	31	23	27	31	30	34				9	50	174.8	106.8	4	M4x12	5.2
110	140	119	94	107	119	168	177				348	15972	96	75	12	M12x30	145
12	18	31	23	27	31	30	34				9	55	160.8	106.8	4	M4x12	5.2
120	155	139	114	127	139	185	195				465	23232	91	71	16	M12x30	145
130	165	139	114	127	139	195	205				465	25168	84	66	16	M12x30	145
14	23	31	23	27	31	35	39				9	64	137.4	83.6	4	M4x12	5.2
140	175	139	114	127	139	205	215				465	27104	78	63	16	M12x30	145
15	24	42	29	36	42	40	45				13	99	161.8	101.2	3	M6x18	17
150	185	139	114	127	139	215	225				465	29041	73	59	16	M12x30	145
16	24	42	29	36	42	40	45				13	105	151.7	101.2	3	M6x18	17
18	26	44	31	38	44	42	47				18	158	159.8	110.7	4	M6x18	17
19	27	44	31	38	44	43	48				18	167	151.4	106.6	4	M6x18	17
20	28	44	31	38	44	44	49				21	176	143.9	102.8	4	M6x18	17
22	32	51	38	45	51	48	54				21	232	112.8	77.6	4	M6x18	17
24	34	51	38	45	51	50	56				21	253	103.4	73	4	M6x18	17
25	34	51	38	45	51	50	56				21	263	99.3	73	4	M6x18	17
28	39	51	38	45	51	55	61				31	368	110.8	79.6	5	M6x18	17
30	41	51	38	45	51	57	63				31	474	124.1	90.8	6	M6x18	17
32	43	56	43	50	56	59	65				31	505	97	72.2	6	M6x18	17
35	47	56	43	50	56	63	69				42	737	118.9	88	8	M6x18	17
38	50	56	43	50	56	66	72				42	800	108.9	82.8	8	M6x18	17
40	53	58	45	52	58	69	75				53	947	109.1	82.3	9	M6x18	17
42	55	58	45	52	58	71	77				53	994	103.9	79.3	9	M6x18	17
45	59	72	56	64	72	79	85				78	1750	127.4	97.2	8	M8x22	42
48	62	72	56	64	72	82	88				78	1867	119.5	92.5	8	M8x22	42
50	65	82	66	74	82	85	92				97	2431	114.7	98.2	10	M8x22	42
55	71	82	66	74	82	91	98				97	2674	104.3	80.8	10	M8x22	42
60	77	82	66	74	82	97	104				97	2917	95.6	74.5	10	M8x22	42
65	84	82	66	74	82	104	111				97	3160	88.2	68.8	10	M8x22	42
70	90	101	80	91	101	115	122				123	4322	86.7	67.4	8	M10x25	84
75	95	101	80	91	101	119	126				197	6171	93	74	9	M10x25	84
8	15	28	21	24	28	28	32				7.19	30	190	105	4	M4x10	5.2
80	100	106	85	96	106	124	131				237	7899	97	77	12	M10x25	84
85	106	106	85	96	106	130	137				237	8393	91	73	12	M10x25	84
9	16	31	23	27	31	28	32				7.19	32	150	92	4	M4x12	5.2
90	112	106	85	96	106	136	143				276	10367	100	51	14	M10x25	84
95	120	106	85	96	106	144	153				276	10943	95	75	14	M10x25	84

China Locking Assembly manufacturer, chinese Locking Assembly supplier, produce:power locks,Locking Assembly.We can produce as per customer's drawing or sample. Please feel free to send us your detail enquiries. E-mail: [email protected]
