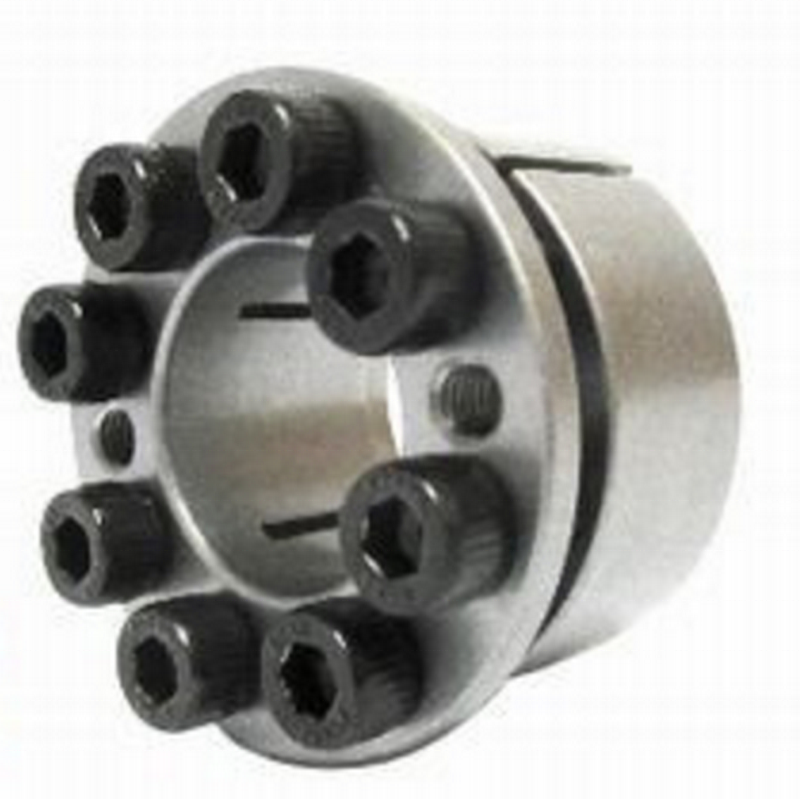

Locking Assembly For Fixing Shaft 07

Raydafon Group's Locking Assembly For Fixing Shaft 07 securely fastens shafts with precision engineering, ideal for industrial users seeking reliable performance and enhanced safety. Experience seamless operation and peace of mind in demanding applications.

Send Inquiry

Product Description

Locking Assembly For Fixing Shaft 07LOCKS.pdf

Keyless Locking Devices

THE DIMENSION TO FIX (SUGGESTION):

SHAFT: h8

HUB: H8

DIMENSIONS											Axial force	Torque	Contact_Pressure		Locking Screws DIN912-12.9
DIMENSIONS											Axial force	Torque	haft	Hub	Qty	Size	Tihtening Torque
?d mm	?D mm	L1 mm	L2 mm	L3 mm	L mm	D1	D2	H mm	H1 mm	H2 mm	KN	NM	P N/mm	P1 N/mm	Qty.	Size	Ts Nm
100	145	26	32	44	56	154					162	8078	183	126	8	M12x35	145
110	155	26	32	44	56	164					162	8886	167	118	8	M12x35	145
120	165	26	32	44	56	174					182	10899	172	125	9	M12x35	145
130	180	34	40	52	64	189					242	15746	162	117	12	M12x35	145
140	190	34	40	54	68	199					247	17290	153	113	9	M14x40	230
150	200	34	40	54	68	209					274	20582	159	119	10	M14x40	230
160	210	34	40	54	68	219					302	24149	164	125	11	M14x40	230
170	225	44	50	64	78	234					329	27990	130	98	12	M14x40	230
180	235	44	50	64	78	244					329	29636	123	94	12	M14x40	230
19	47	17	22	28	34	56					24	226	217	88	5	M6x20	17
20	47	17	22	28	34	56					24	238	206	88	5	M6x20	17
22	47	17	22	28	34	56					24	261	187	88	5	M6x20	17
24	50	17	22	28	34	59					29	342	206	99	6	M6x20	17
25	50	17	22	28	34	59					29	356	198	99	6	M6x20	17
28	55	17	22	28	34	64					29	399	177	90	6	M6x20	17
30	55	17	22	28	34	64					29	428	165	90	6	M6x20	17
32	60	17	22	28	34	69					38	608	206	110	8	M6x20	17
35	60	17	22	28	34	69					38	665	188	110	8	M6x20	17
38	65	17	22	28	34	74					38	722	174	101	8	M6x20	17
40	65	17	22	28	34	74					38	760	165	101	8	M6x20	17
42	75	20	25	33	41	84					60	1259	210	118	7	M8x25	41
45	75	20	25	33	41	84					60	1349	196	118	7	M8x25	41
50	80	20	25	33	41	84					60	1499	177	110	7	M8x25	41
55	85	20	25	33	41	94					68	1883	184	119	8	M8x25	41
60	90	20	25	33	41	99					68	2054	168	112	8	M8x25	41
65	95	20	25	33	41	104					77	2503	175	120	9	M8x25	41
70	110	24	30	40	50	119					111	3886	195	124	8	M10x30	83
75	115	24	30	40	50	124					111	4163	182	119	8	M10x30	83
80	120	24	30	40	50	129					111	4441	171	114	8	M10x30	83
85	125	24	30	40	50	134					125	5306	180	123	9	M10x30	83
90	130	24	30	40	50	139					125	5618	170	118	9	M10x30	83
95	135	24	30	40	50	144					139	6587	179	126	10	M10x30	83

China Locking Assembly manufacturer, chinese Locking Assembly supplier, produce:power locks,Locking Assembly.We can produce as per customer's drawing or sample. Please feel free to send us your detail enquiries. E-mail: [email protected]
