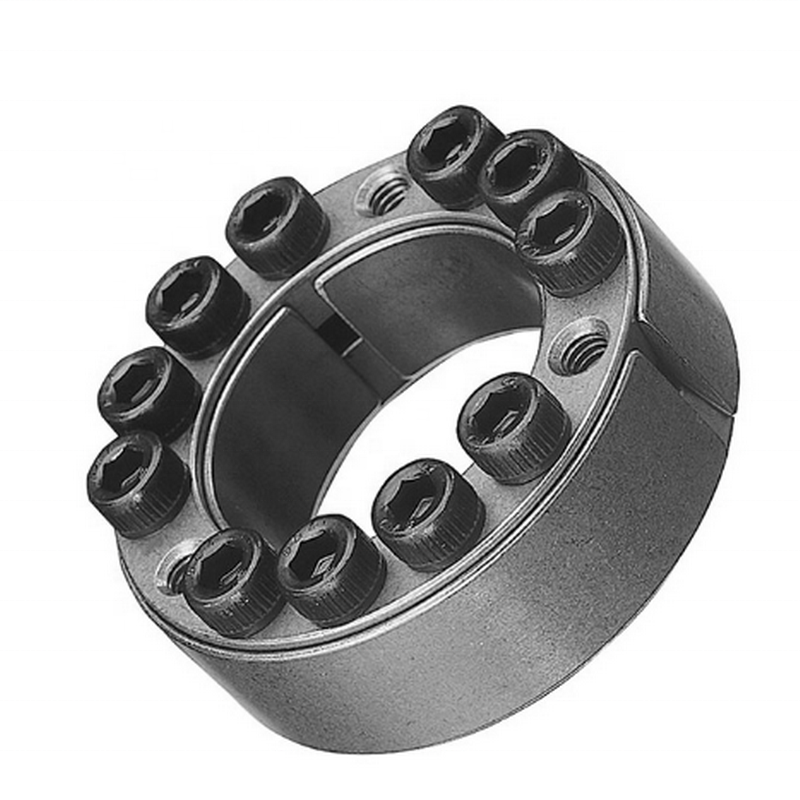

Keyless Locking Devices 22LOCKS.pdf

THE DIMENSION TO FIX (SUGGESTION):

SHAFT: h8

HUB: H8

DIMENSIONS											Axial force	Torque	Contact_Pressure		Locking Screws DIN912-12.9
DIMENSIONS											Axial force	Torque	haft	Hub	Qty	Size	TihteningTorque
?d mm	?D mm	L1 mm	L2 mm	L3 mm	L mm	D1	D2	H mm	H1 mm	H2 mm	KN	NM	P N/mm	P1 N/mm	Qty.	Size	Ts Nm
17	50	50	16	44	56						16.8	142			4	M6X45	17
18	50	50	16	44	56						16.8	151			4	M6X45	17
19	50	50	16	44	56						16.8	159			4	M6X45	17
20	50	50	16	44	56						16.8	268			4	M6X45	17
24	55	60	18.5	54	66						25.2	302			6	M6X55	17
25	55	60	18.5	54	66						25.2	315			6	M6X55	17
28	60	60	18.5	54	66						25.2	352			6	M6X55	17
30	60	60	18.5	54	66						25.2	378			6	M6X55	17
32	63	60	18.5	54	66						25.2	403			6	M6X55	17
35	75	75	22	67	83						31.2	546			4	M8X70	42
38	75	75	22	67	83						31.2	592			4	M8X70	42
40	75	75	22	67	83						31.2	624			4	M8X70	42
42	78	75	22	67	83						31.2	982			4	M8X70	42
45	85	85	24.5	76	93						46.8	1053			6	M8X80	42
48	90	85	24.5	76	93						46.8	1123			6	M8X80	42
50	90	85	24.5	76	93						46.8	1170			6	M8X80	42
55	94	85	24.5	76	93						62.4	1710			8	M8X80	42
60	100	85	24.5	76	93						62.4	1870			8	M8X80	42
65	105	85	24.5	76	93						62.4	2020			8	M8X80	42
70	115	100	29	90	110						98.4	3440			8	M10X95	84
