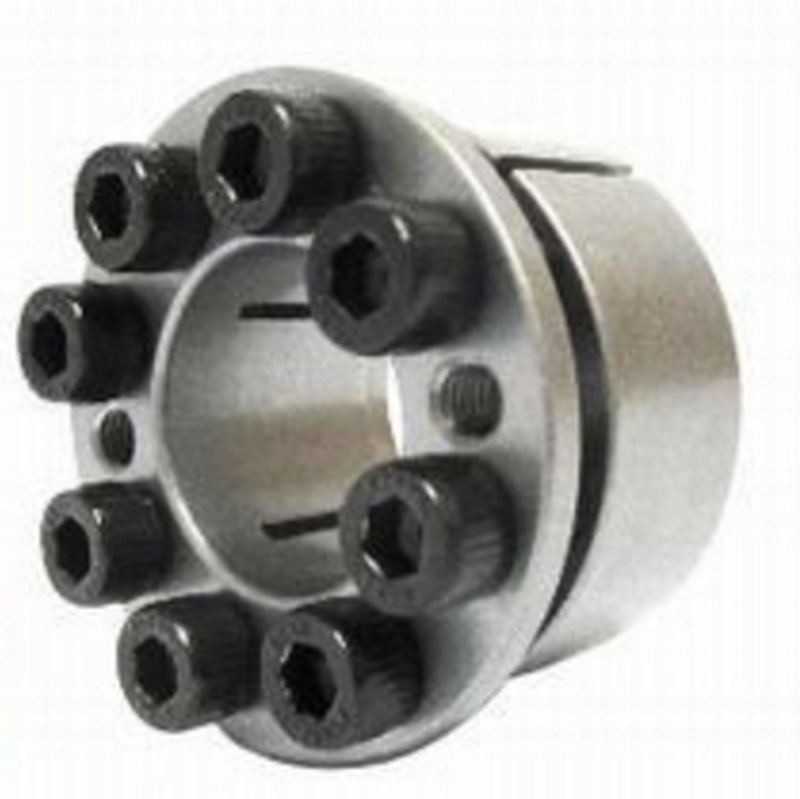

Keyless Locking Devices 21
LOCKS.pdf
 | THE DIMENSION TO FIX (SUGGESTION): HUB: H8 |
| DIMENSIONS | Axial force | Torque | Contact_Pressure | Locking Screws DIN912-12.9 | |||||||||||||
| haft | Hub | Qty | Size | Tihtening Torque | |||||||||||||
| ?d mm | ?D mm | L1 mm | L2 mm | L3 mm | L mm | D1 | D2 | H mm | H1 mm | H2 mm | KN | NM | P N/mm | P1 N/mm | Qty. | Size | Ts Nm |
| 15 | 25 | 32 | 31 | 20 | 9 | 77 | 91 | 55 | 1 | M20x1 | 95 | ||||||
| 18 | 30 | 38 | 33 | 21 | 13 | 125 | 98 | 59 | 1 | M25x1.5 | 160 | ||||||
| 19 | 30 | 38 | 33 | 21 | 13 | 132 | 93 | 59 | 1 | M25x1.5 | 160 | ||||||
| 20 | 30 | 38 | 33 | 21 | 13 | 139 | 88 | 59 | 1 | M25x1.5 | 160 | ||||||
| 24 | 35 | 45 | 38 | 25 | 15 | 202 | 74 | 51 | 1 | M30x1.5 | 220 | ||||||
| 25 | 35 | 45 | 38 | 25 | 15 | 210 | 71 | 51 | 1 | M30x1.5 | 220 | ||||||
| 28 | 40 | 52 | 44 | 28 | 20 | 312 | 76 | 53 | 1 | M35x1.5 | 340 | ||||||
| 30 | 40 | 52 | 44 | 28 | 20 | 335 | 71 | 53 | 1 | M35x1.5 | 340 | ||||||
| 35 | 45 | 58 | 45 | 28 | 25 | 483 | 75 | 58 | 1 | M40x1.5 | 480 | ||||||
| 40 | 50 | 65 | 46 | 28 | 31 | 696 | 82 | 66 | 1 | M45x1.5 | 680 | ||||||
| 45 | 55 | 70 | 47 | 28 | 36 | 902 | 84 | 69 | 1 | M50x1.5 | 870 | ||||||
| 50 | 60 | 75 | 47 | 28 | 37 | 1014 | 77 | 64 | 1 | M55x2 | 970 | ||||||
| 55 | 65 | 80 | 48 | 28 | 38 | 1158 | 73 | 61 | 1 | M60x2 | 1100 | ||||||
| 60 | 70 | 85 | 50 | 28 | 41 | 1379 | 73 | 62 | 1 | M65x2 | 1300 | ||||||
