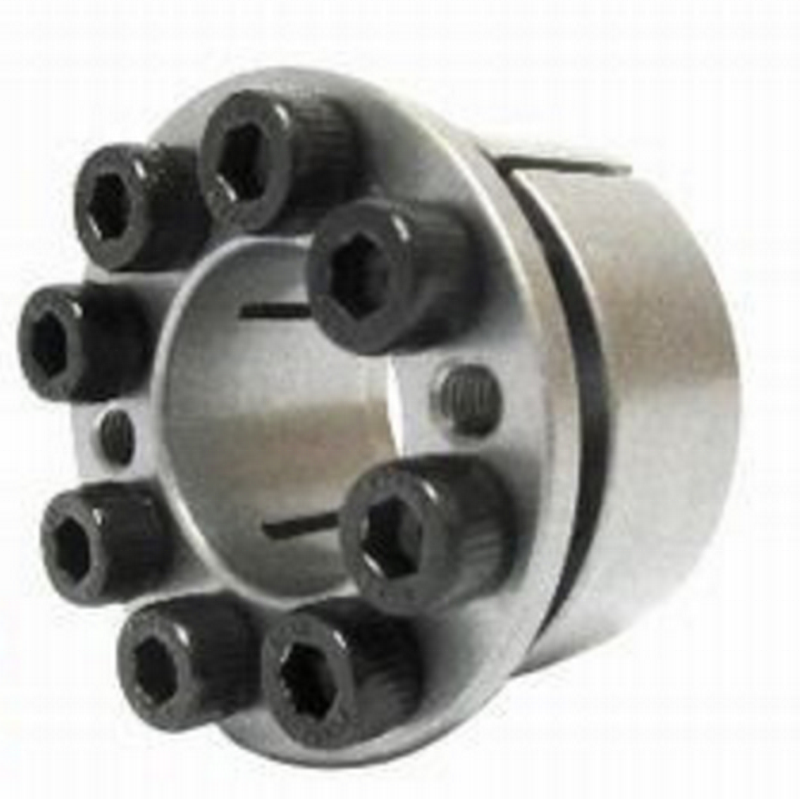

Keyless Locking Devices 15

Keyless Locking Devices 15LOCKS.pdf THE DIMENSION TO FIX (SUGGESTION): SHAFT: h8 HUB: H8 DIMENSIONS Axial force Torque Contact_Pressure Locking Screws DIN912-12.9 haft Hub Qty Size TihteningTorque ?d mm ?D mm L1 mm L2 mm L3 mm L mm D1 D2 H mm H1 m......

Send Inquiry

Product Description

Keyless Locking Devices 15LOCKS.pdf

THE DIMENSION TO FIX (SUGGESTION):

SHAFT: h8

HUB: H8

DIMENSIONS											Axial force	Torque	Contact_Pressure		Locking Screws DIN912-12.9
DIMENSIONS											Axial force	Torque	haft	Hub	Qty	Size	TihteningTorque
?d mm	?D mm	L1 mm	L2 mm	L3 mm	L mm	D1	D2	H mm	H1 mm	H2 mm	KN	NM	P N/mm	P1 N/mm	Qty.	Size	Ts Nm
14	55	17	22	31	39	62					31	216	383	97	4	M8x25	37
16	55	17	22	31	39	62					31	247	335	97	4	M8x25	37
18	55	17	22	31	39	62					34	308	330	108	4	M8x25	41
19	55	17	22	31	39	62					34	325	313	108	4	M8x25	41
20	55	17	22	31	39	62					34	342	297	108	4	M8x25	41
22	55	17	22	31	39	62					34	377	270	108	4	M8x25	41
24	55	17	22	31	39	62					34	411	247	108	4	M8x25	41
24	65	17	22	31	39	72					43	513	309	114	5	M8x25	41
25	55	17	22	31	39	62					34	428	238	108	4	M8x25	41
25	65	17	22	31	39	72					43	535	297	114	5	M8x25	41
28	65	17	22	31	39	72					43	599	265	114	5	M8x25	41
28	55	17	22	31	39	62					34	479	212	108	4	M8x25	41
30	55	17	22	31	39	62					34	514	198	108	4	M8x25	41
30	65	17	22	31	39	72					43	642	247	114	5	M8x25	41
30	80	20	25	33	41	87					60	899	295	110	7	M8x25	41
32	80	20	25	33	41	87					60	959	276	110	7	M8x25	41
32	65	17	22	31	39	72					43	684	232	114	5	M8x25	41
35	65	17	22	31	39	72					43	748	212	114	5	M8x25	41
35	80	20	25	33	41	87					60	1049	253	110	7	M8x25	41
38	65	17	22	31	39	72					43	813	195	114	5	M8x25	41
38	80	20	25	33	41	87					60	1139	233	110	7	M8x25	41
40	65	17	22	31	39	72					43	855	185	114	5	M8x25	41
40	80	20	25	33	41	87					60	1199	221	110	7	M8x25	41
42	80	20	25	33	41	87					60	1259	210	110	7	M8x25	41
45	80	20	25	33	41	87					60	1349	196	110	7	M8x25	41
48	80	20	25	33	41	87					60	1439	184	110	7	M8x25	41
50	80	20	25	33	41	87					60	1499	177	110	7	M8x25	41

China Locking Assembly manufacturer, chinese Locking Assembly supplier, produce:power locks,Locking Assembly.We can produce as per customer's drawing or sample. Please feel free to send us your detail enquiries. E-mail: [email protected]
