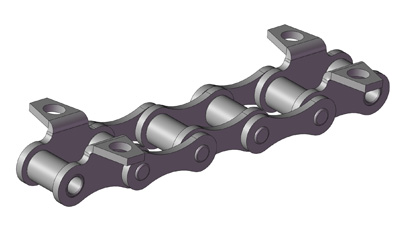

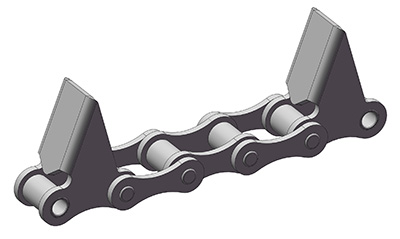

ZGS38 Combine Harvester Chains

Raydafon Group's ZGS38 Combine Harvester Chains deliver unmatched durability and efficiency for farmers, crafted from high-quality materials to ensure smooth harvesting in tough conditions, reducing downtime and boosting productivity with reliable performance.
Send Inquiry
Product Description

Type:ZGS38 combine chain with attachments

Material:steel

Configuration:roller

Other characteristics:lube-free, heat-resistant

Chain pitch:30.0MM-40.2MM

Model: ZGS38,ZGS38HF7,ZGS38F42,CZGS38F10,CZGS38F11,CZGS38F13,CZGS38HF36,ZGS38F2,ZGS38F6K1,ZGS38F10K1,ZGS38HF13K1F1,ZGS38HF12K1F1,ZGS38F18,ZGS38F42K1,ZGS38F43K1,ZGS38F46,CZGS38F10K1,CZGS38F13K1F1,ZGS38F5,ZGS38F8,ZGS38F145D,ZGS38F44,ZGS38SDF4,ZGS38F35,ZGS38SDF4,ZGS38F35,ZGS38F47,ZGS38F1,ZGS38F3,ZGS38SDF1,ZGS38SDF5,ZGS38SDF6,ZGS38F32SD,ZGS38K11,CZGS38F10SD,CZGS38F11SDF1,ZGS38-C6E,ZG538-C6EF1,ZG538-C6EF2,ZG538-C6EF3,ZG538-C6EF4,ZG538-CPEF6,ZGS38-CPEF3,ZGS38-CPEF1

Surface treatment: shot peening, zinc plating.

Application scope: widely used in feed factory, grain cleaning machine and grain returning machine.


ZGS38 Combine Harvester Chains

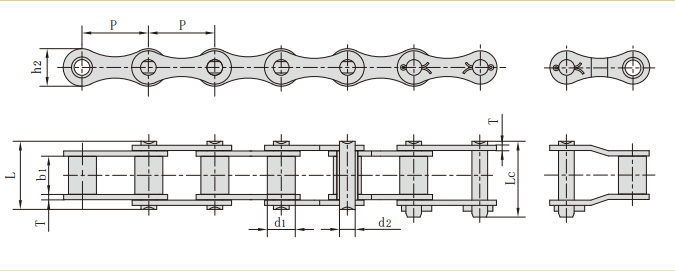

Chain No. Pitch Roller
diameter		 Width
between
inner plates		 Pin
diameter		 Pin
length		 Inner
plate depth		 Plate
thickness		 Tensile
strength		 Average
tensile
strength		 Weight
per
meter
P d1
max		 b1
min		 d2
max		 L
max		 Lc
max		 h2
max		 T
max		 Q
min		 Q0 q
mm mm mm mm mm mm mm mm kN/lbf kN kg/m
ZGS38 38.0 16.00 22.0 9.00 39.0 43.0 21.5 3.0 45.0/10116 54.0 2.00
ZGS38HF7 38.0 16.00 22.0 9.00 47.0 51.0 21.5 5.0 80.0/18000 88.0 2.74
ZGS38F42 38.0 16.00 22.0 9.00 43.2 46.5 21.5 4.0 45.0/10116 54.0 2.43

ZGS38 Combine Harvester Chains

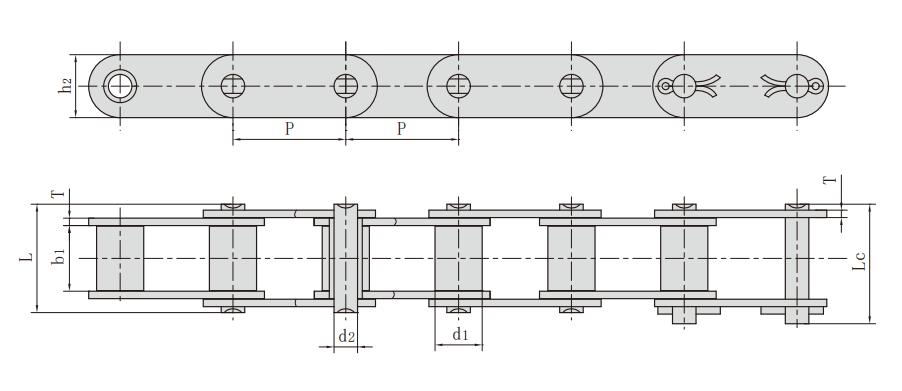

Chain No. Pitch Roller
diameter		 Width
between
inner plates		 Pin
diameter		 Pin
length		 Inner
plate depth		 Plate
thickness		 Tensile
strength		 Average
tensile
strength		 Weight
per
meter
P d1
max		 b1
min		 d2
ma x		 L
max		 Lc
max		 h2
max		 T
max		 Q
min		 Q0 q
m m m  m m  m m m m  m m m m  m m m kN/lbf kN kg/m
CZG S38F10 38.0 15.88 22.0 7.92 39.0 43.0 21.3 3.0 45.0/10116 54.0 2.39
CZG S38F11 38.0 15.88 22.0 7.92 37.1 41.0 21.2 2.5 30.0/6745 33.0 2.10
CZGS38HF12 38.0 15.88 22.0 7.92 39.9 42.7 21.2 3.2 45.0/10116 54.0 2.42
CZGS38F13 38.0 16.00 22.0 9.00 39.0 43.0 21.5 3.0 45.0/10116 54.0 2.42
CZGS38HF36 38.0 15.88 22.0 7.92 40.5 44.0 21.3 3.5 50.0/11241 55.0 2.63

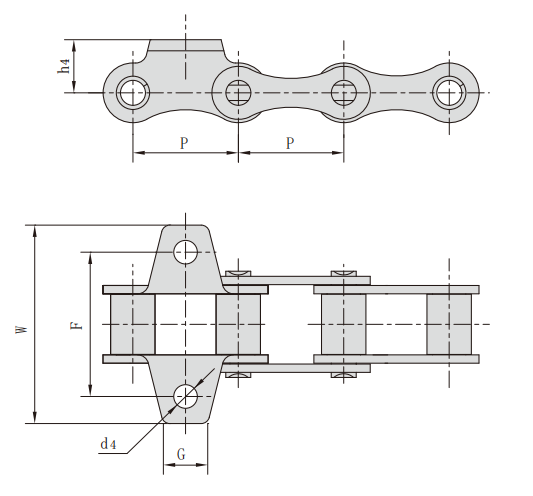

ZGS38 Combine Harvester Chains

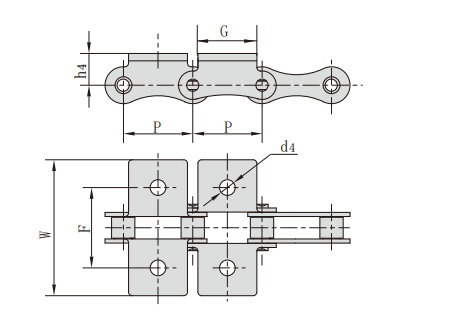

Chain No.		 P G F W h4 d4
m m m m m m m m m m m m
ZG S38F2 38.0 16.0 52.0 71.5 19.6 11.0
ZG S38F6K1 38.0 16.0 52.0 74.6 19.6 8.5
ZG S38F10K1 38.0 20.0 52.0 72.0 17.0 8.4
ZG S38F13K1F1 38.0 20.0 52.0 80.0 17.0 8.6
ZG S38HF12K1F1 38.0 25.0 52.0 72.0 17.0 8.4
ZG S38F18 38.0 16.0 52.0 69.6 19.6 8.5
ZG S38F42K1 38.0 16.0 52.0 74.6 19.6 8.5
ZG S38F43K1 38.0 16.0 52.0 74.6 19.6 11.0
ZG S38F46 38.0 16.0 52.0 74.6 20.0 8.5

ZGS38 Combine Harvester Chains


Chain No.		 P G F W h4 d4
m m m  m m m m  m m  m m m
CZGS38F10K1 38.0 20.0 52.0 72.0 17.0 8.4
CZGS38F13K1F1 38.0 26.5 52.0 80.0 17.0 8.6

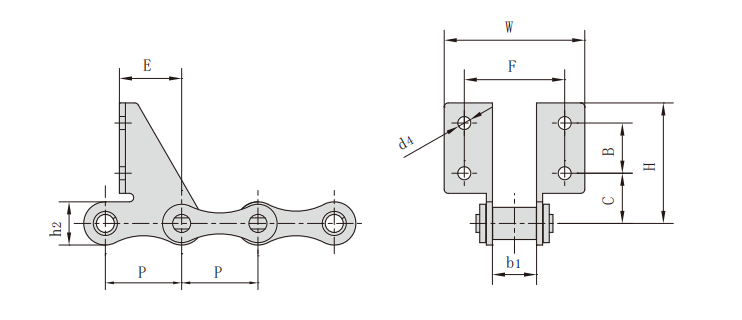

ZGS38 Combine Harvester Chains

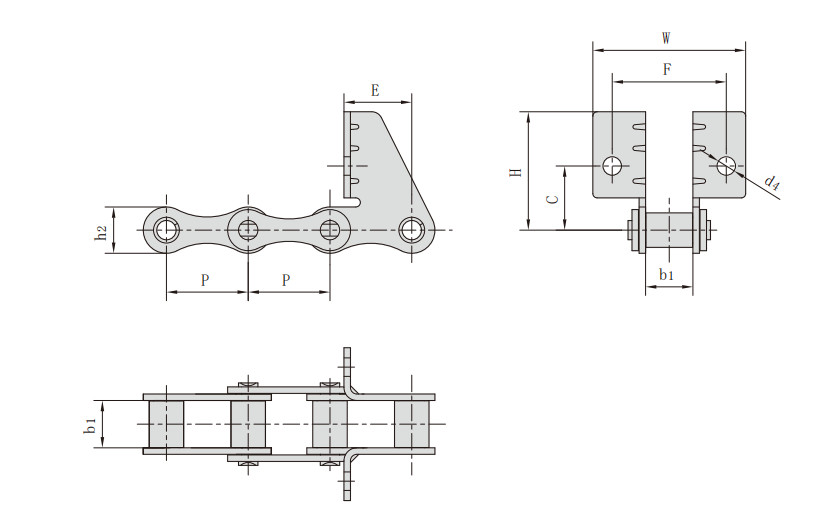

Chain No.		 P
 b1 C B F W d4 E H h2
mm mm mm mm mm mm mm mm mm mm
ZGS38F5 38.0 22.0 32.0 25.0 52.0 72.0 7.0 31.0 67.0 21.5
ZGS38F8 38.0 22.0 32.0 25.0 52.0 68.0 7.0 31.0 67.0 21.5
ZGS38F14SD 38.0 22.0 25.0 25.0 50.0 70.0 6.5 31.0 60.0 21.5
ZGS38F44 38.0 22.0 25.0 25.0 52.0 72.0 7.2 30.0 60.0 21.5


ZGS38 Combine Harvester Chains


Chain No.		 P b1 C F W d4 E H h2
m m m m m m m m m m m m m m m m m m
ZGS38SDF4 38.0 22.0 30.0 52.0 70.0 8.5 31.8 55.0 21.5
ZGS38F35 38.0 22.0 29.8 53.0 71.0 8.7 31.3 55.0 21.5

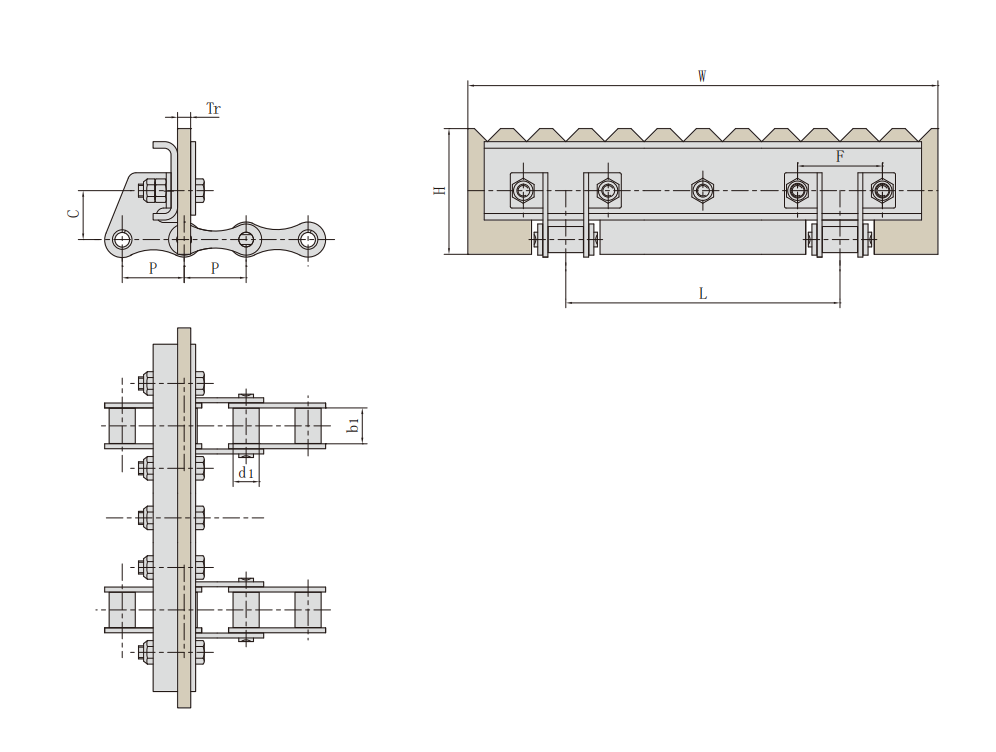

ZGS38 Combine Harvester Chains


Chain No.		 Pitch Roller
diameter		 Width between
inner plates		 Rubber attachment dimension
P d1
max		 b1
max		 W
max		 L H
max		 F Tr
mm mm mm mm mm mm mm mm
ZGS38F47 38.0 16.0 22.0 480.0 360.0 77.0 52.0 8.0

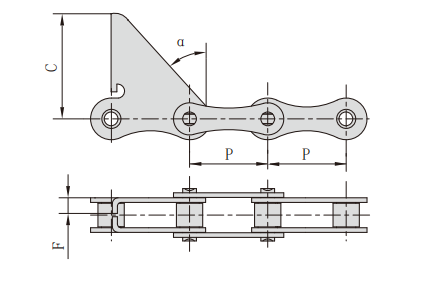

ZGS38 Combine Harvester Chains





Chain No.		 P C F a
m  m m  m m  m
ZGS38F1 38.0 60.0 14.0 32.5°

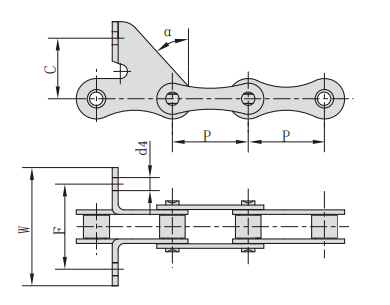

ZGS38 Combine Harvester Chains

Chain No. P C F W d4 a
m m m m m m m m m m
ZGS38F3 38.0 30.0 52.0 68.4 6.50 43.5
ZGS38SDF1 38.0 30.0 52.0 68.4 8.50 43.5°
ZGS38SDF5 38.0 30.0 52.0 68.0 8.60 40.5°
ZGS38SDF6 38.0 30.0 52.0 68.0 8.50 40.5°
ZGS38F32SD 38.0 30.0 52.0 68.4 6.50 43.5°

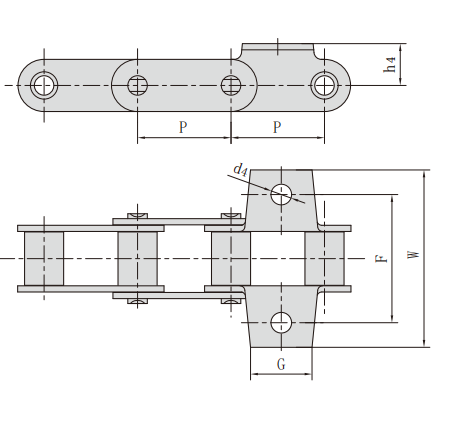

ZGS38 Combine Harvester Chains


Chain No.		 P G F W h4 d4
mm mm mm mm mm mm
ZGS38K1 38.0 32.0 53.0 83.2 20.0 8.5
