Raydafon manufactures the 103A plain chain at our Ningbo plant for sideflexing conveyor lines. Plate width 103mm, pitch 35.5mm, working load 2100N at 21°C, sideflex radius 150mm, backflex radius 100mm. POM body with stainless steel pin; XLHS/XLGHS/PSHS grades available. OEM length, private-label packaging, and matched sprockets quoted together.

103A Plain Chain Factory Supply — 103mm Width, 35.5mm Pitch, Sideflex Conveyor Grade

Raydafon manufactures the 103A plain chain (also listed as 103A sideflexing flat top chain) at our Ningbo plant for conveyor OEMs and bottling-line integrators. Standard POM body, stainless steel pin, factory-direct pricing, and OEM length/packaging available. Below are the production-verified numbers your engineering team needs for track layout and drive sizing.

103 mmPlate Width
35.5 mmPitch
2100 NWorking Load (21°C)
150 mmSideflex Radius (Min)
100 mmBackflex Radius (Min)
1.76 kg/mChain Weight

103A Plain Chain Specifications — What to Lock Before Ordering

The 103A is a side-flexing plastic flat top chain built for single-lane container conveying where the line turns corners. Unlike a straight-running chain, the 103A must be specified against both sideflex radius and backflex radius — underspecifying either one causes pin wear or plate lift on the return run. The dimension drawing and table below consolidate the mechanical envelope; confirm final values against the factory drawing before releasing a PO.

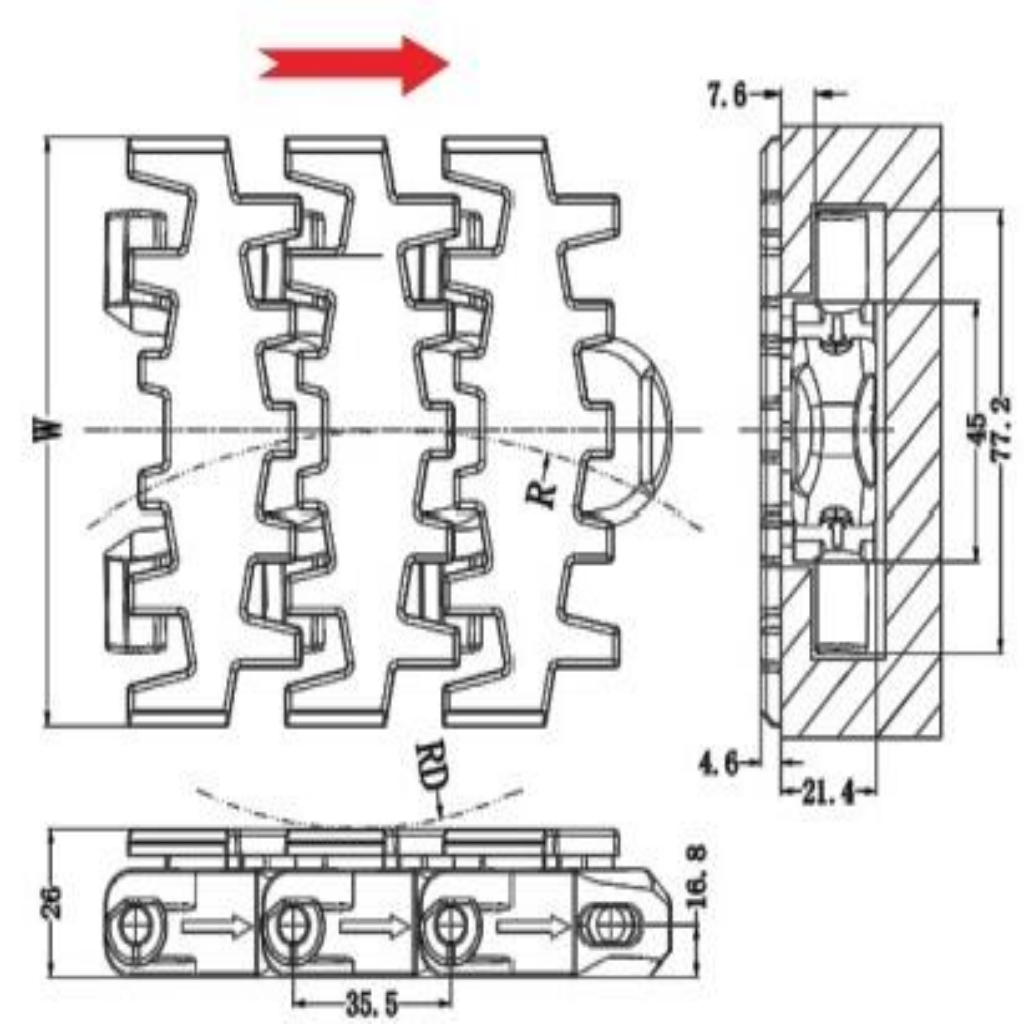

103A Plain Chain dimension drawing — 103mm width, 35.5mm pitch, 150mm sideflex radius, 100mm backflex radius
103A plain chain dimension drawing — verify plate width, pitch, and flex radii against your conveyor layout.
Parameter 103A Value Procurement Impact
Chain Type 103A Plain (Sideflexing) Fits standard 103mm guide rail; direct replacement for equivalent 103A profiles
Plate Width 103 mm Single-lane bottles, cans, jars up to ~100mm diameter
Pitch 35.5 mm Determines sprocket tooth count and line speed ratio
Working Load (max, 21°C) 2100 N Size drive motor and check accumulation back-pressure
Sideflex Radius (min) 150 mm Minimum curve radius on the carry run
Backflex Radius (min) 100 mm Minimum radius on the return run; do not treat as interchangeable with sideflex
Weight 1.76 kg/m Affects catenary sag and track load
Body Material POM (standard) / XLHS, XLGHS, PSHS options POM for general conveying; specialty grades for wear or friction-critical lines
Pin Material Stainless Steel Corrosion resistance in washdown and humid environments
Buyer note: Published working loads for the 103A vary across sources (1,250 N to 2,100 N depending on material grade and test standard). The 2,100 N figure above reflects the standard POM configuration. If your line runs above 60°C or handles abrasive containers, ask for the derated load at your operating temperature before sizing the drive. For straight-run sections without curves, compare our Roller Chain or Conveyor Chain ranges, which may be more cost-effective.

Why Procurement Teams Specify the 103A for Sideflexing Lines

Curve-Ready Without Transfer Plates

A 150 mm sideflex radius lets the 103A negotiate corners on the carry run without dead plates. One chain covers straights and bends, simplifying spares and changeover.

Snap-On Maintenance

Individual links can be replaced without dismantling the entire conveyor. Downtime is measured in minutes, not shifts — critical on bottling and packaging lines.

POM Body, Stainless Pin

POM delivers low friction and noise; the stainless pin resists corrosion in washdown, humid, and mild chemical environments. A practical balance for food and beverage conveying.

Multiple Material Options

Beyond standard POM, 103A is available in XLHS, XLGHS, and PSHS grades to match different wear, friction, and temperature requirements without changing the track footprint.

Where the 103A Plain Chain Fits — Application Quadrants

This is not a general-purpose drive chain. The 103A is a conveyor chain, and it earns its cost only when the line profile includes curves or when quick link replacement matters. The four application clusters below cover the majority of factory orders we ship.

Beverage & Bottling PET and glass bottle lines, filler infeeds, accumulation tables, and labeler transfers where a smooth single-lane curve is required. Stainless pin supports washdown.
Food Processing & Packaging Jar, can, and tray conveying on lines that turn. POM body is compatible with general food-contact conveying; confirm washdown chemicals against the pin grade.
Logistics & Sorting Package and parcel diverters, merge sections, and small-item sorters where the chain path is not straight and transfer plates would jam products.
Light Electronics & Assembly Component transport between stations on compact automation frames. Low noise and non-marring POM surface protect finished parts.
If your line is purely straight and does not need sideflexing, a straight-running flat top chain or a modular belt will usually cost less. Use the 103A when the curve is real and the spares strategy favors single-link replacement. For matched sprockets, see our Sprocket line.

OEM Length, Material Grade, and Packaging — What Raydafon Can Customize

Conveyor OEMs rarely buy a chain “as catalogued.” The 103A is supplied to your line length, material spec, and packaging format so it arrives ready to install rather than requiring in-house cutting and re-pinning.

Customization Available Options Typical MOQ
Chain Length Cut to your conveyor center distance; standard 3.048 m box or custom loop length 1 box (standard) / 50 m (custom length)
Body Material POM standard; XLHS / XLGHS / PSHS on request 100 m per grade
Pin Material Stainless steel standard; alternative grades for specific washdown chemistry 100 m
Packaging Neutral carton; private label with your part number and barcode 200 m
Documentation Dimensional report, material certificate, and pin grade declaration Every shipment

For lines that need a different plate width or a heavier working load, the Automobile Chain and Engineering Chain ranges may offer a closer dimensional match. Send your conveyor drawing and our engineers will confirm whether the 103A is the right profile or recommend an alternative.

Factory Evidence — Why Raydafon Is the Manufacturing Source

  • ISO 9001:2015 certified manufacturer, founded 2006, headquartered in Ningbo, Zhejiang
  • Two intelligent manufacturing hubs: Ningbo (Zhejiang) and Dongguan (Guangdong)
  • Vertically integrated: gearboxes, sprockets, chains, and conveyor components produced in-house
  • OEM and ODM manufacturing core to the business — not a trading-company add-on
  • 103A plain chain supplied with dimensional report and material certificate per shipment
  • English-speaking engineering response within one business day

Frequently Asked Questions — 103A Plain Chain Procurement

What is the difference between sideflex radius and backflex radius on the 103A?
Sideflex radius (150 mm for 103A) is the minimum curve on the carry run where the chain articulates laterally. Backflex radius (100 mm) is the minimum curve on the return run where the chain bends in the opposite direction. They are not interchangeable. Specify both before laying out the track.
Is the 103A working load 1,250 N or 2,100 N?
Both figures appear in the market because material grade and test conditions differ. The standard POM configuration is rated at 2,100 N at 21°C. Some suppliers publish a lower 1,250 N figure for a different grade or a more conservative derating. For drive sizing, use the rating tied to the exact material grade you purchase, and derate further if operating temperature exceeds 21°C.
Can I replace only damaged links, or must I buy a full chain loop?
The 103A uses a snap-on link design, so individual links can be replaced without replacing the full loop. This is one of the main reasons buyers choose a flat top chain over a modular belt for lines where downtime cost is high.
What material is the standard 103A made from?
Standard body material is POM (polyoxymethylene) with a stainless steel pin. XLHS, XLGHS, and PSHS body grades are available for applications requiring different wear, friction, or temperature performance.
Do you supply the matching sprocket for the 103A?
Yes. Raydafon manufactures sprockets in-house, so the 103A chain and its drive sprocket can be quoted as a matched set. Send the shaft diameter, keyway, and required line speed, and our engineers will confirm the tooth count.
What is the lead time for a custom-length 103A order?
Standard boxed 103A ships from stock in 5–7 working days. Custom length, custom material grade, or private-label packaging runs 15–20 working days after drawing confirmation.
Send 103A Specs for Quote View Conveyor Line Chain Range
Send Inquiry
