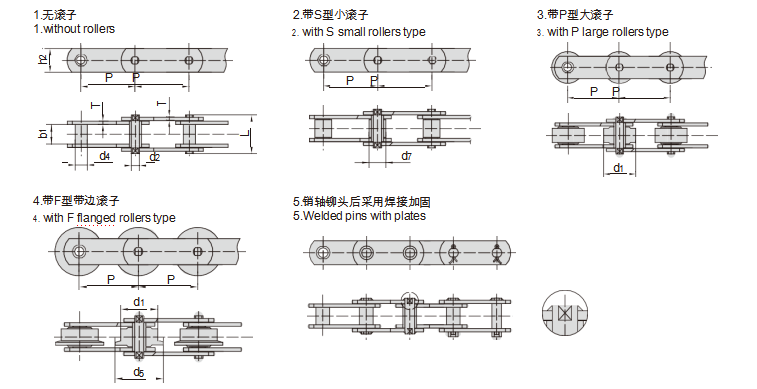

Conveyor chains with extended pins (M series).pdf
链号Chain No. | 节距 Pitch P mm | 滚子直径Roller diameter | 套筒直径Bush diameter mda4x mm | ||||||||
mda1x mm | mda7x mm | mda5x mm | |||||||||
M20SS | 40.0 | 50.0 | 63.0 | 80.0 | 100.0 | 125.0 | 160.0 | 25.00 | 12.50 | 30.00 | 9.00 |
M28SS | 50.0 | 63.0 | 80.0 | 100.0 | 125.0 | 160.0 | 30.00 | 15.00 | 36.00 | 10.00 | |
M40SS | 63.0 | 80.0 | 100.0 | 125.0 | 160.0 | - | - | 36.00 | 18.00 | 42.00 | 12.50 |
M56SS | 63.0 | 80.0 | 100.0 | 125.0 | 160.0 | - | - | 42.00 | 21.00 | 50.00 | 15.00 |
M80SS | 80.0 | 100.0 | 125.0 | 160.0 | - | - | - | 50.00 | 25.00 | 60.00 | 18.00 |
M112SS | 80.0 | 100.0 | 125.0 | 160.0 | - | - | - | 60.00 | 30.00 | 70.00 | 21.00 |
M160SS | 100.0 | 125.0 | 160.0 | - | - | - | - | 70.00 | 36.00 | 85.00 | 25.00 |
链号Chain No. | 内节内宽Width between inner plates mbi1n mm | 销轴直径Pin diameter mda2x mm | 销轴长度Pin length mLax mm | 链板高度Plate depth mha2x mm | 链板厚度Plate thickness mt/aTx mm | 抗拉强度Tensile strength mQin kN/lbf |
M20SS | 16.00 | 6.00 | 35.00 | 18.00 | 2.50 | 20.0/4545 |
M28SS | 18.00 | 7.00 | 40.00 | 20.00 | 3.00 | 28.0/6364 |
M40SS | 20.00 | 8.50 | 45.00 | 25.00 | 3.50 | 40.0/9091 |
M56SS | 24.00 | 10.00 | 52.00 | 30.00 | 4.00 | 56.0/12727 |
M80SS | 28.00 | 12.00 | 62.00 | 35.00 | 5.00 | 80.0/18182 |
M112SS | 32.00 | 15.00 | 73.00 | 40.00 | 6.00 | 112.0/25454 |
M160SS | 37.00 | 18.00 | 85.00 | 50.00 | 7.00 | 160.0/36364 |
