Conveyor Chains (MT Series)

Raydafon Group's Conveyor Chains (MT Series) are heavy-duty chains designed for industrial applications, offering superior durability and smooth operation. Crafted from high-quality materials, they excel in demanding environments, reducing downtime and boosting efficiency. Ideal for manufacturers, warehouses, and logistics, these chains ensure reliable performance, enhance productivity, and provide peace of mind. With innovative design and unmatched reliability, they stand out from competitors for their long-lasting value and precision engineering, making them a smart investment for any business.

Send Inquiry

Product Description

Conveyor Chains (MT Series) Double pitch conveyor chains with special attachments.pdf

Conveyor Chains (MT Series)

链号 Chain No.

C2050F9

31.75

9.4

15.0

5.0

21.0

10.0

Conveyor Chains (MT Series)

链号Chain No.

C2050HF2

31.75

9.4

18.0

13.0

36.1

56.5

13.5

Conveyor Chains (MT Series)

链号Chain No.

C2062F5

38.1

12.57

28.0

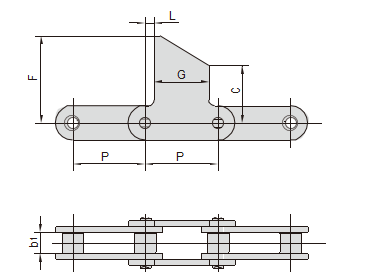

Conveyor Chains (MT Series)

链号 Chain No.	P	b1	L	G	C	F
链号 Chain No.	mm	mm	mm	mm	mm	mm
C2060F110	38.10	12.57	5.00	30.00	15.00	30.00
C2100HF4	63.50	18.90	7.90	47.80	50.80	76.20
C2100HF5	63.50	18.90	7.90	47.80	95.30	133.40

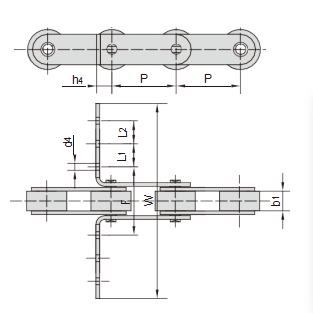

Conveyor Chains (MT Series)

链号 Chain No.	P	b1	L1	L2	F	W	h4	d4
链号 Chain No.	mm	mm	mm	mm	mm	mm	mm	mm
C2080HF6	50.8	15.75	43.0	-	60.0	160.0	20.45	5.5
C2080HF11	50.8	15.75	30.0	-	110.0	210.0	19.00	8.2
C2080HF78	50.8	15.75	42.5	-	63.5	163.5	21.20	5.0
C2100HF2	63.5	18.90	52.5	52.5	70.0	300.0	30.00	5.5
C224AHF8A2	76.2	25.22	40.0	-	118.0	238.0	28.50	12.0

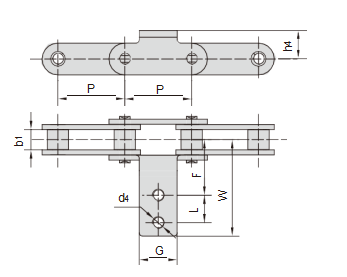

Conveyor Chains (MT Series)

链号 Chain No.	P	b1	G	L	F	W	h4	d4
链号 Chain No.	mm	mm	mm	mm	mm	mm	mm	mm
C2082HF4	50.8	15.75	28.6	50.8	57.4	181.4	8.7	11.1

Conveyor Chains (MT Series)

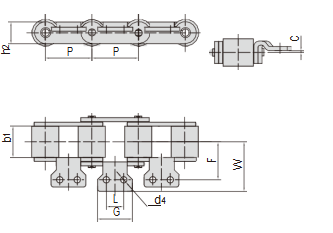

链号 Chain No.	P	b1	h2	G	L	F	W	d4	C
链号 Chain No.	mm	mm	mm	mm	mm	mm	mm	mm	mm
C2050A6	31.75	9.4	15.0	16.0	-	23.4	32.8	5.5	0.50
C2052F11	31.75	9.4	15.0	16.0	-	26.6	34.6	6.2	0.50
C2062HF63A2F1	38.10	25.4	18.0	28.6	14.4	34.5	40.0	5.2	1.43
C2062HF63A2F4	38.10	25.4	18.0	28.6	14.4	69.0	87.0	5.2	1.45
C2062HF77A2	38.10	25.4	18.0	33.0	16.3	39.0	47.0	8.5	5.30

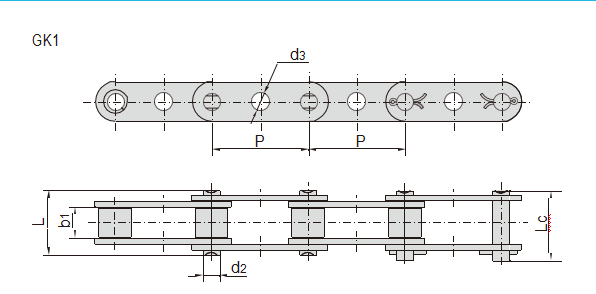

Conveyor Chains (MT Series)

ISO 链号ISO Chain No.	ANSI 链号ANSI Chain No.	P	b1	d2	d3	L	Lc
ISO 链号ISO Chain No.	ANSI 链号ANSI Chain No.	mm	mm	mm	mm	mm	mm
C208A C208AL	C2040 C2042	25.40	7.85	3.96	4.1	16.6	18.8
C210A C210AL	C2050 C2052	31.75	9.40	5.08	5.1	20.7	23.3
C212A C212AL	C2060 C2062	38.10	12.57	5.94	6.1	25.9	28.3
C212AH C212AHL	C2060H C2062H	38.10	12.57	5.94	6.1	29.2	31.6
C216A C216AL	C2080 C2082	50.80	15.75	7.92	8.1	32.7	36.5
C216AH C216AHL	C2080H C2082H	50.80	15.75	7.92	8.1	36.2	39.4
C220A C220AL	C2100 C2102	63.50	18.90	9.53	10.1	40.4	44.7
C220AH C220AHL	C2100H C2102H	63.50	18.90	9.53	10.1	43.6	46.9
