Product Description

Lumber conveyor chains & attachments.pdf

Lumber conveyor chains & attachments

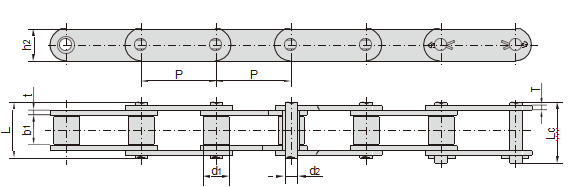

链号Chain No.	节距Pitch P mm	滚子直径Roller diameter d1 max mm	内节内宽Width between inner plates b1 min mm	销轴直径Pin diameter d2 max mm	销轴长度Pin length		内链板高度Inner plate depth h2 max mm	链板厚度Plate thickness t/T max mm	抗拉强度Tensile strength Q min kN/lbf	平均抗拉强度Average tensile strength Q0 kN	每米长重Weight per meter q kg/m
链号Chain No.	节距Pitch P mm	滚子直径Roller diameter d1 max mm	内节内宽Width between inner plates b1 min mm	销轴直径Pin diameter d2 max mm	L max mm	Lc max mm	内链板高度Inner plate depth h2 max mm	链板厚度Plate thickness t/T max mm	抗拉强度Tensile strength Q min kN/lbf	平均抗拉强度Average tensile strength Q0 kN	每米长重Weight per meter q kg/m
P42.47F1	42.47	22.20	27.00	11.10	49.0	53.5	28.60	4.00	97.0/21806	106.7	4.74
500R	50.00	25.40	25.40	14.63	52.0	56.4	40.00	5.00	100.0/22727	114.5	7.13
500RF1	50.00	25.40	25.40	14.63	53.4	60.1	40.00	5.00	120.0/29376	132.0	7.23
81X	66.27	23.00	27.00	11.10	49.0	53.5	28.50	4.00	106.7/24250	128.9	3.78
81XF14	66.27	23.00	27.00	11.10	50.8	53.8	28.70	4.00	85.5/19426	91.4	3.78
81XH	66.27	23.00	27.78	11.10	60.7	65.1	31.35	7.94/5.55	151.9/34523	175.7	5.88
81XHE	66.27	22.20	27.00	11.10	59.5	63.0	28.50	6.30	83.3/18927	89.1	5.09
81XHH	66.27	23.00	27.78	11.10	65.6	70.0	31.35	7.94	191.1/43432	212.6	6.70
81XHS	66.27	23.00	27.00	11.10	63.6	68.0	31.80	7.60	152.0/34545	177.2	6.55
441.100R	100.00	25.40	25.40	14.63	52.0	56.4	40.00	5.00	100.0/22727	114.5	5.15
P100F271	100.00	25.40	25.40	14.63	54.0	58.0	40.00	5.00	100.0/22480	110.0	5.22
