| 链板型号 Chain Type | 链板宽度 Chian width | 节距 Pitch | 最小转弯半径 | 最小背弯半径 | 工作载荷 | 链板重量 Weight | 链板材质 |
| Sideflex Raius(Min) | Backflex Radius(Min) | Working Load(Max) | Chain Material (White Color) | ||||
| mm | mm | mm | mm | 牛顿N(21℃) | Kg/m | ||

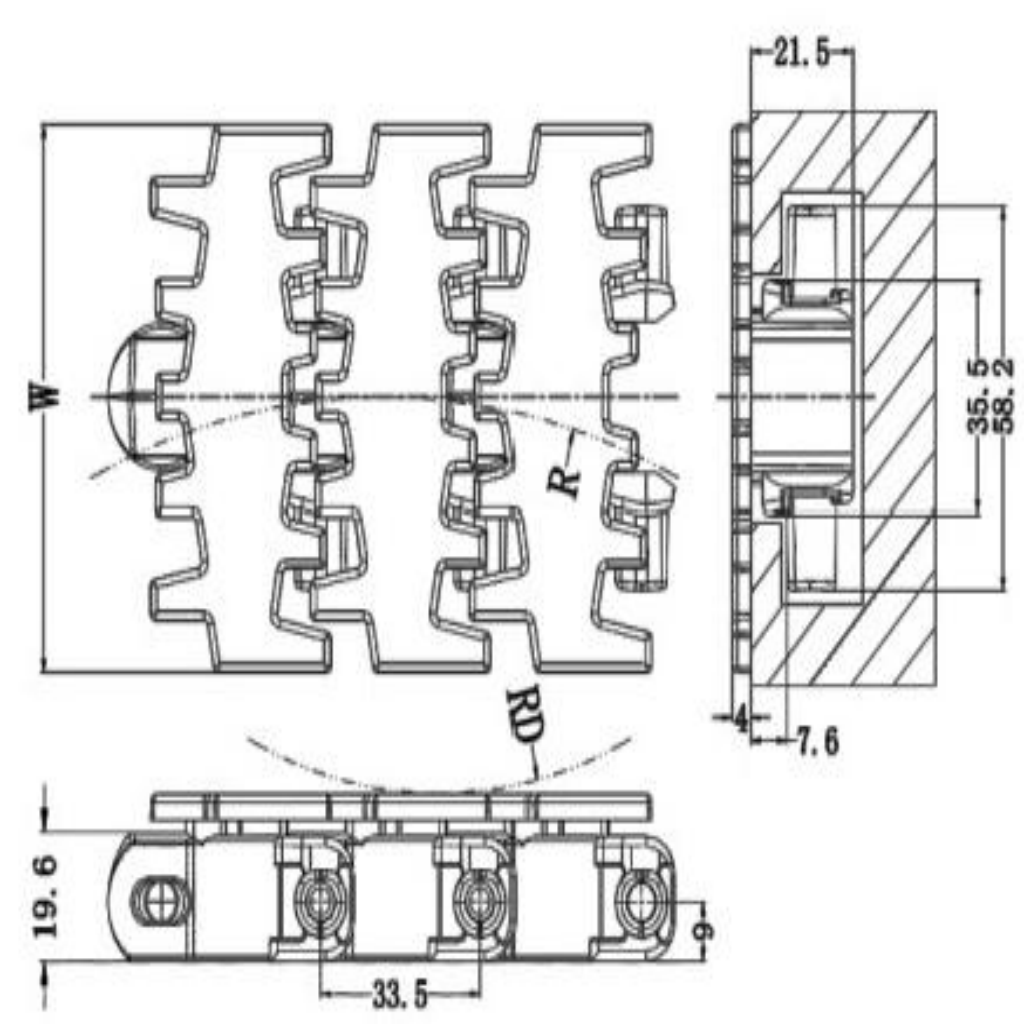

| 83A | 83 | 33.5 | 160 | 100 | 2800 | 1.23 | XLHS/XLGHS/PSHS |
