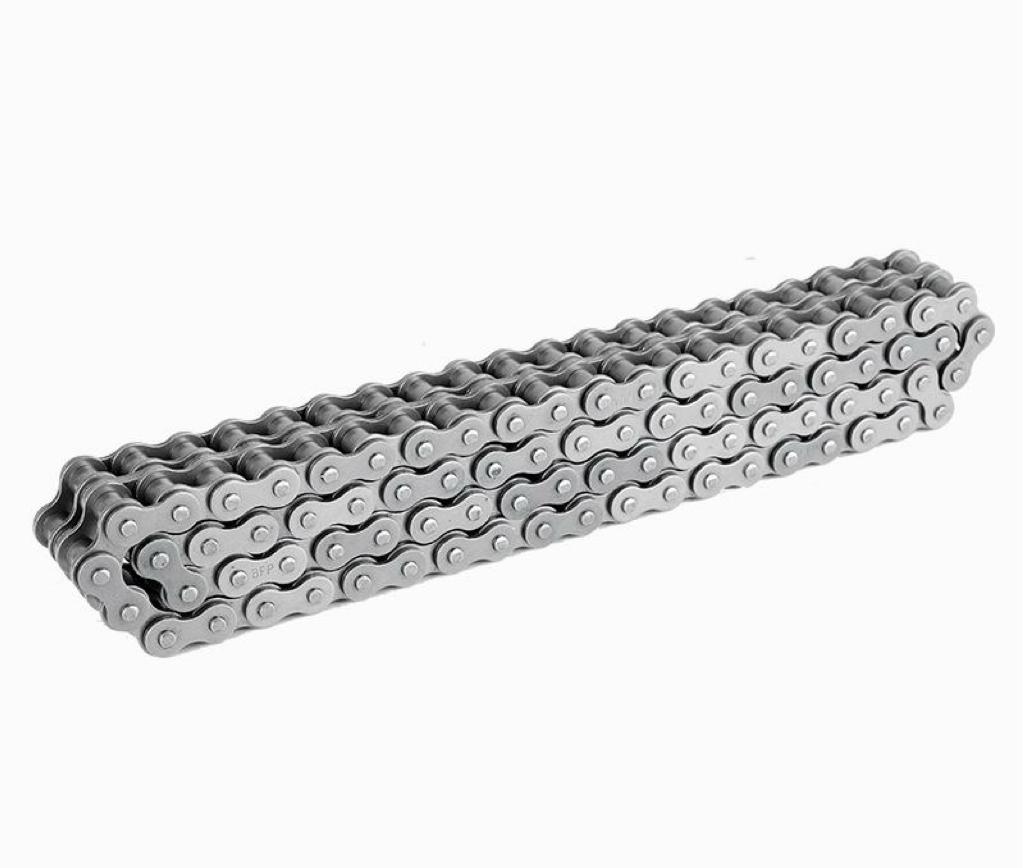

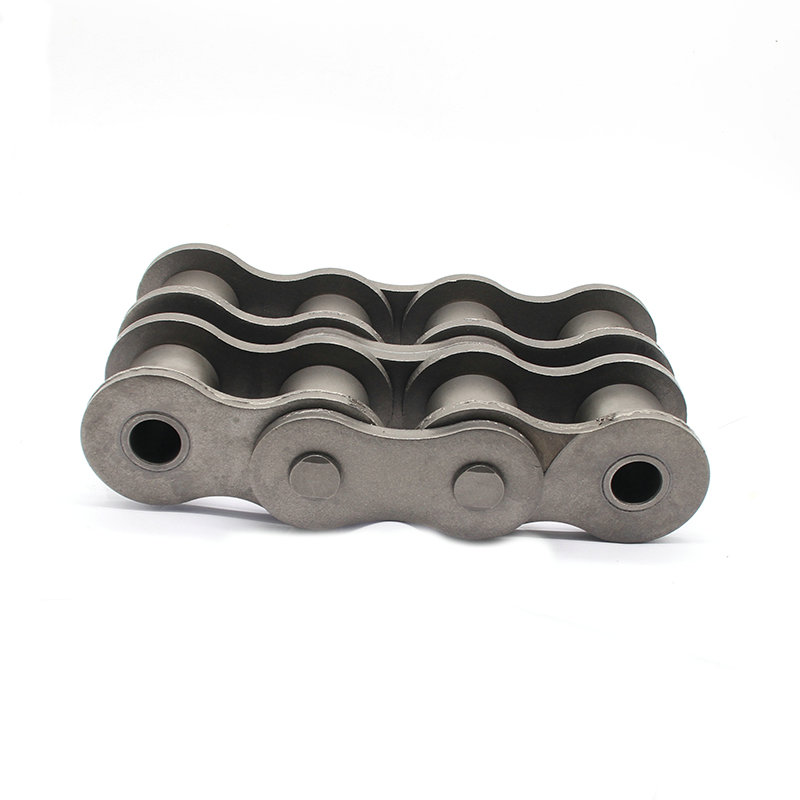

X3 series high performance roller chains are based on optimized design , advanced technology and excellent quality control, fatigue strength is 60 percent more than IS0 606 standard roller chain of the same specification, and the wear resistant is increased.

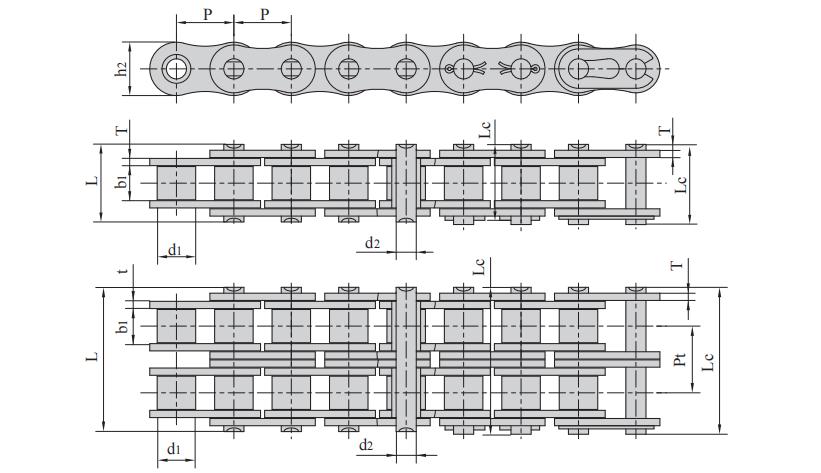

| Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Inner plate depth | Plate thickness | Transverse pitch | Tensile strength | Average tensile strength | Weight per meter | |
| P | d1 max | b1 min | d max | L max | Lc max | h2 max | t/T | Pt | Q min | Q0 | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | kN | kg/m | |
| *06BX3-1 | 9.525 | 6.35 | 5.72 | 3.28 | 13.15 | 14.10 | 8.20 | 1.30 | - | 10.0/2248 | 11.00 | 0.43 |
| 08BX3-1 | 12.700 | 8.51 | 7.75 | 4.45 | 16.70 | 18.20 | 11.80 | 1.60 | - | 21.0/4721 | 23.10 | 0.74 |
| 10BX3-1 | 15.875 | 10.16 | 9.65 | 5.08 | 19.50 | 20.90 | 14.70 | 1.70 | - | 28.5/6407 | 31.35 | 1.00 |
| 12BX3-1 | 19.050 | 12.07 | 11.68 | 5.72 | 22.50 | 24.20 | 16.00 | 1.85 | - | 33.0/7418 | 36.30 | 1.23 |
| 16BX3-1 | 25.400 | 15.88 | 17.02 | 8.28 | 36.10 | 37.40 | 21.00 | 4.15/3.10 | - | 70.0/15736 | 77.00 | 2.90 |
| 20BX3-1 | 31.750 | 19.05 | 19.56 | 10.19 | 41.30 | 45.00 | 26.50 | 4.50/3.50 | - | 106.7/23986 | 117.37 | 3.96 |
| 24BX3-1 | 38.100 | 25.40 | 25.40 | 14.63 | 53.40 | 57.80 | 33.20 | 6.00/4.80 | - | 176.0/39565 | 193.60 | 7.60 |
| 28BX3-1 | 44.450 | 27.94 | 30.99 | 15.90 | 65.10 | 69.50 | 36.70 | 7.50/6.00 | - | 230.0/51704 | 253.00 | 9.10 |
| 32BX3-1 | 50.800 | 29.21 | 30.99 | 17.81 | 66.00 | 71.00 | 42.00 | 7.00/6.00 | - | 280.0/62944 | 308.00 | 10.97 |
| 06BX3-2 | 9.525 | 6.35 | 5.72 | 3.28 | 23.40 | 24.40 | 8.20 | 1.30 | 10.24 | 18.5/4159 | 20.35 | 0.82 |
| 08BX3-2 | 12.700 | 8.51 | 7.75 | 4.45 | 31.00 | 32.20 | 11.80 | 1.60 | 13.92 | 36.0/8093 | 39.60 | 1.43 |
| 10BX3-2 | 15.875 | 10.16 | 9.65 | 5.08 | 36.10 | 37.50 | 14.70 | 1.70 | 16.59 | 55.6/12499 | 61.16 | 1.97 |
| 12BX3-2 | 19.050 | 12.07 | 11.68 | 5.72 | 42.00 | 43.60 | 16.00 | 1.85 | 19.46 | 63.5/14275 | 69.85 | 2.47 |
| 16BX3-2 | 25.400 | 15.88 | 17.02 | 8.28 | 68.00 | 69.30 | 21.00 | 4.15/3.10 | 31.88 | 121.9/27403 | 134.09 | 5.80 |
| 20BX3-2 | 31.750 | 19.05 | 19.56 | 10.19 | 7.80 | 81.50 | 26.50 | 4.50/3.50 | 36.45 | 211.2/47478 | 232.32 | 7.70 |
| 24BX3-2 | 38.100 | 25.40 | 25.40 | 14.63 | 101.70 | 106.20 | 33.20 | 6.00/480 | 48.36 | 308.0/69238 | 338.80 | 14.34 |
| 28BX3-2 | 44.450 | 27.94 | 30.99 | 15.90 | 124.60 | 129.10 | 36.70 | 7.50/6.00 | 59.56 | 414.0/93067 | 455.40 | 17.76 |
| 32BX3-2 | 50.800 | 29.21 | 30.99 | 17.81 | 124.60 | 129.60 | 42.00 | 7.00/6.00 | 58.55 | 504.0/113299 | 554.40 | 22.47 |
| *Straight side plates | ||||||||||||
