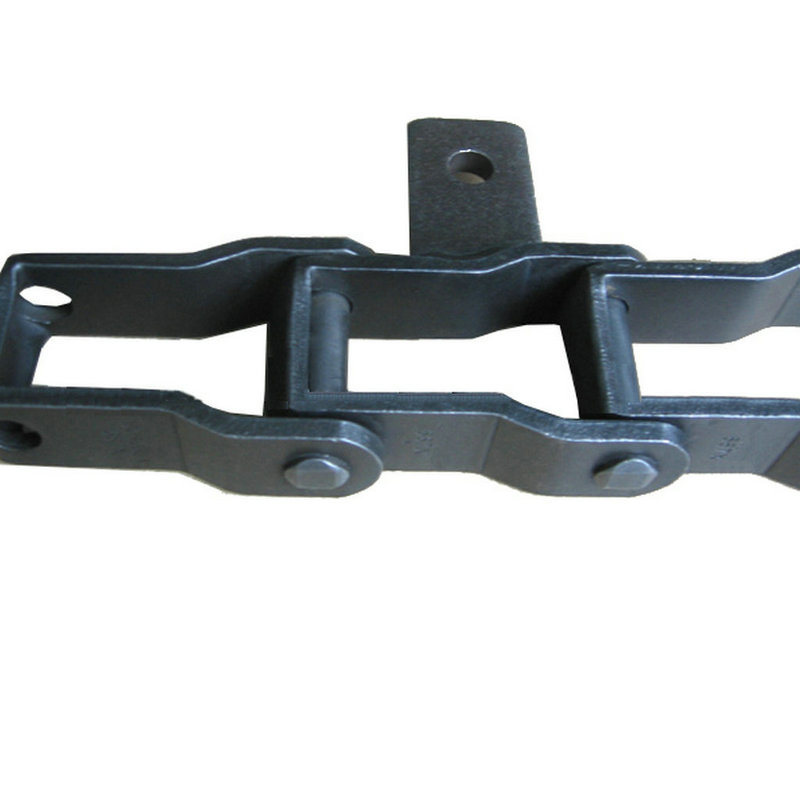

Type:Steel Pintle Chain Attachments
Material:steel
Configuration:roller
Other characteristics:lube-free, heat-resistant
Chain pitch:18.2MM-66.27MM

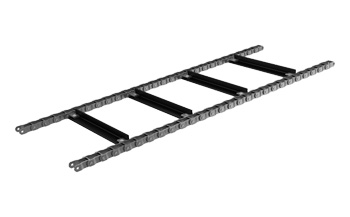

This chain is mostly used for snow sweepers in European and American airports, with a wide prospect
Available in Roller Chain and Conveyor Chain specifications.

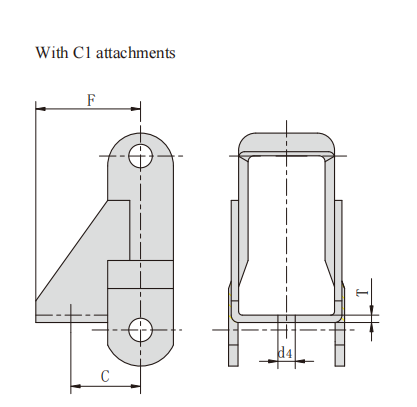

| Chain No. | C | F | d4 | T |
| mm | mm | mm | mm | |
| 662 | 22.90 | 37.2 | 7.00 | 2.8 |
| 667H | 25.40 | 38.9 | 7.00 | 4.8 |
| 667X | 29.50 | 39.7 | 7.00 | 4.8 |

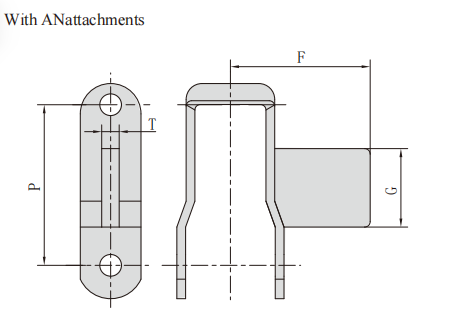

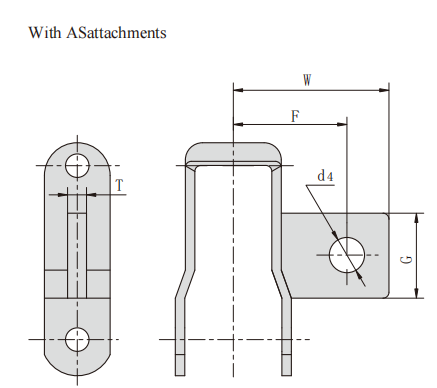

| Chain No. | G | F | W | d4 | T |
| mm | mm | mm | mm | ||
| 662-A SF2 | 18.2 | 35.9 | 48.4 | 7.00 | 4.3 |
| 662-ASF3 | 23.8 | 34.9 | 48.0 | 6.75 | 4.8 |
| 662 | 24.2 | 35.9 | 48.4 | 7.00 | 4.3 |
| 667H-ASF9 | 28.6 | 51.6 | 65.9 | 8.33 | 6.4 |
| 667XH-KSF5 | 28.6 | 47.7 | 59.2 | 9.50 | 6.4 |
| 88C-KSF5 | 28.6 | 47.7 | 60.5 | 9.50 | 6.4 |
| 667H-ASF10 | 28.6 | 51.6 | 65.9 | 9.90 | 6.4 |
| 667X-A SF8 | 28.6 | 51.6 | 68.3 | 9.90 | 7.9 |
| 667H-ASF5 | 28.7 | 51.9 | 66.6 | 8.40 | 6.5 |
| 667X-ASF7 | 29.0 | 46.9 | 63.7 | 8.50 | 8.0 |
| 667H | 29.7 | 51.6 | 66.6 | 8.50 | 6.4 |
| 667X | 29.7 | 51.6 | 69.0 | 8.50 | 7.9 |
| 667-ASF1 | 29.7 | 51.6 | 69.0 | 8.50 | 4.3 |
| 667H-ASF2 | 29.7 | 51.6 | 66.6 | 8.50 | 6.4 |
| 667X-ASF14 | 30.0 | 55.0 | 73.0 | 10.30 | 8.0 |
| 667K-ASF6 | 31.5 | 50.5 | 71.5 | 11.90 | 10.0 |
| 667XH-AS | 31.8 | 51.6 | 69.9 | 9.90 | 9.5 |
| 667XH-ASF3 | 31.8 | 51.6 | 69.9 | 11.90 | 9.5 |
| 88C-ASF2 | 31.8 | 51.6 | 71.4 | 9.90 | 9.5 |
| 88C-ASF3 | 31.8 | 51.6 | 71.4 | 11.50 | 9.5 |
| 667XH-ASF4 | 31.8 | 51.6 | 69.8 | 11.50 | 9.5 |
| 667K-ASF8 | 31.8 | 51.6 | 71.4 | 11.90 | 9.5 |
| 667XH-ASF7 | 31.8 | 51.6 | 69.9 | 9.92 | 9.6 |
| 667K | 32.5 | 51.6 | 72.2 | 10.00 | 9.5 |
| 88K | 32.5 | 51.6 | 72.2 | 10.00 | 9.5 |
| 88C | 32.5 | 51.6 | 72.2 | 10.00 | 9.5 |

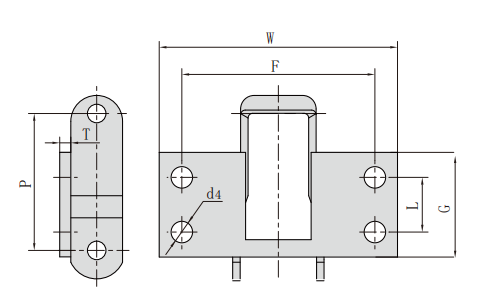

| Chain No. | P | G | F | L | W | d4 | T |
| mm | mm | mm | mm | mm | mm | mm | |
| 662 | 42.27 | 24.2 | 34.9 | 15.9 | 60.3 | 6.75 | 4.3 |
| 88C | 66.27 | 32.5 | 54.0 | 63.5 | 136.5 | 9.92 | 9.5 |
| 88K | 66.27 | 32.5 | 54.0 | 63.5 | 136.5 | 9.92 | 9.5 |
| Chain No. | P | G | F | T |
| mm | mm | mm | mm | |
| 662 | 42.27 | 24.2 | 47.6 | 4.3 |
| 667H | 58.75 | 29.7 | 69.0 | 6.4 |
| 667X | 57.15 | 29.7 | 68.3 | 7.9 |
| 667K | 57.15 | 32.5 | 68.3 | 9.5 |
| 88K | 66.27 | 32.5 | 68.3 | 9.5 |

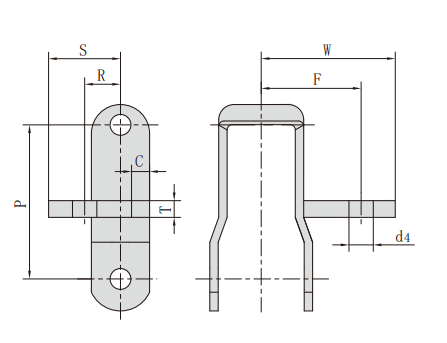

| Chain No | Attachment No. | P | R | S | F | W | d4 | T | C |
| mm | mm | mm | mm | mm | mm | mm | mm | ||
| 662 | G28 | 42.27 | 20.6 | 33.3 | 31.8 | 43.7 | 6.75 | 6.4 | 4.8 |
| 662 | G30 | 42.27 | 19.1 | 33.3 | 33.3 | 48.0 | 8.33 | 6.4 | 4.8 |
| 662 | G30S | 42.27 | 19.1 | 33.3 | 33.3 | 48.0 | 8.73 | 6.4 | 4.8 |
| 667H | G27S | 58.75 | 19.1 | 31.8 | 51.6 | 65.9 | 9.92 | 6.4 | 6.4 |

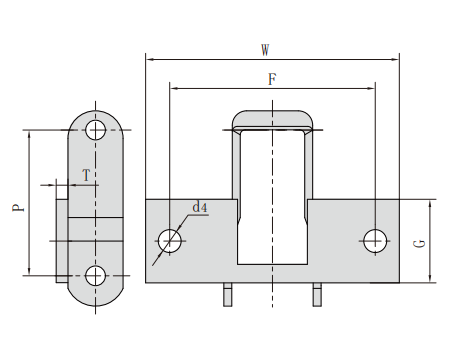

| Chain No | Attachment No. | P | G | F | W | d4 | T |
| mm | mm | mm | mm | mm | mm | ||
| 662 | K1 | 42.27 | 34.9 | 62.7 | 82.6 | 6.75 | 3.2 |
| 662 | K19 | 42.27 | 34.9 | 50.8 | 71.4 | 6.75 | 3.2 |
| 667X | K1 | 57.15 | 34.9 | 62.7 | 82.6 | 6.75 | 3.2 |
| 667H | K1 | 58.75 | 34.9 | 62.7 | 82.6 | 6.75 | 3.2 |

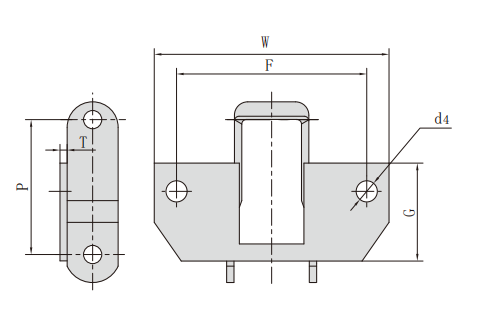

| Chain No | Attachment No. | P | G | F | W | d4 | T |
| mm | mm | mm | mm | mm | mm | ||
| 88K | K1C | 66.27 | 47.6 | 95.3 | 127.0 | 9.92 | 4.8 |
| 88K | K1M | 66.27 | 47.6 | 101.6 | 127.0 | 9.92 | 4.8 |
| 88K | K1P | 66.27 | 47.6 | 96.8 | 127.0 | 9.92 | 4.8 |

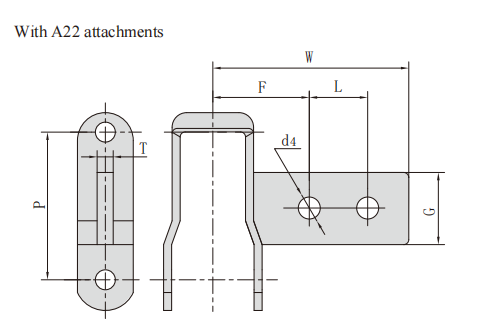

| Chain No | Attachment No. | P | L | G | F | W | d4 | T |
| mm | mm | mm | mm | mm | mm | mm | ||
| 88K | K2C | 66.27 | 31.8 | 57.2 | 106.4 | 127.0 | 9.92 | 4.8 |
| 88K | K2M | 66.27 | 31.8 | 57.2 | 101.6 | 127.0 | 9.92 | 4.8 |
| 88K | K2P | 66.27 | 31.8 | 57.2 | 92.0 | 127.0 | 9.92 | 4.8 |
