OIC-5-2-220 Swing Gate Opener

OIC-5-2-220 is a 220V AC swing gate opener for dual-leaf residential and light commercial gates. It features a powerful low-noise motor with built-in thermal protection, electronic infrared photocell anti-crush and auto-reverse on obstacle, and a key-operated manual release that works without a backup battery. The main body uses high-quality ABS and spray-painted aluminium. Suitable for gate automation projects requiring smooth starting, high torque and simple installation. OEM/ODM, wholesale and sample orders supported.

Send Inquiry

Product Description

OIC-5-2-220 Swing Gate Opener — 220V Automatic Gate Motor

A reliable 220V AC swing gate opener for dual-leaf residential and light commercial gates. Powerful low-noise motor, built-in thermal protection, photocell anti-crush safety, and key-operated manual release that works without a backup battery.

220V AC Dual-leaf swing gates ABS + spray-painted aluminium Thermal protection Photocell anti-crush No backup battery needed

OIC-5-2-220 Swing Gate Opener — 220V Automatic Gate Motor

OIC-5-2-220 swing gate opener — ABS + spray-painted aluminium main body

220V ACPower supply

Dual-leafGate type

Self-lockingMotor design

Key releaseManual operation

PhotocellAnti-crush safety

OEM/ODMSupply mode

Product Views

The OIC-5-2-220 has a compact, refined main body made of high-quality ABS and spray-painted aluminium, designed for long outdoor service on residential and light commercial swing gates.

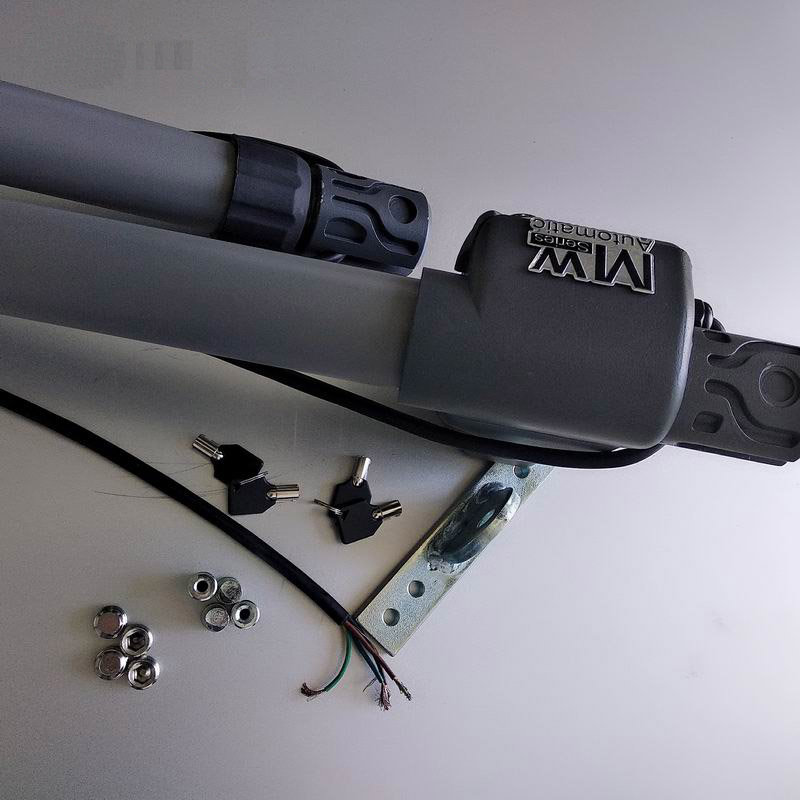

OIC-5-2-220 swing gate opener front view

Main body — high-quality ABS + spray-painted aluminium housing with elegant appearance

OIC-5-2-220 swing gate opener 220V AC automatic gate motor

220V AC low-noise motor — smooth starting, high torque, reliable daily operation

Product Overview

The OIC-5-2-220 is designed for smooth, quiet and reliable automation of swing gates. Its main body is made of high-quality ABS and spray-painted aluminium, giving it a refined appearance and durable outdoor performance. The motor starts smoothly, delivers high torque and operates with low noise, making it suitable for residential driveways, courtyards and light commercial entrances.

For Homeowners

Convenient hands-free access, improved security, and a clean appearance that matches modern gate designs. The manual release lets you open the gate during a power failure without a backup battery.

For Installers & Distributors

Simple installation, easy maintenance, and stable performance. Suitable for residential and light commercial gate automation projects. Wholesale and OEM/ODM supply available.

Key Features

Powerful Low-Noise Motor Starts smoothly, delivers high torque and runs quietly for comfortable daily use.

Built-in Thermal Protector Automatically cuts power when the motor reaches rated temperature, protecting the motor from overheating.

Photocell Anti-Crush Electronic infrared anti-crush and auto-reverse on obstacle to ensure pedestrian safety.

Key-Operated Manual Release Self-locking motor. Turn the key and pull the black bar to move the gate by hand — no backup battery required.

ABS + Aluminium Housing High-quality ABS and spray-painted aluminium main body for a refined look and durable outdoor use.

Simple Installation Straightforward mounting and easy maintenance reduce installation time and service cost.

Technical Specifications

OIC-5-2-220 swing gate opener — key parameters
Parameter	Value
Model	OIC-5-2-220
Product type	Swing gate opener / swing gate motor
Power supply	220V AC
Gate type	Dual-leaf swing gates
Application	Residential and light commercial gate automation
Housing material	High-quality ABS + spray-painted aluminium
Motor characteristics	Powerful, smooth starting, high torque, low noise
Thermal protection	Built-in thermal protector; auto power cut at rated temperature
Safety	Photocell circuit with electronic infrared anti-crush and auto-reverse on obstacle
Manual release	Self-locking motor; key turn 90° + pull black bar 60-90° (>45°); no backup battery
Installation	Simple installation, easy maintenance
Supply	Wholesale, OEM/ODM, sample orders

Final electrical and mechanical parameters are confirmed by the official datasheet. Send your gate width, gate weight and leaf type for a configuration check.

Safety Features

Motor Thermal Protection

When the motor heats up to its rated temperature, the built-in thermal protector automatically cuts the power supply to prevent overheating and extend motor life.

Photocell Anti-Crush & Auto-Reverse

The photocell circuit provides electronic infrared anti-crush protection. If an obstacle is detected during gate movement, the gate automatically reverses to ensure pedestrian safety.

How to Manually Release in a Power Failure

Turn the key clockwise 90° Insert the release key and turn it clockwise 90 degrees.
Pull the black release bar Pull the black bar about 60-90 degrees (more than 45 degrees).
Move the gate by hand The gate can now be moved manually. No backup battery is required.

Installation & Compatibility

The OIC-5-2-220 is designed for straightforward installation on dual-leaf swing gates. Before ordering, confirm the gate leaf width, gate weight, hinge type and opening direction so the correct configuration can be supplied.

Gate Type

Dual-leaf swing gates for residential driveways, courtyards and light commercial entrances.

Before Ordering

Confirm gate leaf width, gate weight, hinge type, opening direction and power supply.

Accessories

Photocell, release key and mounting hardware. Ask for a complete kit quotation if needed.

Ordering & Supply Information

What to send for a fast quotation

Quantity, gate leaf width and weight, gate type, opening direction, power supply, destination port and OEM/packaging requirements.

Supply terms

Sample and trial orders accepted. Wholesale and OEM/ODM supported. Export packing available. Lead time depends on order quantity and stock status — confirm per order.

Frequently Asked Questions

What is the OIC-5-2-220 swing gate opener used for?

The OIC-5-2-220 is a 220V AC swing gate opener for dual-leaf residential and light commercial gates. It automates gate opening and closing with smooth starting, high torque and low noise.

Does the OIC-5-2-220 need a backup battery?

No. The motor is self-locking. In a power failure, turn the key clockwise 90 degrees and pull the black bar about 60-90 degrees (more than 45 degrees), then the gate can be moved by hand. No backup battery is required for manual release.

What safety features does the OIC-5-2-220 have?

It has a built-in thermal protector that cuts power when the motor reaches rated temperature, and a photocell circuit with electronic infrared anti-crush and auto-reverse on obstacle to protect pedestrians.

What is the housing made of?

The main body uses high-quality ABS and spray-painted aluminium for durability and a refined appearance.

Can I order samples or OEM versions?

Yes. Raydafon supports sample orders, wholesale supply and OEM/ODM customization. Send quantity, gate width and weight, leaf type and destination port for a quotation.

Get Your OIC-5-2-220 Swing Gate Opener Quote

Send quantity, gate leaf width and weight, gate type and destination port. Our team confirms the correct configuration and returns a quotation quickly.

Request Price & Configuration Chat on WhatsApp
