| OIC-EB-750(Three Phase) | |
| Supply Voltage(V) | AC380V |
| Motor Power(W) | 750W |
| Torque | 38Nm |
| Maximum Weight Of Gate | 1500kg |
| Motor Rotation Speed(Rated) | 1400r/min |
| Gate Speed | 12M/Minute |
| Limit Switch | Spring switch/magnetic switch |
| Noise | ≤56dB |
| Operating Environment Temperature | -45℃～65℃ |
| Certificates | CCC, CE |
| With exquisite appearance,the main body of the high quality ABS and Aluminium through spray painting | |||||||
| The motor is powerful,starts smoothly,has big torque and low noise,and is smooth and reliable when operating. | |||||||
| With built-in thermal protector(the motor will automatically cut off power supply for protection when the motor heat up to rated temperature). | |||||||

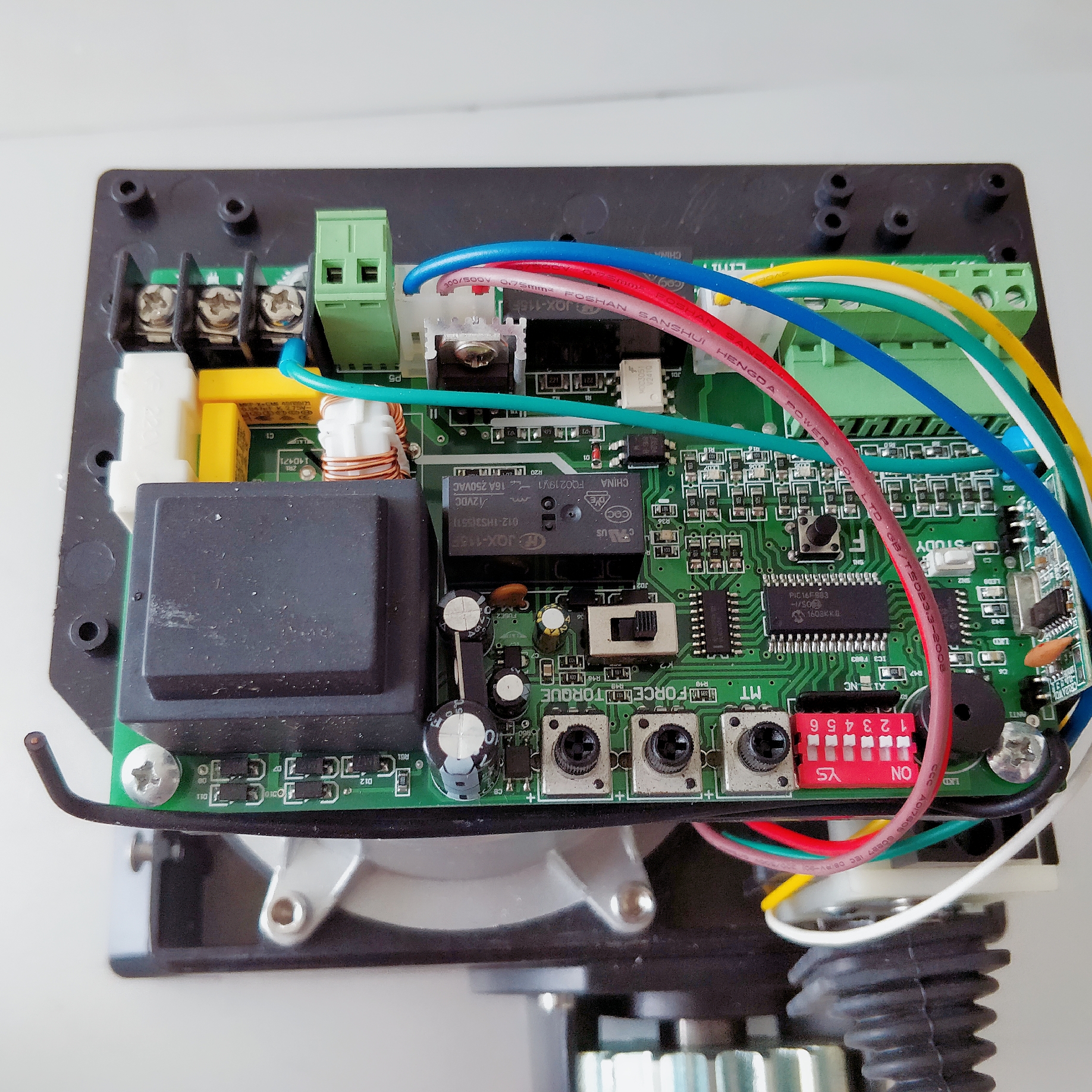

| The circuit of the Photocell has the functions of electronic infrared ray collision prevention and electronic reversion when meeting obstacle so as to ensure pedestrians' safety. | |||||||
| Our motor is self-locking. If there is short of electric power, you only need to turn the key clockwise 90 degree, then pull the black bar about 60-90degree(more than 45 degree), then the door can move by hand. No need backup battery. | |||||||
| Installation is simple,easy maintenance. | |||||||
