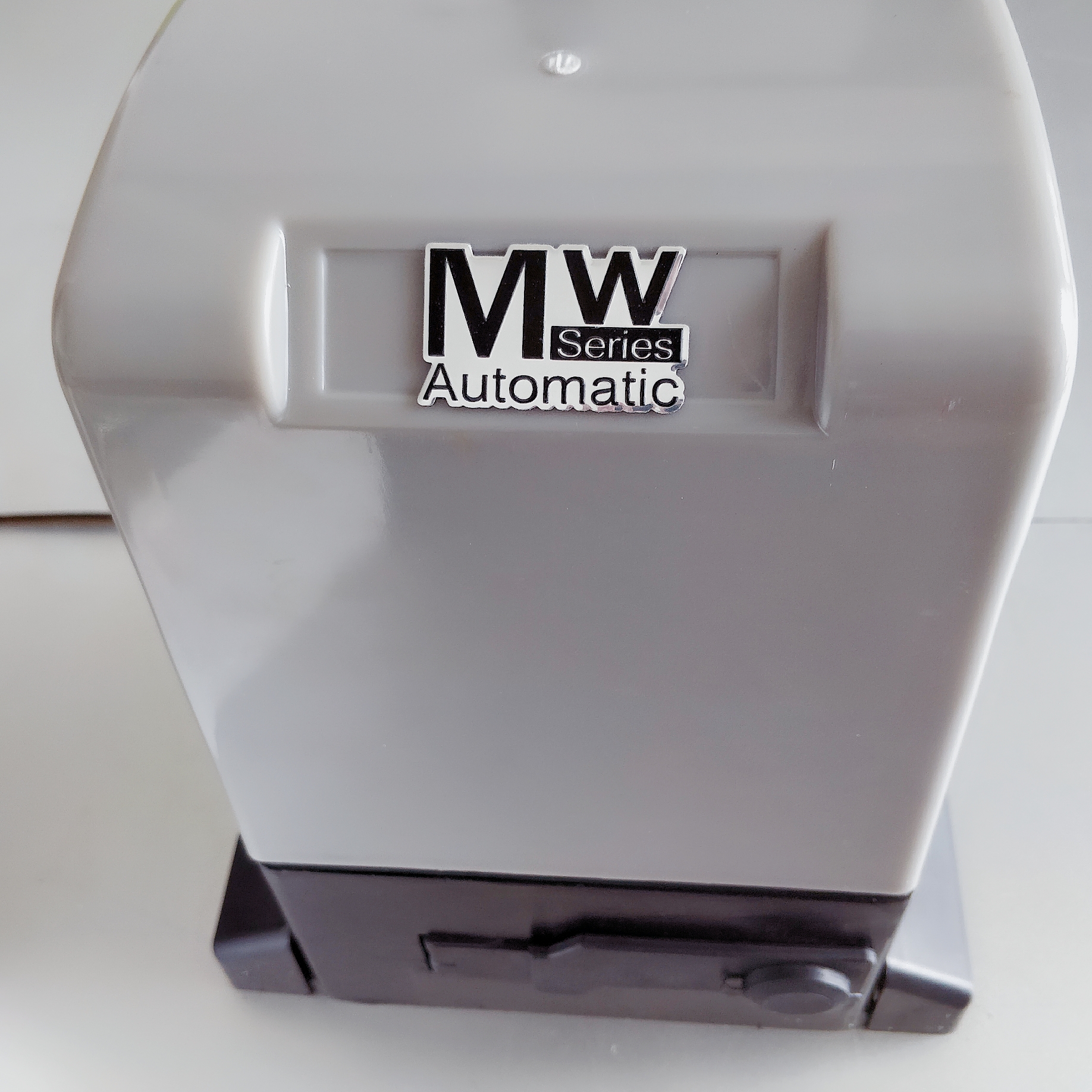

OIC-EA-750(Single Phase) Sliding Door Motor

Discover the OIC-EA-750(Single Phase) Sliding Door Motor by Raydafon Group: a reliable, energy-efficient solution for smooth and quiet sliding door operation. Perfect for homes and businesses, it enhances convenience and security with durable construction, easy installation, and superior performance. Upgrade your space with Raydafon Group's trusted innovation!

Send Inquiry

Product Description

OIC-EA-750(Single Phase)
Supply Voltage(V)	AC230/120V
Motor Power(W)	750W
Torque	35Nm
Maximum Weight Of Gate	1200kg
Motor Rotation Speed(Rated)	1400r/min
Gate Speed	12M/Minute
Limit Switch	Spring switch/magnetic switch
Noise	≤56dB
Operating Environment Temperature	-45℃～65℃
Certificates	CCC, CE

With exquisite appearance,the main body of the high quality ABS and Aluminium through spray painting

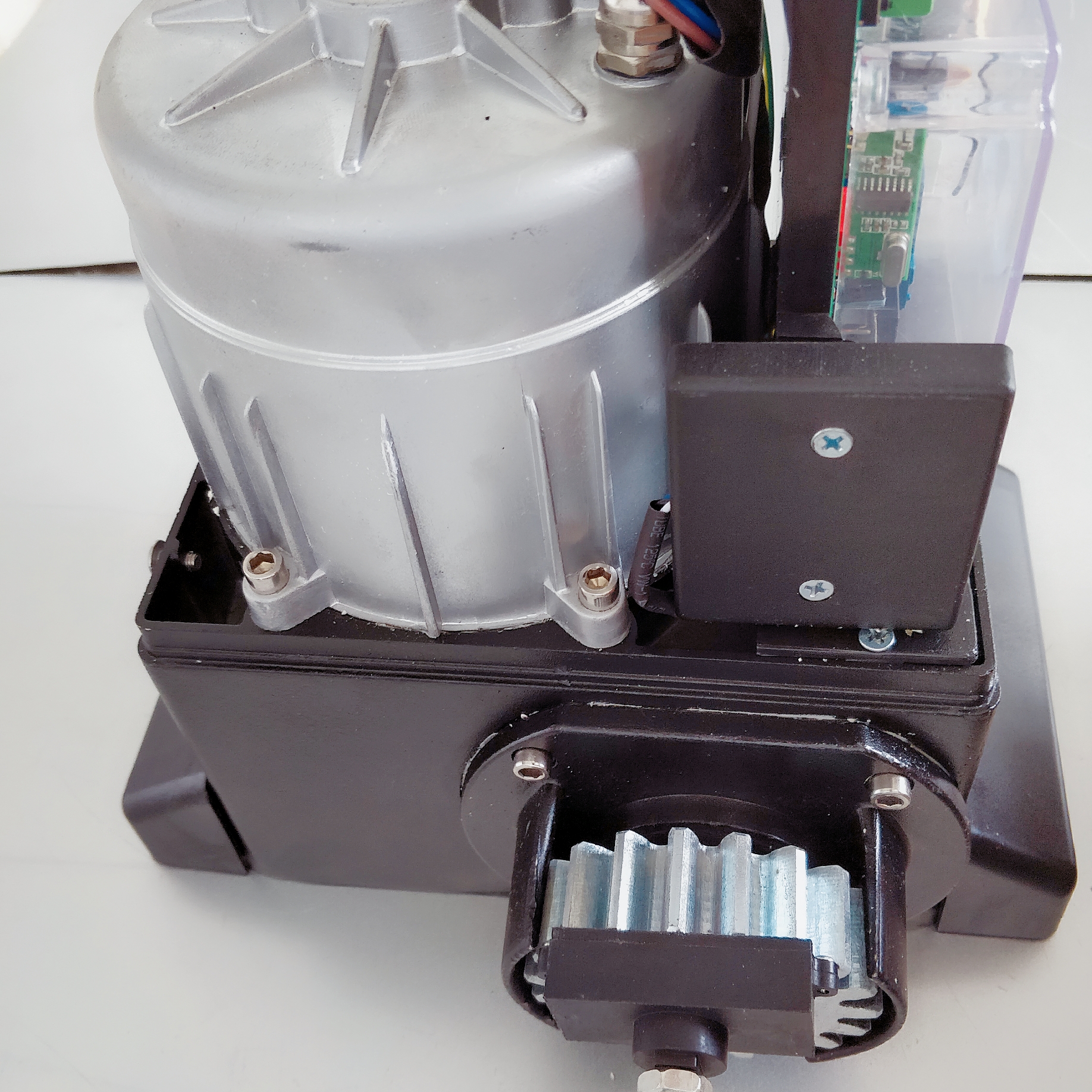

The motor is powerful,starts smoothly,has big torque and low noise,and is smooth and reliable when operating.
With built-in thermal protector(the motor will automatically cut off power supply for protection when the motor heat up to rated temperature).

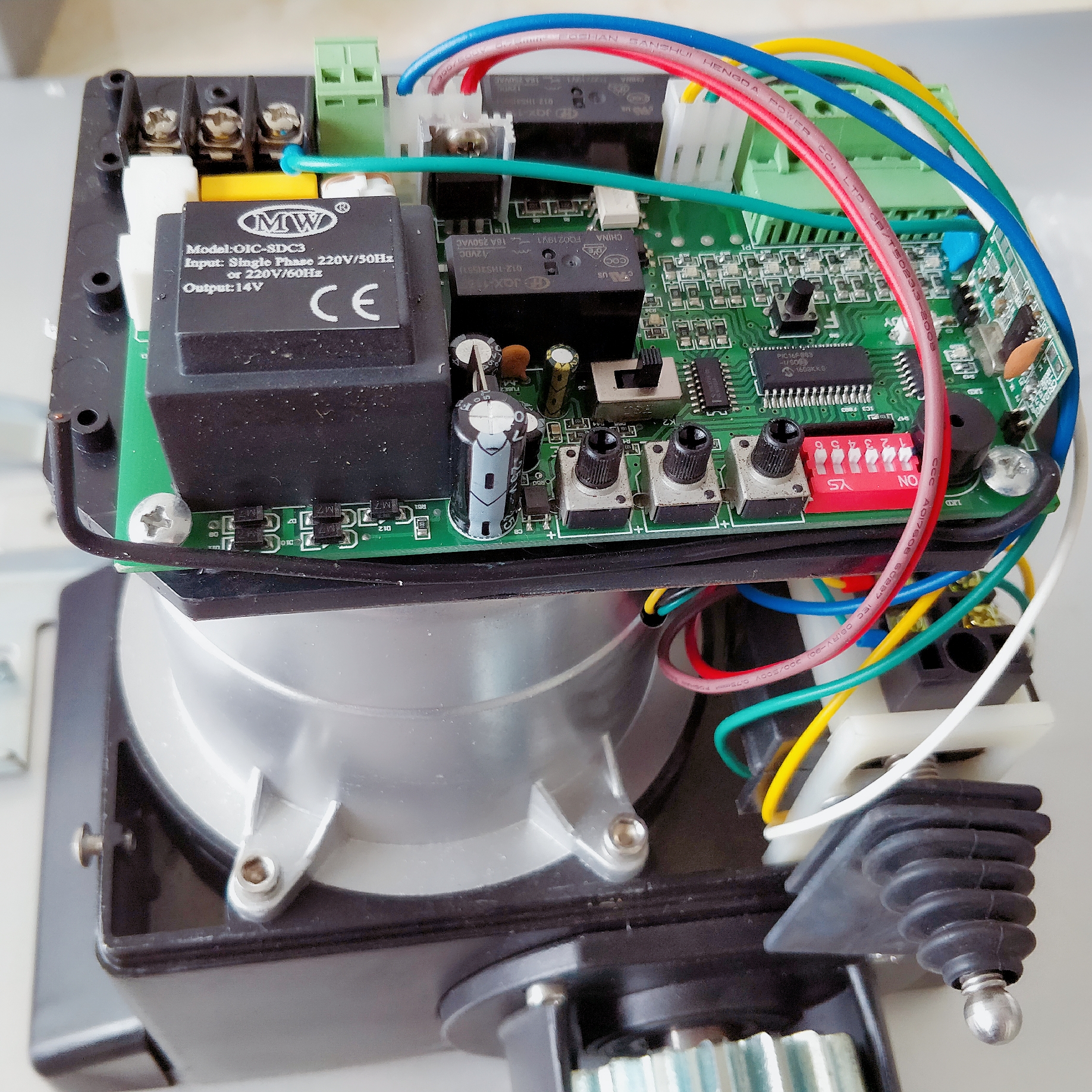

The circuit of the Photocell has the functions of electronic infrared ray collision prevention and electronic reversion when meeting obstacle so as to ensure pedestrians' safety.
Our motor is self-locking. If there is short of electric power, you only need to turn the key clockwise 90 degree, then pull the black bar about 60-90degree(more than 45 degree), then the door can move by hand. No need backup battery.

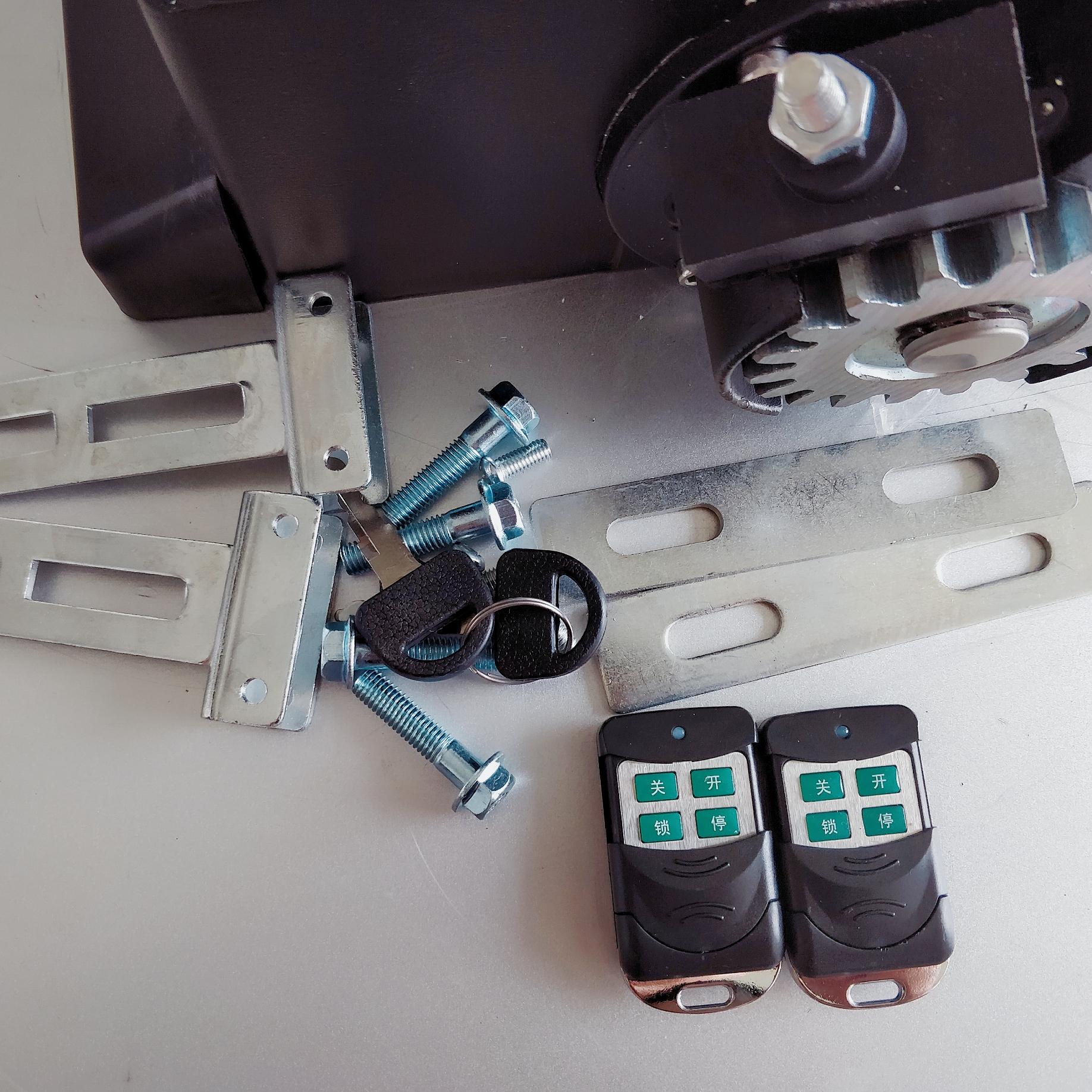

Installation is simple,easy maintenance.
