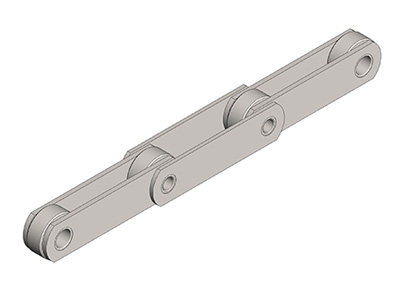

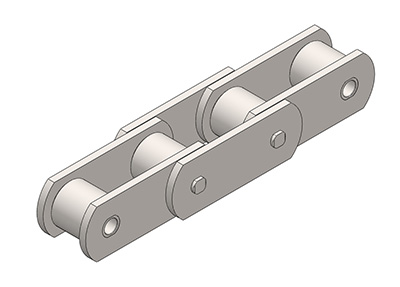

Hollow Pin Conveyor Chains (MT Series)

Metric (M series) conveyor chain conforms to ISO and DlN standards, mainly including M type conveyor chain, MT type conveyor chain and MC type hollow pin shaft conveyor chain: Metric conveyor chain refers to roller chain or sleeve chain whose chain pitch is metric integer (various pitches ranging fr......

Metric (M series) conveyor chain conforms to ISO and DlN standards, mainly including M type conveyor chain, MT type conveyor chain and MC type hollow pin shaft conveyor chain:

 Metric conveyor chain refers to roller chain or sleeve chain whose chain pitch is metric integer (various pitches ranging from 40 mm to 1000 mm). The rollers have various structural forms, and various accessories are arranged according to the service conditions

M-type is solid pin conveyor chain, MC-type is hollow pin conveyor chain, MT-type is large roller heightening chain plate conveyor chain, and MC-type and MT-type chain shave two kinds of products with tensile strength indexes for users to choose from.

Products are widely used in mechanical conveying and loading and unloading equipment in metallurgy, mining, sugar making, wine making, ceramics, paper making and other industries.

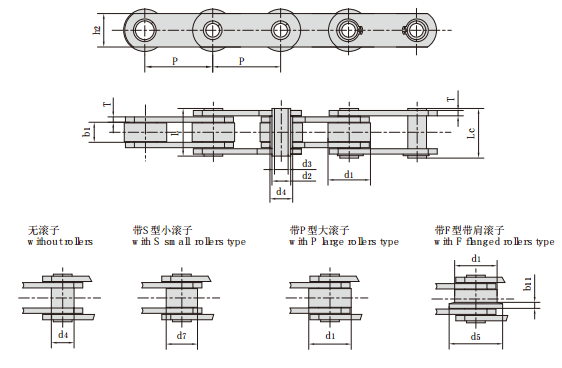

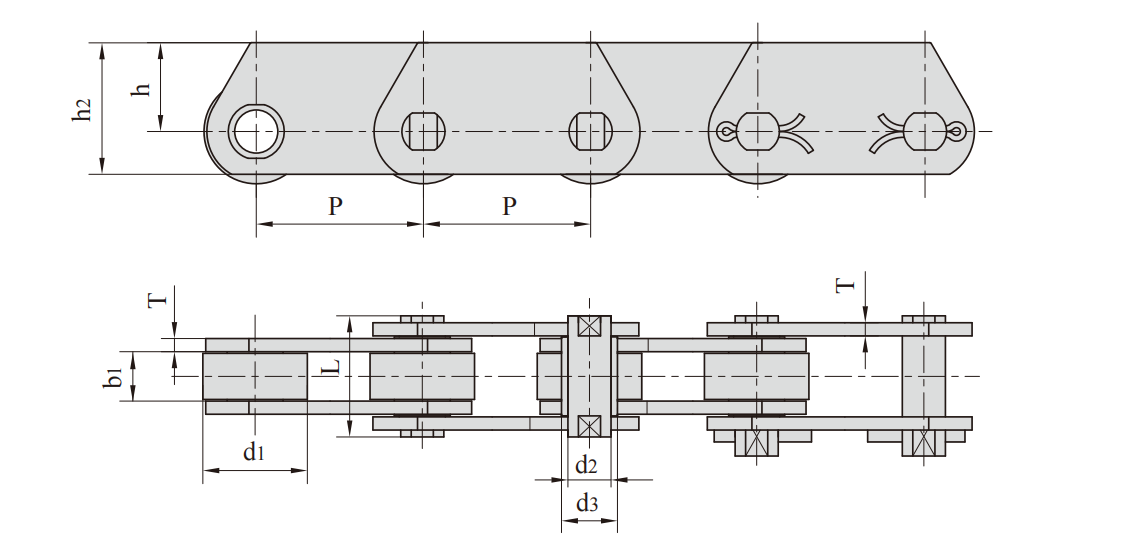

  Hollow Pin Conveyor Chains (MT Series)

DIN
Chain No
Pitch Roller
diameter
Pin
diameter
Bush
diameter
Plate
thickness
P d1
max
d2
max
d3
max
T
max
mm mm mm mm mm
MT20 40.0 50.0 63.0 80.0 100.0 25.0 6.0 9.0 2.5
MT28 50.0 63.0 80.0 100.0 125.0 30.0 7.0 10.0 3.0
MT40 63.0 80.0 100.0 125.0 160.0 36.0 8.5 12.5 3.5
MT56 63.0 80.0 100.0 125.0 160.0 42.0 10.0 15.0 4.0
MT80 80.0 100.0 125.0 160.0 200.0 50.0 12.0 18.0 5.0
MT112 80.0 100.0 125.0 160.0 200.0 60.0 15.0 21.0 6.0
MT160 100.0 125.0 160.0 200.0 250.0 70.0 18.0 25.0 7.0
MT224 125.0 160.0 200.0 250.0 315.0 85.0 21.0 30.0 8.0
MT315 160.0 200.0 250.0 315.0 400.0 100.0 25.0 36.0 10.0
MT450 200.0 250.0 315.0 400.0 500.0 120.0 30.0 42.0 12.0
DIN
Chain No
Width
between
inner  plates
Pin
length
Plate
depth
Tensile
strength
b1
min
L
  max
h2
max
h
max
Q
min
*Q
min
mm   mm mm mm kN/lbf kN/lbf
MT20 16.0   35.0 25.0 16.0 20.0/4545 32.0/7270
MT28 18.0   40.0 30.0 20.0 28.0/6364 42.0/9545
MT40 20.0   45.0 35.0 22.5 40.0/9091 60.0/13635
MT56 24.0   52.0 45.0 30.0 56.0/12727 85.0/19318
MT80 28.0   62.0 50.0 32.5 80.0/18182 125.0/28408
MT112 32.0   73.0 60.0 40.0 112.0/25454 175.0/39768
MT160 37.0   85.0 70.0 45.0 160.0/36364 260.0/59090
MT224 43.0   98.0 90.0 60.0 224.0/50909 340.0/77272
MT315 48.0  112.0 100.0 65.0 315.0/71591 520.0/118180
MT450 56.0  135.0 120.0 80.0 450.0/102272 700.0/159089
*Q denotes the tensile strength after hardened
