Timing silent chains for automobile engine
Silent chain for engine timing is mainly used for automobile engine timing system. The chain is the key engine component with excellent performances such as high strength, durability and silencing and so on.

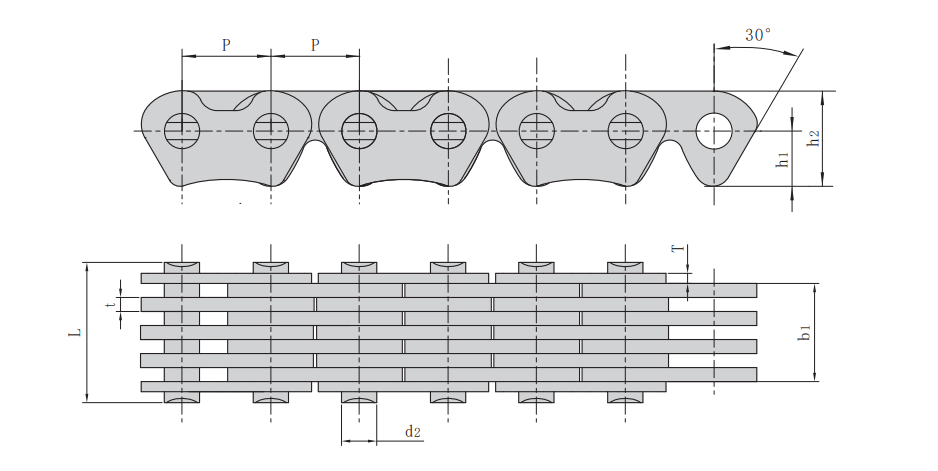

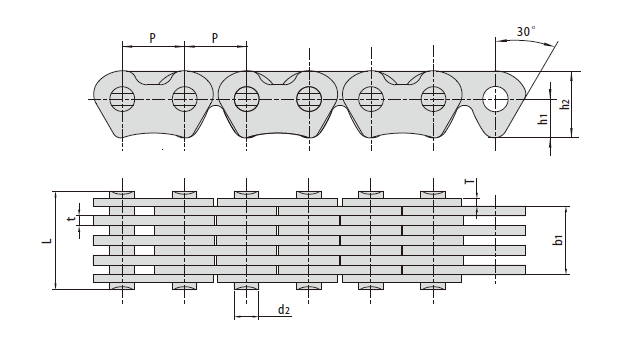

| Chain No. | Pitch | Chain width | Pin diameter | Pin length | Plate depth | Plate thickness | Guide form | Number of plate | Tensile strength | Weight per meter | |
| P | b1 min | d2 max | L max | h2 max | t max | T max | n | min | q | ||
| mm | mm | mm | mm | mm | mm | mm | kN/lbf | kg/m | |||
| CL04DF3 | 6.35 | 7.80 | 2.70 | 11.20 | 7.13 | 1.04/1.40 | 1.04 | Outside | 8(4×4) | 10.0/2250 | 0.38 |
| 6.35 | 8.86 | 2.70 | 12.30 | 7.13 | 1.04/1.40 | 1.04 | Outside | 9(4×5) | 12.5/2813 | 0.41 | |
| CL04DF10 | 6.35 | 8.60 | 2.72 | 12.70 | 7.13 | 1.20 | 1.20 | Outside | 9(5×4) | 12.0/2700 | 0.41 |
| CL05D | 8.00 | 6.50 | 2.92 | 10.48 | 9.59 | 1.30 | 1.04 | Outside | 7(3×4) | 12.0/2700 | 0.46 |
| 8.00 | 7.80 | 2.92 | 11.78 | 9.59 | 1.30 | 1.04 | Outside | 8(4×4) | 16.0/3600 | 0.52 | |
| CL05V | 8.00 | 7.70 | 3.15 | 11.80 | 9.59 | 1.30 | 1.00 | Outside | 8(4×4) | 12.0/2700 | 0.48 |
