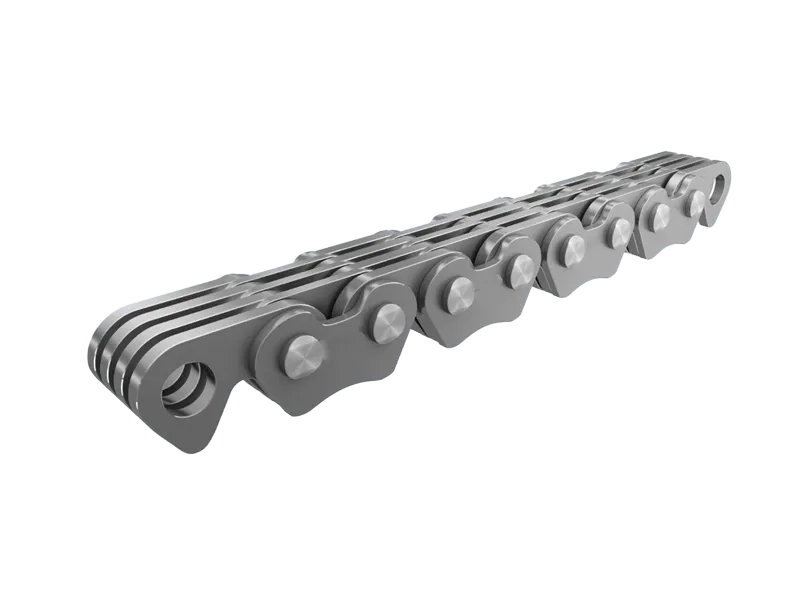

Timing Bush chain for engine timing is mainly used for diesel engine timing system and the balance shaft system etc.. Compared with the roller chain, it has simpler structuce and higher wear resistance.

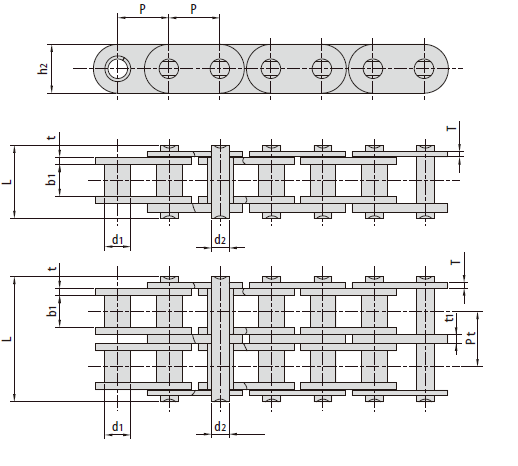

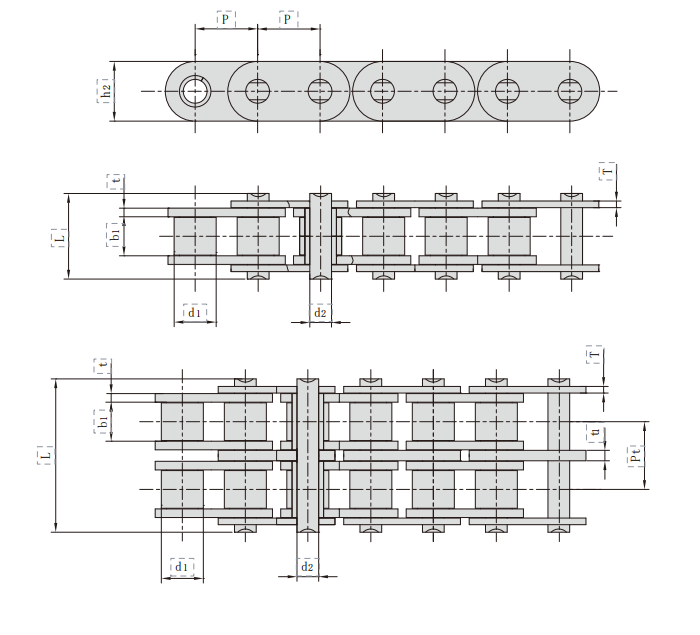

| Chain No. | Pitch | Bush diameter | Width between inner plates | Pin diameter | Pin length | Inner plate depth | Plate thickness | Transverse pitch | Tensile strength | Weight per meter | |
| P | max | b1 min | d2 max | L max | h2 max | t/t1 max | T max | Pt | min | q | |
| mm | mm | mm | mm | mm | mm | m m | mm | mm | kN/lbf | kg/m | |
| P7 | 7.000 | 4.00 | 3.50 | 2.70 | 9.60 | 6.8 | 1.15 | 1.00 | - | 6.9/1551 | 0.31 |
| P7F1 | 7.000 | 4.00 | 3.40 | 2.70 | 9.80 | 6.8 | 1.20 | 1.20 | - | 6.9/1551 | 0.33 |
| 05C | 8.000 | 5.00 | 4.76 | 3.15 | 11.80 | 7.6 | 1.30 | 1.00 | - | 8.5/1932 | 0.35 |
| 06D | 9.525 | 6.35 | 3.80 | 4.45 | 10.70 | 9.6 | 1.35 | 1.04 | - | 9.0/2024 | 0.41 |
| 06DTF1 | 9.525 | 6.35 | 5.72 | 4.45 | 14.25 | 9.6 | 1.80 | 1.30 | - | 14.5/3259 | 0.57 |
| 06DTF2 | 9.525 | 6.35 | 5.72 | 4.45 | 14.55 | 9.6 | 1.75 | 1.40 | - | 14.5/3259 | 0.60 |
| 06DF2-2 | 9.525 | 6.35 | 3.80 | 4.46 | 18.80 | 9.6 | 1.35/1.40 | 1.04 | 8.30 | 16.2/3641 | 0.76 |
| 06DF3-2 | 9.525 | 6.35 | 4.40 | 4.46 | 21.70 | 9.6 | 1.50 | 1.30 | 9.70 | 18.7/4203 | 0.86 |
