Rocker joint type silent chain is mainly used for four-wheel drive transfer case and gearbox drive system, which is the core component of the drive system. Special rocker joint pin dual-meshing design makes its structure different from the ordinary round pin type silent chain and thus reducing the polygon effect and noise effectively. This chain has superior performances such as high strength, high wear resistance and transmission of high torque in many conditions etc.

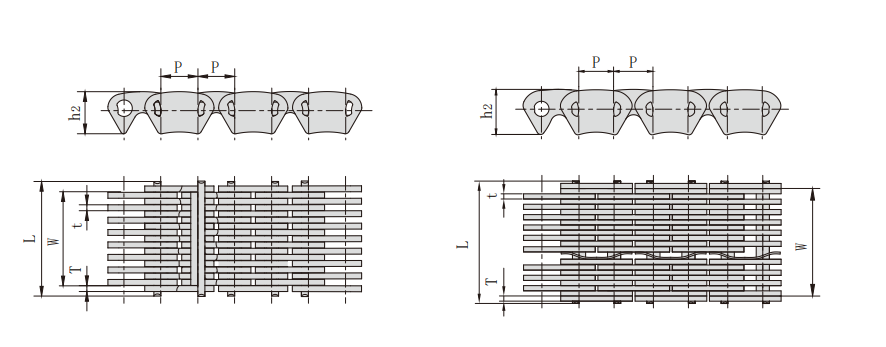

| Chain No | Pitch | Width Between Guides | Pin length | Plate depth | Plate thickness | Guide type | Number of plate | Tensile strength | Weight per meter | |
| P | W | L max | h2 max | t | T | n | Q min | q | ||
| mm | mm | mm | mm | mm | mm | kN/lbf | kg/m | |||
| HV3F3 | 9.525 | 18.24 | 22.20 | 10.90 | 1.54 | 1.54 | Outside | 13(6×7 | 36.0/8093 | 1.16 |
| 9.525 | 31.70 | 36.50 | 10.90 | 1.54 | 1.54 | Outside | 21(10×11) | 45.0/10116 | 1.79 | |
| HV3F4 | 9.525 | 20.30 | 25.90 | 10.90 | 1.54 | 1.54 | Outside | 15(7×8) | 31.0/6969 | 1.29 |
| 9.525 | 24.58 | 29.80 | 11.90 | 1.54 | 1.54 | Outside | 17(8×9) | 48.0/10790 | 1.60 | |
| HV3.5 | 11.113 | 24.80 | 30.00 | 14.27 | 1.54 | 1.20 | Outside | 17(8×9 | 58.0/13038 | 2.13 |
| 11.113 | 28.00 | 32.70 | 14.27 | 1.54 | 1.20 | Outside | 19(9×10) | 65.0/14612 | 2.38 | |
| 11.113 | 31.20 | 36.00 | 14.27 | 1.54 | 1.20 | Outside | 21(10×11) | 72.0/16186 | 2.53 | |
| SC180 | 11.113 | 31.40 | 36.33 | 13.52 | 1.55 | 1.55 | Outside | 21(9×12 | 72.0/16186 | 2.37 |
| 11.113 | 37.80 | 42.72 | 13.52 | 1.55 | 1.55 | Outside | 25(11×14) | 88.0/19782 | 2.88 | |
| 11.113 | 40.90 | 46.60 | 13.52 | 1.55 | 1.55 | Outside | 27(12×15) | 96.0/21581 | 1.09 | |
| HV4F1-10X11W | 12.700 | 32.90 | 38.20 | 14.50 | 1.54 | 1.54 | Outside | 21(10×11) | 47.3/10633 | 2.20 |
| HV4F1-16X17N | 12.700 | 52.40 | 57.00 | 14.50 | 1.54 | 2.00 | Inside | 33(16×17) | 86.0/19333 | 3.50 |
| HV6 | 19.050 | 72.30 | 81.30 | 20.89 | 2.00 | 2.00 | Outside | 35(17×18) | 174.0/39115 | 7.40 |
| 19.050 | 101.90 | 108.90 | 20.89 | 2.00 | 2.00 | Inside | 49(24×25) | 174.0/39115 | 10.12 | |
| HV6D | 19.050 | 38.5 | 50.30 | 27.00 | 2.00 | 2.00 | Outside | 21(10×11) | 104.0/23379 | 4.52 |
| HV8 | 25.400 | 140.30 | 158.80 | 27.74 | 3.10 | 3.10 | Outside | 47(23×24) | 534.0/120043 | 20.46 |
| HV8D | 25.400 | 102.00 | 110.0 | 36.00 | 3.00 | 3.00 | Inside | 34(16×18) | 385.0/86548 | 14.40 |
