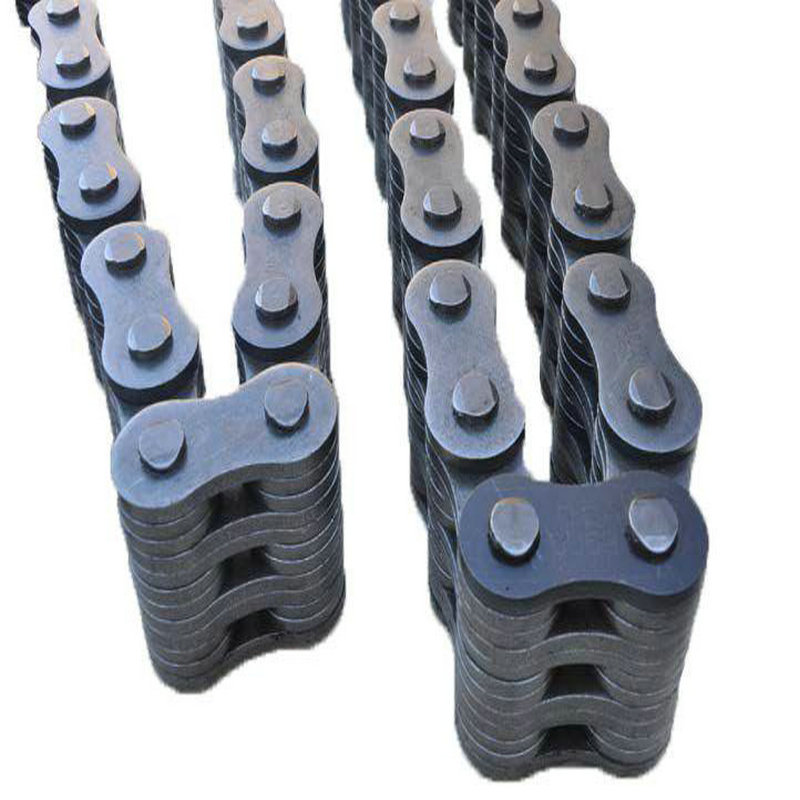

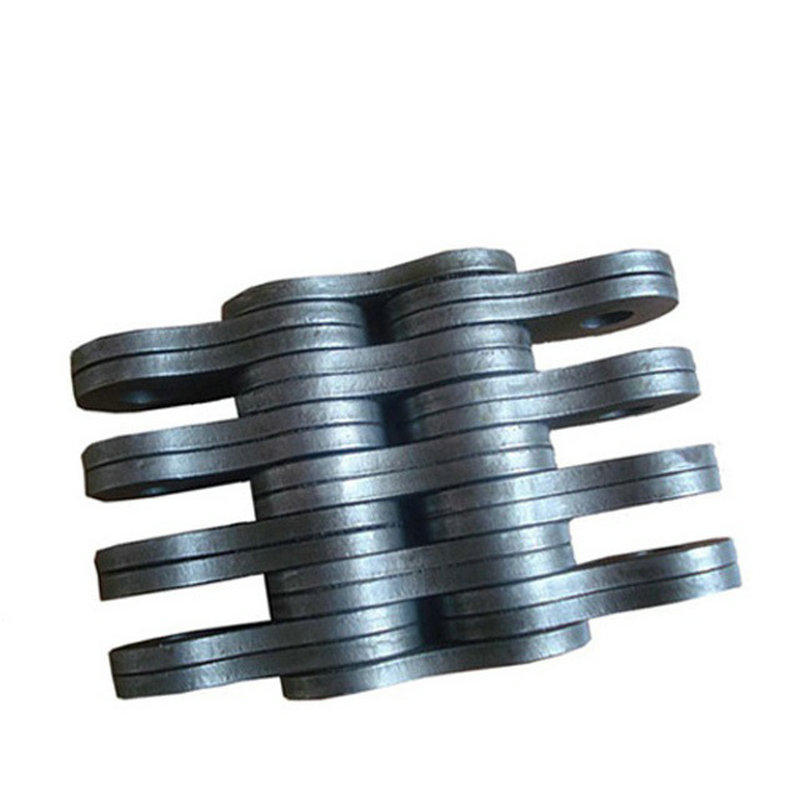

Plate chain for stacking machine is a special-purpose plate chain derived from standard plate chain, which is mainly used for stacking machine for empty containers import, and can meet the characteristics of large bearing weight and high lifting height.
According to the failure mode of the product, the reliability of the product is optimized and the proprietary process technology is adopted, so that the plate chain for stacker has the advantages of high fatigue strength, high wear resistance and high reliability.and the service life reaches more than 10000 hours.

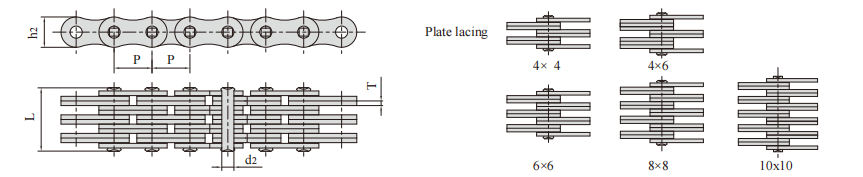

| Chain No. | Pitch | Plate lacing | Plate depth | Plate thickness | Pin diameter | Pin length | Tensile strength | Average tensile strength | Weight per meter |
| P | h2 max | T max | d2 max | L max | Q min | Q0 | q | ||
| mm | mm | mm | mm | mm | kN/lbf | kN | kg/m | ||
| LH2044(DG) | 31.75 | 4×4 | 30.18 | 4.80 | 11.10 | 43.8 | 231.3/51996 | 254.4 | 7.60 |
| LH2066(DG) | 31.75 | 6×6 | 30.18 | 4.80 | 11.10 | 64.0 | 347.0/78008 | 380.0 | 11.65 |
| LH2444(DG) | 38.10 | 4×4 | 36.20 | 5.60 | 12.70 | 51.3 | 302.5/68002 | 332.8 | 10.30 |
| LH2466(DG) | 38.10 | 6×6 | 36.20 | 5.60 | 12.70 | 75.5 | 453.7/101992 | 475.0 | 11.52 |
| LH2488(DG) | 38.10 | 8×8 | 36.20 | 5.60 | 12.70 | 96.5 | 605.0/136004 | 665.5 | 21.60 |
| LH2844(DG) | 44.45 | 4×4 | 42.20 | 6.40 | 14.27 | 57.5 | 382.6/86008 | 400.0 | 14.12 |
| LH2846(DG) | 44.45 | 4×6 | 42.20 | 6.40 | 14.27 | 73.0 | 382.6/86009 | 400.0 | 17.63 |
| LH2866(DG) | 44.45 | 6×6 | 42.20 | 6.40 | 14.27 | 83.2 | 706.0/158709 | 810.0 | 21.09 |
| LH3234(DG) | 50.80 | 3×4 | 48.20 | 7.20 | 17.46 | 57.9 | 440.4/99002 | 506.0 | 15.49 |
| LH3244(DG) | 50.80 | 4×4 | 48.20 | 7.20 | 17.46 | 65.1 | 573.8/128990 | 602.0 | 17.67 |
| LH3246(DG) | 50.80 | 4×6 | 48.20 | 7.20 | 17.46 | 80.0 | 573.8/128990 | 602.0 | 22.20 |
| LH3266(DG) | 50.80 | 6×6 | 48.20 | 7.20 | 17.46 | 96.7 | 867.4/194991 | 911.0 | 26.70 |
| LH3288(DG) | 50.80 | 8×8 | 48.20 | 7.20 | 17.46 | 123.3 | 1156.5/259981 | 1214.0 | 35.00 |
| LH4044(DG) | 63.50 | 4×4 | 60.33 | 9.91 | 23.81 | 91.5 | 867.4/194992 | 954.1 | 31.60 |
| LH4066(DG) | 63.50 | 6×6 | 60.33 | 9.91 | 23.81 | 131.2 | 1301.1/292487 | 1496.0 | 48.10 |
| LH2466F2 (DG) | 38.10 | 6×6 | 36.20 | 5.60 | 12.70 | 75.5 | 648.0/145670 | 710.0 | 11.52 |
| LH2488F4(DG) | 38.10 | 8×8 | 36.20 | 5.60 | 12.70 | 97.3 | 800.0/179840 | 880.0 | 21.69 |
| LH3266(DGF1) | 50.80 | 6×6 | 48.20 | 7.20 | 17.46 | 94.2 | 993.6/223361 | 1143.0 | 26.35 |
| LH3288(DGF2) | 50.80 | 8×8 | 48.20 | 7.20 | 17.46 | 124.5 | 1364.6/306774 | 1500.0 | 35.09 |
| LH3288F7(DG) | 50.80 | 8×8 | 48.20 | 7.20 | 17.46 | 127 | 1513.0/340122 | 1664.3 | 35.19 |
| BL2088F2(DG) | 63.50 | 8×8 | 58.20 | 9.70 | 23.81 | 170.0 | 1734.8/389983 | 1995.0 | 56.74 |
| LL2466 (DG) | 38.10 | 6×6 | 33.40 | 5.00 | 14.63 | 67.4 | 510.0/114648 | 536.0 | 13.00 |
| LL2866 (DG) | 44.45 | 6×6 | 36.00 | 6.00 | 15.90 | 80.2 | 600.0/134880 | 660.0 | 16.31 |
| LL4066 (DG) | 63.50 | 6×6 | 52.70 | 8.00 | 22.89 | 106.5 | 1080.0/242793 | 1245.0 | 31.62 |
| LL4088 (DG) | 63.50 | 8×8 | 52.70 | 8.00 | 22.89 | 140.0 | 1400.0/314733 | 1650.0 | 42.10 |
| LL2844(DGF1) | 44.45 | 4×4 | 36.00 | 6.00 | 15.90 | 54.7 | 400.0/89923 | 450.0 | 10.92 |
| LL2866(DGF1) | 44.45 | 6×6 | 36.00 | 6.00 | 15.90 | 80.2 | 650.0/146120 | 715.0 | 16.20 |
| LL3244F2(DG) | 50.80 | 4×4 | 43.10 | 6.00 | 17.76 | 55.0 | 520.0/116900 | 570.0 | 12.62 |
| LL3244F6(DG) | 50.80 | 4×4 | 42.00 | 6.00 | 17.81 | 57.5 | 520.0/116900 | 570.0 | 12.35 |
| LL3266F6(DG) | 50.80 | 6×6 | 42.00 | 6.00 | 17.81 | 81.7 | 780.0/175344 | 858.0 | 18.30 |
| LL3266(DGF1) | 50.80 | 6×6 | 42.00 | 6.40 | 17.81 | 86.0 | 780.0/175344 | 858.0 | 19.53 |
| LL3266F3(DG) | 50.80 | 6×6 | 43.10 | 6.00 | 17.76 | 79.9 | 780.0/178344 | 858.0 | 18.84 |
| LL3288F6(DG) | 50.80 | 8×8 | 42.00 | 6.00 | 17.8 | 106.0 | 1040.0/233792 | 1144.0 | 24.30 |
| LL3288(DGF2) | 50.80 | 8×8 | 42.00 | 6.40 | 17.81 | 112.0 | 1040.0/233792 | 1144.0 | 25.91 |
| LL4088F2(DG) | 63.50 | 8×8 | 52.70 | 8.20 | 22.89 | 140.0 | 1440.0/323725 | 1670.0 | 42.39 |

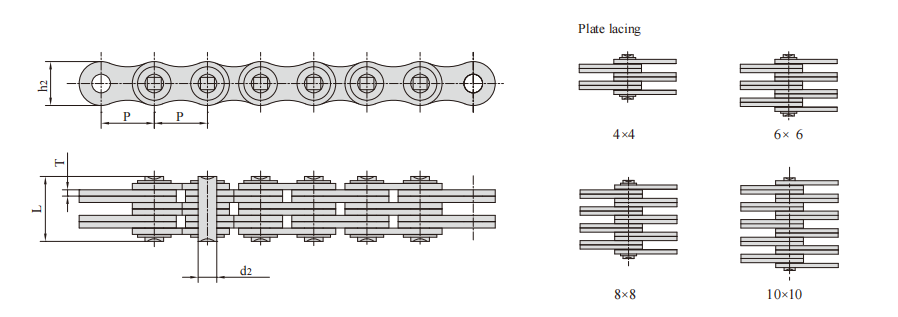

| Chain No. | Pitch | Plate lacing | Plate depth | Plate thickness | Pin diameter | Pin length | Tensile strength | Average tensile strength | Weight per meter |
| P | h2 max | T max | d2 max | L max | Q min | Q0 | q | ||
| mm | mm | mm | mm | mm | kN/bf | kN | kg/m | ||
| LL3244(DG) | 50.80 | 4×4 | 42.00 | 6.40 | 17.81 | 65.0 | 520.0/116895 | 598.0 | 13.73 |
| LL3266(DG) | 6×6 | 90.8 | 780.0/175344 | 897.0 | 19.94 | ||||
| LL3288(DG) | 8×8 | 117.0 | 1040.0/233792 | 1196.0 | 26.10 | ||||
| LL321010F10(DG) | 50.80 | 10×10 | 42.00 | 6.00 | 17.81 | 134.3 | 1300.0/292240 | 1430.0 | 30.89 |
| LL4066F5(DG) | 63.50 | 6×6 | 52.70 | 8.00 | 22.89 | 112.7 | 1080.0/242794 | 1245.0 | 32.59 |
| LL4088F4(DG) | 63.50 | 8×8 | 52.70 | 8.00 | 22.89 | 144.0 | 1400.0/314720 | 1540.0 | 42.38 |
