L Type Coupling

Raydafon Guoup L Type Coupling: A precision-engineered coupling for seamless connections in industrial machinery, offering superior durability and easy installation. Perfect for engineers and manufacturers, it enhances efficiency and reliability in demanding applications. Experience the difference with Raydafon Guoup's innovative design.

Send Inquiry

Product Description

The L-coupling consists of two standard L-hubs and a spider standard L-coupling hub materials include powder metallurgy iron or cast iron.

L-couplings with simple design, easy installation and maintenance, and do not require lubrication.

It is able to accommodate both axial and radial misalignment, ensuring that it will still work in the event of misalignment.

The spider part is made of a variety of materials, such as SOX (NBR) rubber, to meet different application needs and torque requirements

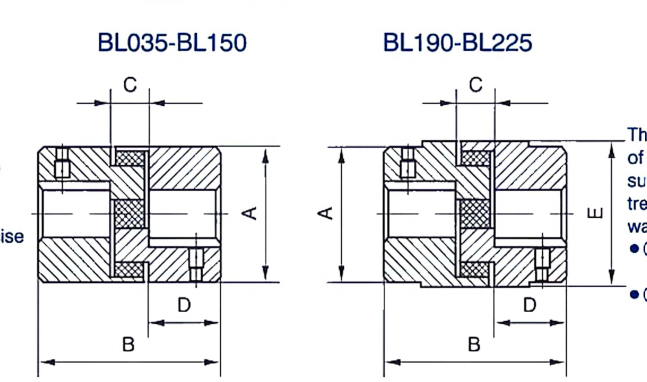

L Type Coupling

Catalog	Dimension					Wt-Lbs		Torque ln.-Lbs	Maximum RPM	Bore
Catalog	A	B	C	D	E	Min Bore	Max Bore	Torque ln.-Lbs	Maximum RPM	Min	Max
BL 035	5/8	13/16	9/32	17/64	-	0.01	0.01	3.52	31000	1/8	3/8
BL 050	15/64	123/32	15/32	5/8	-	0.29	0.24	25.8	18000	1/4	5/8
BL 070	123/64	2	1/2	3/4	-	0.59	0.54	44.1	14000	1/4	3/4
BL 075	13/4	21/8	1/2	13/16	-	1.00	0.86	88.2	11000	1/4	7/8
BL 090	27/64	21/8	1/2	13/16	-	1.48	1.32	145	9000	1/4	1
BL 095	27/64	21/2	1/2	1	-	1.75	1.52	189	9000	7/16	11/8
BL 099	217/32	27/8	3/4	11/16	-	2.50	2.17	315	7000	7/16	13/16
BL 100	217/32	31/2	3/4	13/8	-	3.42	2.92	415	7000	7/16	13/8
BL 110	35/16	41/4	7/8	111/16	-	6.45	5.61	788	5000	5/8	15/8
BL 150	33/4	41/2	1	13/4	-	8.95	7.73	1260	5000	5/8	17/8
BL 190	4	51/4	1	21/8	41/2	8.83	7.04	1702	5000	3/4	21/8
BL 225	41/4	6	1	21/2	5	12.28	9.60	2332	4000	3/4	23/8

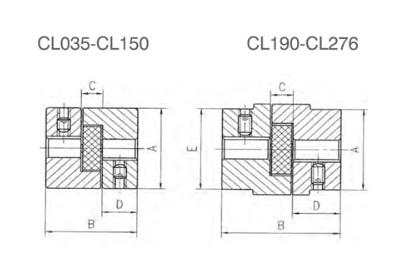

L Type Coupling

Catalog	Fundamental dimensions					torgue needed nm	rotational speed rpm	Bore max mm	stock bore sizes of the couplings	Mass kg
Catalog	A	B	C	D	E	torgue needed nm	rotational speed rpm	Bore max mm	stock bore sizes of the couplings	Mass kg
CL035	16	20.2	7.8	6.5	-	0.5	30.000	9	8.9	0.03
CL050	28	43	12	15.5	-	3	17.000	16	10.12.14.16	0.13
CL070	35	50.7	12.7	19	-	5	13.000	19	10.12.14.16.18.19	0.24
CL075	45	55	12.7	20.5	-	10	10.000	24	12.14.16.18.19.20.22.24	0.40
CL090	54	55	12.7	21	-	16	9.000	25	14.16.18.19.20.22.24.25	0.68
CL095	54	64	12.7	25.5	-	22	9.000	29	14.16.18.19.20.22.24.25.28	0.71
CL099	65	73	19	27	-	45	7.000	35	20.22 24.25 28.30.32.35	1.22
CL100	65	89	19	35	-	50	7.000	35	20.22 24.2528.30.32.35	1.40
CL110	84	108	22	43	-	90	5.000	42	25.28.30.32 35.38.40.42	3.0
CL150	96	115.4	25.4	45	80	150	5.000	48	30.32 35.38.40.42.45.48	5.0
CL190	115	133.4	25.4	54	102	200	5.000	54	35.38.40.42.45.48.50	7.6
CL225	127	153.4	25.4	64	108	300	4.200	67	38.40. 42.45 48.50.55.60.65	9.0
CL276	157	200	41	79	127	542	4.200	73	45.48.50.55.60.65.70	21.0
