  EE Type Coupling
  •   EE Type Coupling     EE Type Coupling

EE Type Coupling

EE Type Couplings are highly flexible elastic couplings widely used in the main and auxiliary drive systems of mechanical and equipment engineering. This coupling has extremely high flexibility, which can effectively reduce torsional vibration in the transmission system, and has no clearance or slid......

EE Type Couplings are highly flexible elastic couplings widely used in the main and auxiliary drive systems of mechanical and equipment engineering. This coupling has extremely high flexibility, which can effectively reduce torsional vibration in the transmission system, and has no clearance or sliding. EE Type Couplings can be manufactured using materials such as GG25, and after surface treatment, they can meet different application requirements.

This coupling adopts a plug-in installation method, which does not require maintenance and can effectively correct axial, radial, and angular deviations. Suitable for various wheelbase separation situations, users can choose between wide or narrow wheelbase separation according to their needs. Due to its design and material characteristics, this coupling does not require regular maintenance during use, reducing operating costs. Through the prestressing design of elastic elements, it is possible to effectively absorb and transmit torque, thereby reducing system vibration. Provide multiple sizes and models to meet different installation requirements and application scenarios.

In summary, EE Type Couplings are an efficient, reliable, and easy to install elastic coupling suitable for various complex mechanical transmission systems, which can significantly improve the stability and service life of the system.

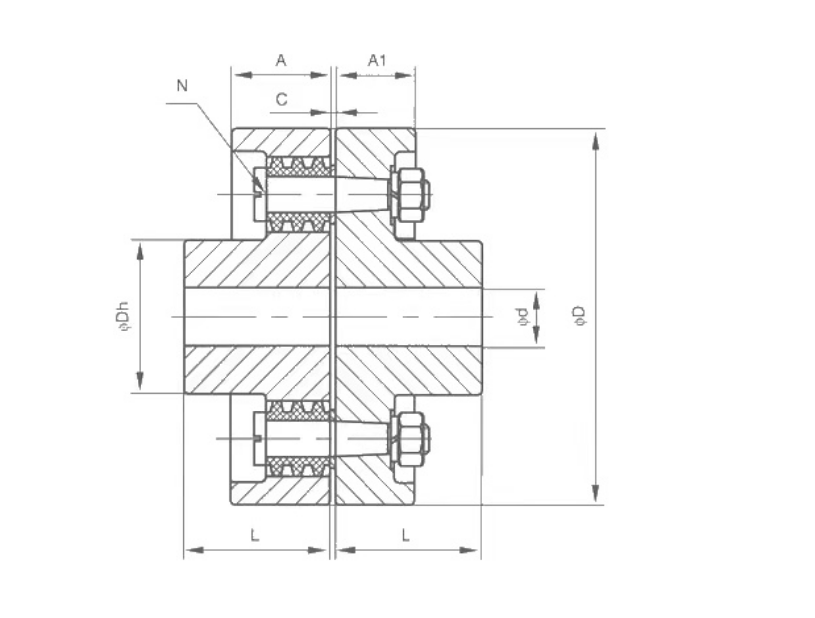

  EE Type Coupling   DIN图纸

DIN EE-Coupling

Catalog Fundamental dimensions Bore Bolts Torque (Nm) Max Revolution (rpm) G
(kg)
D Dh L AI A C Pilot Max Qty
EE-128
EE-135
EE-147
EE-172
EE-191
128
135
147
172
191
52
61
71
81
98
50
54
58
65
70
27
27
27
35
35
34
34
34
43
43
2
2
2
3
3
12
18
22
25
30
26
33
42
45
57
4
6
8
6
8
91
144
218
341
575
4600
4420
4000
3400
3020
4.35
5.35
6.88
10.55
14.35
EE-216
EE-256
EE-280
EE-330
216
256
280
330
113
129
149
184
79
90
105
119
35
55
55
55
43
65
65
65
3
4
4
4
33
44
60
70
64
70
80
100
10
8
10
12
900
1890
2800
3950
2700
2300
2090
1760
20.65
39.50
50.75
77.00
