Product Description

Drop forged conveyor chain

Product description

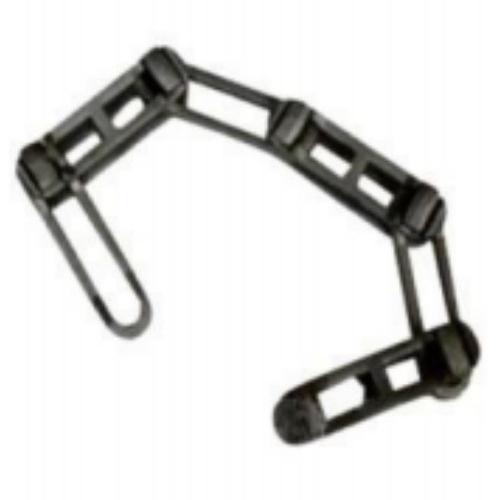

The chain is the traction component of the conveyor. There are two types of chains for XT80, XT100, it can rotate arbitrarily in the horizontal and vertical directions.

Drop Forged Conveyor Chains

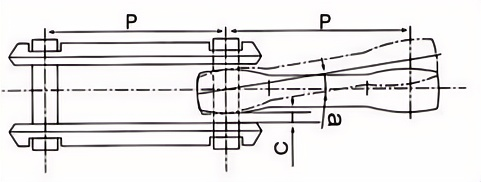

Product Specification

Project Type	P	C	α
XT80	80(76.2)	1.5-2.5	≥9°;
XT100	100	1.5-2.5	≥9°;
XT160	160	2-4	≥6°;

Product Properties

XT80

Drop Forged Conveyor Chains Chain pitch: t=80176.2mm

Chain tensile load: 110KN

Allowable chain tension: 10KN

Maximum load of carriage: 300kg

Allowable load of carriage: 125Kg

Track: G10 or G12

Minimum horizontal turning radius: R305

Minimum vertical bending radius: R1500

XT100

Drop Forged Conveyor Chains Chain pitch: t=100mm

Chain tensile load: 220KN

Allowable chain tension: 15KN

Ultimate load of carriage: 500kg

Allowable load of carriage: 250Kg

Track: G12 or G14

Minimum horizontal turning radius: R317

Minimum vertical bending radius: R2000

Chain pitch: t=160mm

XT160

Drop Forged Conveyor Chains Chain tensile load: 400KN

Allowable chain tension: 30KN

Ultimate load of carriage: 800kg

Allowable load of carriage: 500Kg

Track: G14 or G16

Minimum horizontal turning radius: R404

Minimum vertical bending radius: R3150

Application

Industrial production lines:

In automobile, home appliance and machinery manufacturing, they are used for transporting parts and ensuring efficient production.

Material handling equipment:

Found in scraper conveyors, bucket elevators and overhead conveyors for transporting bulk materials and realizing efficient space utilization.

Special equipment:

Used in wet slag extractors in power plants and as crucial components of port cranes for heavy lifting.\
