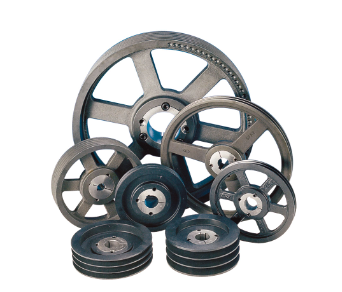

BTL AB-C-D V-pulleys

Raydafon Group's BTL AB-C-D V-pulleys offer durable, precision-engineered solutions for industrial applications, ensuring superior performance and reliability. Ideal for engineers and mechanics, they enhance efficiency and reduce downtime, with innovative design and high-quality materials setting them apart from competitors.

Send Inquiry

Product Description

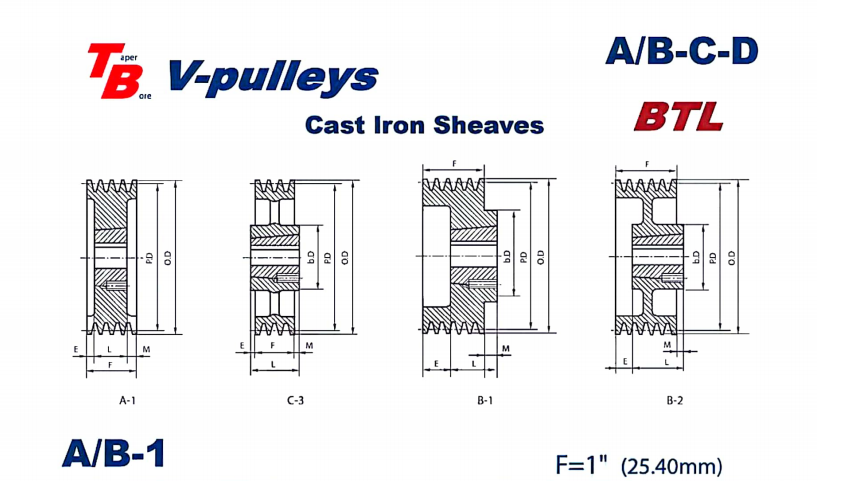

Sheave	P.D			O.D	Bush	Bush Max. Bore	Type	E	bD	L	WT Less Bush
	A Belt	B Belt
1B34TB1210 1B36TB1210 1B38TB1610 1B40TB1610 1B42TB1610	3.00 3.20 3.40 3.60 3.80	3.40 3.60 3.80 4.00 4.20	3.75 3.95 4.15 4.35 4.55	1210 1210 1610 1610 1610	A1 A1 A1 A1 A1	11/4 11/4 15/8 15/8 15/8	- - - - -	- - - - -	1 1 1 1 1	- - - - -	2.2 2.6 2.8 3.0 3.5




1B44TB1610 1B46TB1610 1B48TB1610 1B50TB1610 1B52TB1610	4.00 4.20 4.40 4.60 4.80	4.40 4.60 4.80 5.00 5.20	4.75 4.95 5.15 5.35 5.55	1610 1610 1610 1610 1610	A1 A1 A1 A1 A1	15/8 15/8 15/8 15/8 15/8	- - - - -	- - - - -	1 1 1 1 1	- - - - -	3.8 4.0 4.5 4.8 5.0




1B54TB1610 1B56TB1610 1B58TB1610 1B60TB1610 1B62TB1610	5.00 5.20 5.40 5.60 5.80	5.40 5.60 5.80 6.00 6.20	5.75 5.95 6.15 6.35 6.55	1610 1610 1610 1610 1610	A1 A1 A1 A1 A1	15/8 15/8 15/8 15/8 15/8	- - - - -	- - - - -	1 1 1 1 1	- - - - -	5.5 6.0 6.3 6.7 7.0




1B64TB1610 1B66TB1610 1B68TB1610 1B74TB2517 1B86TB2517	6.00 6.20 6.40 7.00 8.20	6.40 6.60 6.80 7.40 8.60	6.75 6.95 7.15 7.75 8.95	1610 1610 1610 2517 2517	A1 A1 A1 B1 B2	15/8 15/8 15/8 21/2 21/2	- - - - -	- - - 43/4 43/4	1 1 1 13/4 13/4	- - - 3/4 3/4	8.0 8.5 9.0 9.4 12.0
1B94TB2517 1B110TB2517 1B124TB2517 1B154TB2517 *1B184TB2517	9.00 10.60 12.00 15.00 18.00	9.40 11.00 12.40 15.40 18.40	9.75 11.35 12.75 15.75 18.75	2517 2517 2517 2517 2517	B2 B2 C3 C3 C3	21/2 21/2 21/2 21/2 21/2	- - 1/4 1/4 3/16	43/4 43/4 43/4 43/4 43/4	13/4 13/4 13/4 13/4 13/4	3/4 3/4 1/2 1/2 7/16	14.0 18.0 18.5 19.0 24.0

BTL AB-C-D V-pulleys

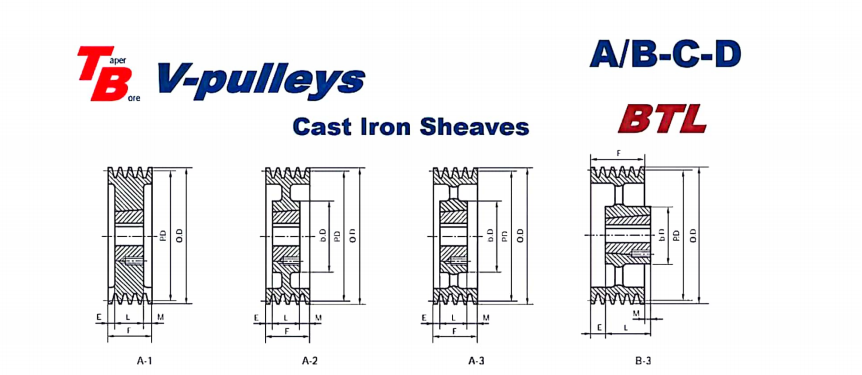

Sheave	P.D	O.D	Bush Max Bore	Bush	Type	bD	E	L	M	WT Less Bush
2C70TB2517 2C75TB2517 2C80TB2517 2C85TB2517 2C90TB2517	7.00 7.50 8.00 8.50 9.00	7.40 7.90 8.40 8.90 9.40	21/2 21/2 21/2 21/2 21/2	2517 2517 2517 2517 2517	A1 A1 A1 A2 A2	- - - 43/4 43/4	5/8 5/8 5/8 5/8 5/8	13/4 13/4 13/4 13/4 13/4	- - - - -	15 17 20 22 23




2C95TB2517 2C100TB2517 2C105TB2517 2C110TB2517 2C120TB2517	9.50 10.00 10.50 11.00 12.00	9.90 10.40 10.90 11.40 12.40	21/2 21/2 21/2 21/2 21/2	2517 2517 2517 2517 2517	A2 A2 A2 A2 A2	43/4 43/4 43/4 43/4 43/4	5/8 5/8 5/8 5/8 5/8	13/4 13/4 13/4 13/4 13/4	- - - - -	24 25 26 27 33




2C130TB2517 2C140TB2517 2C160TB2517 2C180TB3020 2C200TB3020 2C240TB3020	13.00 14.00 16.00 18.00 20.00 24.00	13.40 14.40 16.40 18.40 20.40 24.40	21/2 21/2 21/2 3 3 3	2517 2517 2517 3020 3020 3020	A3 A3 A3 A3 A3 A3	43/4 43/4 43/4 511/16 511/16 511/16	5/8 5/8 5/8 - - -	13/4 13/4 13/4 2 2 2	- - - 3/8 3/8 3/8	35 36 42 43 45 72

Sheave	P.D	O.D	Bush Max Bore	Bush	Type	bD	E	L	M	WT Less Bush
3C70TB2517 3C75TB2517 3C80TB2517 3C85TB2517 3C90TB2517	7.00 7.50 8.00 8.50 9.00	7.40 7.90 8.40 8.90 9.40	21/2 21/2 21/2 21/2 21/2	2517 2517 2517 2517 2517	A1 A1 A1 A2 A2	- - - 43/4 43/4	1/4 1/4 1/4 1/4 1/4	13/4 13/4 13/4 13/4 13/4	13/8 13/8 13/8 13/8 13/8	18.0 20.0 22.0 23.0 24.0




3C95TB2517 3C100TB2517 3C105TB2517 3C110TB2517 3C120TB3020	9.50 10.00 10.50 11.00 12.00	9.90 10.40 10.90 11.40 12.40	21/2 21/2 21/2 21/2 3	2517 2517 2517 2517 3020	A2 A2 A2 A2 A2	43/4 43/4 43/4 43/4 511/16	1/4 1/4 1/4 1/4 -	13/4 13/4 13/4 13/4 2	13/8 13/8 13/8 13/8 13/8	27.0 29.0 32.0 35.0 44.0




3C130TB3020 3C140TB3020 3C160TB3020 3C180TB3030 3C200TB3030	13.00 14.00 16.00 18.00 20.00	13.40 14.40 16.40 18.40 20.40	3 3 3 3 3	3020 3020 3020 3030 3030	A3 A3 A3 A3 A3	511/16 511/16 511/16 511/16 511/16	- - - - -	2 2 2 3 3	13/8 13/8 13/8 3/8 3/8	49.0 50.0 64.0 70.0 78.0




3C240TB3030 3C300TB3535 3C360TB3535	24.00 30.00 36.00	24.40 30.40 36.40	3 31/2 31/2	3030 3535 3535	A3 B3 B3	511/16 61/2 61/2	- - -	3 31/2 31/2	3/8 1/8 1/8	96.0 125.0 175.0

BTL AB-C-D V-pulleys

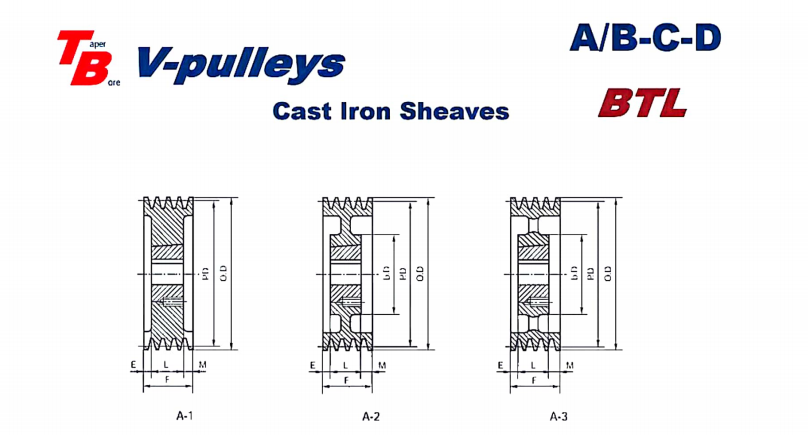

Sheave	P.D	O.D	Bush Max Bore	Bush	Type	bD	E	L	M	WT Less Bush
4D 120 TB3535 4D 130 TB3535 4D 135 TB3535 4D 140 TB3535 4D 145 TB3535	12.00 13.00 13.50 14.00 14.50	12.60 13.60 14.10 14 60 15.10	31/2 31/2 31/2 31/2 31/2	3535 3535 3535 3535 3535	A2 A2 A2 A2 A2	61/2 61/2 61/2 61/2 61/2	3/4 3/4 3/4 3/4 3/4	31/2 31/2 31/2 31/2 31/2	113/16 113/16 113/16 113/16 113/16	63 73 78 83 94




4D 150 TB3535 4D 155 TB3535 4D 160 TB3535 4D 180 TB3535 4D 220 TB4040 4D 270 TB4040	15.00 15.50 16.00 18.00 22.00 27.00	15.60 16.10 16 60 18.60 22.60 27 60	31/2 31/2 31/2 31/2 4 4	3535 3535 3535 3535 4040 4040	A2 A2 A2 A3 A3 A3	61/2 61/2 61/2 61/2 73/16 73/16	3/4 3/4 3/4 3/4 3/4 3/4	31/2 31/2 31/2 31/2 1/4 1/4	113/16 113/16 113/16 113/16 15/16 15/16	97 99 104 109 142 182

Sheave	P.D	O.D	Bush Max Bore	Bush	Type	bD	E	L	M	WT Less Bush
5D 120 TB4040 5D 130 TB4040 5D 135 TB4040 5D 140 TB4040 5D 145 TB4040	12.00 13.00 13.50 14.00 14.50	12.60 13.60 14.10 14.60 15.10	4 4 4 4 4	4040 4040 4040 4040 4040	A1 A2 A2 A2 A2	- 73/16 73/16 73/16 73/16	3/4 3/4 3/4 3/4 3/4	4 4 4 4 4	23/4 23/4 23/4 23/4 23/4	82 87 92 97 102




5D 150 TB4040 5D 155 TB4040 5D 160 TB4040 5D 180 TB4040 5D 220 TB4040 5D 270 TB4040	15.00 15.50 16.00 18.00 22.00 27.00	15.60 16.10 16.60 18.60 22.60 27.60	4 4 4 4 4 4	4040 4040 4040 4040 4040 4040	A2 A2 A2 A3 A3 A3	73/16 73/16 73/16 73/16 73/16 73/16	3/4 3/4 3/4 1 1 1	4 4 4 4 4 4	23/4 23/4 23/4 21/2 21/2 21/2	107 112 122 132 162 207
