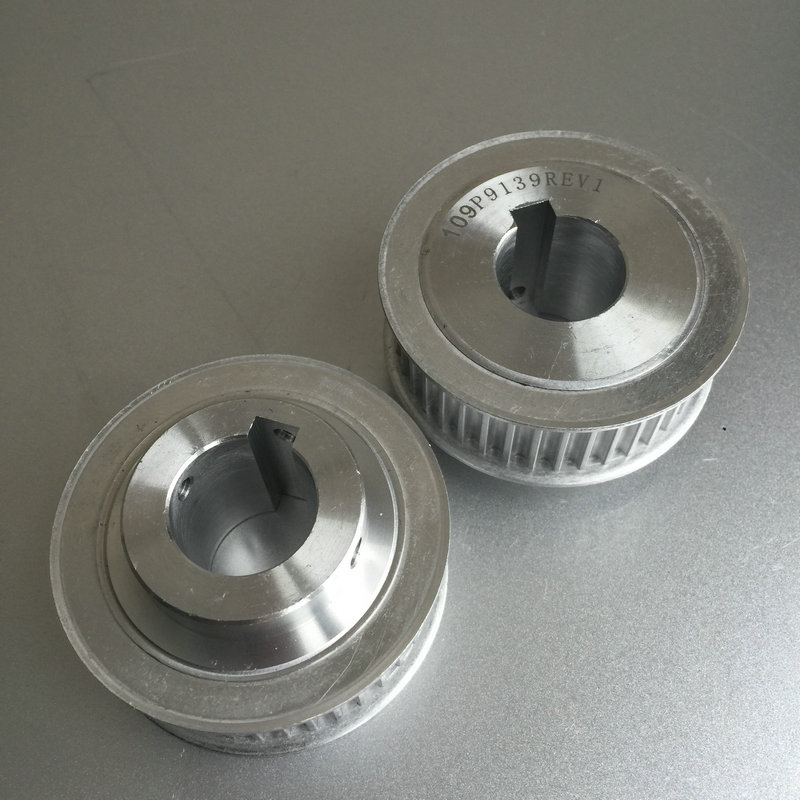

HTD(STD) Pulley 20M

Raydafon Group's HTD(STD) Pulley 20M is a precision gear pulley designed for smooth mechanical transmission in industrial applications. Its high-strength material and precise engineering ensure durability and efficiency. Ideal for engineers and manufacturers, it solves alignment issues, enhances performance, and offers superior reliability compared to standard pulleys.

Send Inquiry

Product Description

HTD(STD) Pulley 20M

20M 115mm
ITEM	TEETH	STRUCTURE	Dp	O.D.(De)	W	L	K	X	Dm	d	E	F	Flange I.D.	Flange Type
34-20M	34	B/W	216.45	212.13	135	168	125	-	165	32	-	240	165	F-40240165
36-20M	36	B/W	229.18	224.87	135	168	125	-	178	32	-	250	178	F-40250178
38-20M	38	B/W	241.92	237.6	135	168	125	-	181	32	-	265	190	F-40265190
40-20M	40	B/W	254.56	250.33	135	168	125	-	203	32	-	275	203	F-40275203
44-20M	44	B/W	280.11	275.79	135	168	125	-	210	32	-	300	228	F-40300228
48-20M	48	B/W	305.88	301.26	135	168	125	-	228	32	-	325	254	F-40325254
52-20M	52	B/W	331.04	326.72	135	168	125	-	228	32	-	350	279	F-40350279
56-20M	56	B/W	356.51	352.19	135	168	125	-	228	32	-	375	305	F-40375305
60-20M	60	W	381.97	377.65	135	168	125	30	228	38	318	405	330	F-40405330
64-20M	64	W	407.44	403.12	135	168	125	30	228	38	343	430	356	F-40430356
68-20M	68	W	432.9	428.58	135	168	125	30	228	38	366	455	382	F-40455382
72-20M	72	W	458.37	454.05	135	168	125	30	228	38	392	480	407	F-40480407
80-20M	80	W	509.3	504.98	135	168	125	30	280	38	445	530	457	F-40530457
90-20M	90	W	572.96	568.64	135	168	125	30	280	38	508	595	521	F-40595521

20M 70mm
规格	齿数	形状	节径	外径	W	L	1K	X	轮毂直径	内孔	透孔外径	档边外径	档边内径	档边型号
34-20M	34	B/W	216.45	212.13	192	223	180	-	165	32	-	240	165	F-40240165
36-20M	36	B/W	229.18	224.87	192	223	180	-	178	32	-	250	178	F-40250178
38-20M	38	B/W	241.92	237.6	192	223	180	-	181	32	-	265	190	F-40265190
40-20M	40	B/W	254.56	250.33	192	223	180	-	203	32	-	275	203	F-40275203
44-20M	44	B/W	280.11	275.79	192	223	180	-	210	32	-	300	228	F-40300228
48-20M	48	B/W	305.88	301.26	192	223	180	-	228	32	-	325	254	F-40325254
52-20M	52	B/W	331.04	326.72	192	223	180	-	228	32	-	350	279	F-40350279
56-20M	56	B/W	356.51	352.19	192	223	180	-	228	32	-	375	305	F-40375305
60-20M	60	W	381.97	377.65	192	223	180	30	228	38	318	405	330	F-40405330
64-20M	64	W	407.44	403.12	192	223	180	30	228	38	343	430	356	F-40430356
68-20M	68	W	432.9	428.58	192	223	180	30	228	38	366	455	382	F-40455382
72-20M	72	W	458.37	454.05	192	223	180	30	228	38	392	480	407	F-40480407
80-20M	80	W	509.3	504.98	192	223	180	30	280	38	445	530	457	F-40530457
90-20M	90	W	572.96	568.64	192	223	180	30	280	38	508	595	521	F-40595521

20M 230mm
ITEM	TEETH	STRUCTURE	Dp	O.D.(De)	W	L	K	X	Dm	d	E	F	Flange I.D.	Flange Type
34-20M	34	B/W	216.45	212.13	250	283	240	-	165	32	-	240	165	F-40240165
36-20M	36	B/W	229.18	224.87	250	283	240	-	178	32	-	250	178	F-40250178
38-20M	38	B/W	241.92	237.6	250	283	240	-	181	32	-	265	190	F-40265190
40-20M	40	B/W	254.56	250.33	250	283	240	-	203	32	-	275	203	F-40275203
44-20M	44	B/W	280.11	275.79	250	283	240	-	210	32	-	300	228	F-40300228
48-20M	48	B/W	305.88	301.26	250	283	240	-	228	32	-	325	254	F-40325254
52-20M	52	B/W	331.04	326.72	250	283	240	-	228	32	-	350	279	F-40350279
56-20M	56	B/W	356.51	352.19	250	283	240	-	228	32	-	375	305	F-40375305
60-20M	60	W	381.97	377.65	250	283	240	40	228	38	318	405	330	F-40405330
64-20M	64	W	407.44	403.12	250	283	240	40	228	38	343	430	356	F-40430356
68-20M	68	W	432.9	428.58	250	283	240	40	228	38	366	455	382	F-40455382
72-20M	72	W	458.37	454.05	250	283	240	40	228	38	392	480	407	F-40480407
80-20M	80	W	509.3	504.98	250	283	240	40	280	38	445	530	457	F-40530457
90-20M	90	W	572.96	568.64	250	283	240	40	280	38	508	595	521	F-40595521

20M 290mm
ITEM	TEETH	STRUCTURE	Dp	O.D.(De)	W	L	K	X	Dm	d	E	F	Flange I.D.	Flange Type
34-20M	34	B/W	216.45	212.13	305	343	295	-	165	32	-	240	165	F-40240165
36-20M	36	B/W	229.18	224.87	305	343	295	-	178	32	-	250	178	F-40250178
38-20M	38	B/W	241.92	237.6	305	343	295	-	181	32	-	265	190	F-40265190
40-20M	40	B/W	254.56	250.33	305	343	295	-	203	32	-	275	203	F-40275203
44-20M	44	B/W	280.11	275.79	305	343	295	-	210	32	-	300	228	F-40300228
48-20M	48	B/W	305.88	301.26	305	343	295	-	228	32	-	325	254	F-40325254
52-20M	52	B/W	331.04	326.72	305	343	295	-	228	32	-	350	279	F-40350279
56-20M	56	B/W	356.51	352.19	305	343	295	-	228	32	-	375	305	F-40375305
60-20M	60	W	381.97	377.65	305	343	295	42	228	38	318	405	330	F-40405330
64-20M	64	W	407.44	403.12	305	343	295	42	228	38	343	430	356	F-40430356
68-20M	68	W	432.9	428.58	305	343	295	42	228	38	366	455	382	F-40455382
72-20M	72	W	458.37	454.05	305	343	295	42	228	38	392	480	407	F-40480407
80-20M	80	W	509.3	504.98	305	343	295	42	280	38	445	530	457	F-40530457
90-20M	90	W	572.96	568.64	305	343	295	42	280	38	508	595	521	F-40595521
