Automobile Transfer Case Transmission Chain

Raydafon Group's Automobile Transfer Case Transmission Chain delivers superior durability and seamless power transfer, perfect for off-road enthusiasts and daily drivers. Crafted with premium materials and advanced engineering, it ensures reliability, reduces noise, and enhances vehicle performance, solving common wear issues with its innovative design. Experience confidence on every journey—trust Raydafon for unmatched quality and precision in automotive excellence.

Send Inquiry

Product Description

Automobile chain is mainly used in engine timing system, oil pump system.

balance shaft system and automobile transfer/ transmission chain.

The product has the characteristics of high strength, high precision, long life.low noise, lightweight and high reliability.The pin shaft adopts special hardening treatment to meet the wear resistance requirements under high speed and heavy load conditions;The chain plate adopts isothermal heat treatment process to meet the requirements of high fatigue strength under the condition of large load and impact force.

Typical products:Timing system for automobile engine.Automobile transfer case/transmission chain.

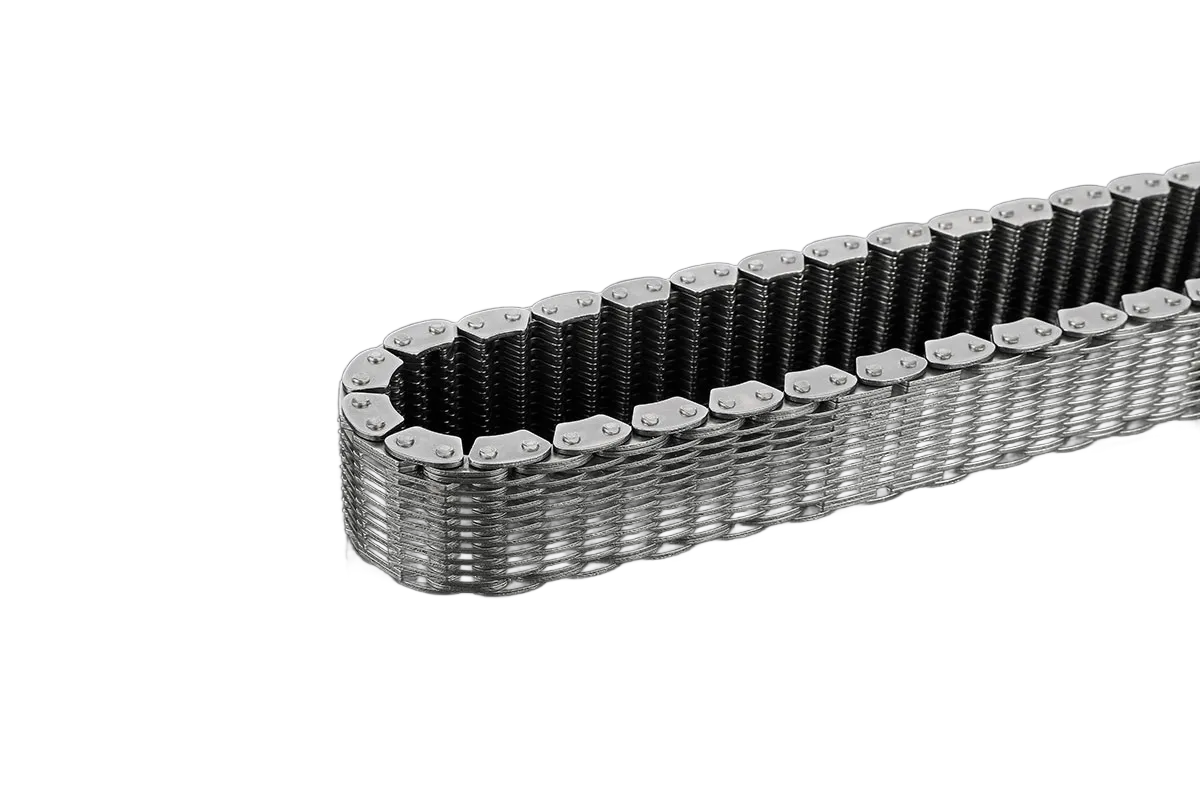

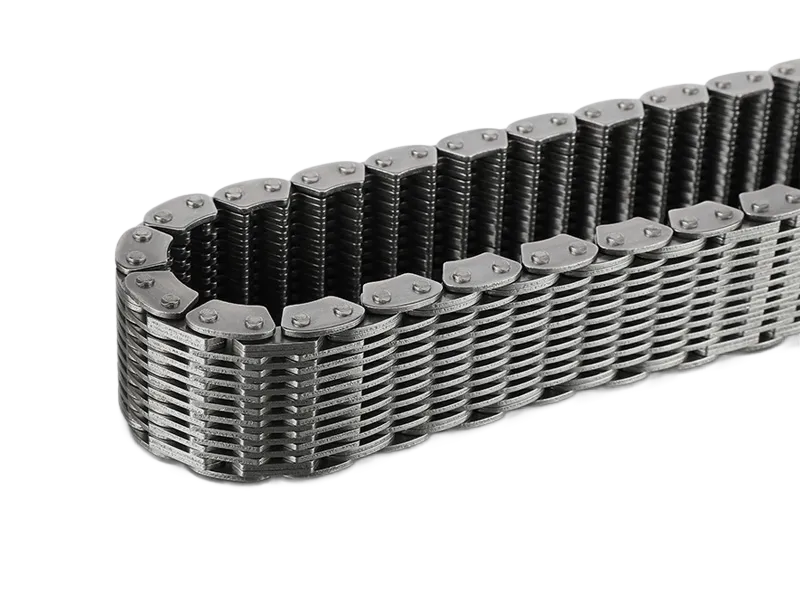

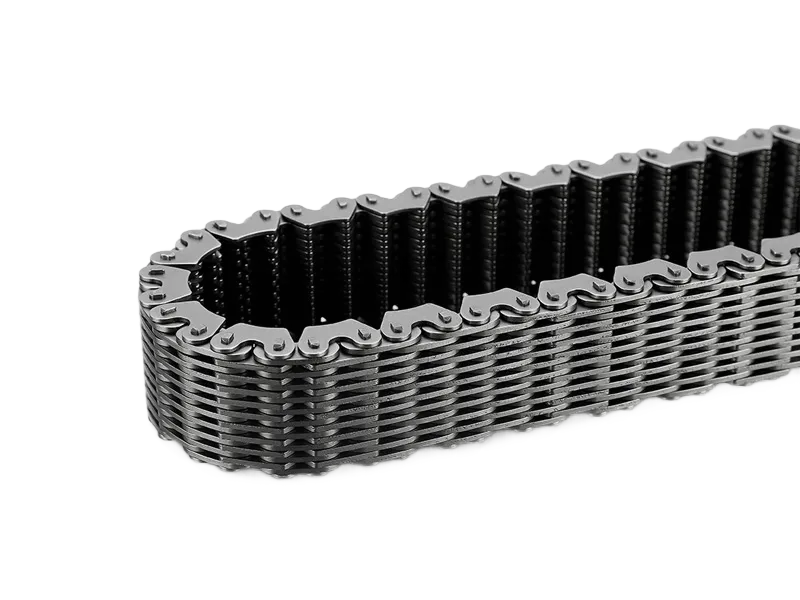

Automobile Transfer Case Transmission Chain

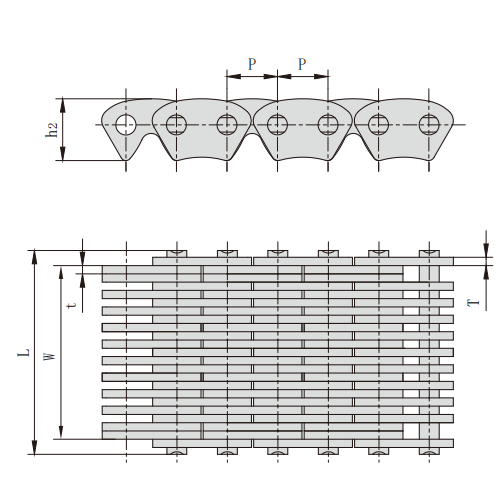

Chain No	Pitch	Width Between Guides	Pin length	Plate depth	Plate thickness		Guide type	Number of plate	Tensile strength	Weight per meter
	P	W	L max	h2 max	t	T		n	Q min	q
	mm	mm	mm	mm	mm	mm			kN/lbf	kg/m
HV3F3	9.525	18.24	22.20	10.90	1.54	1.54	Outside	13(6×7	36.0/8093	1.16
HV3F3	9.525	31.70	36.50	10.90	1.54	1.54	Outside	21(10×11)	45.0/10116	1.79
HV3F4	9.525	20.30	25.90	10.90	1.54	1.54	Outside	15(7×8)	31.0/6969	1.29
HV3F4	9.525	24.58	29.80	11.90	1.54	1.54	Outside	17(8×9)	48.0/10790	1.60
HV3.5	11.113	24.80	30.00	14.27	1.54	1.20	Outside	17(8×9	58.0/13038	2.13
	11.113	28.00	32.70	14.27	1.54	1.20	Outside	19(9×10)	65.0/14612	2.38
	11.113	31.20	36.00	14.27	1.54	1.20	Outside	21(10×11)	72.0/16186	2.53
SC180	11.113	31.40	36.33	13.52	1.55	1.55	Outside	21(9×12	72.0/16186	2.37
	11.113	37.80	42.72	13.52	1.55	1.55	Outside	25(11×14)	88.0/19782	2.88
	11.113	40.90	46.60	13.52	1.55	1.55	Outside	27(12×15)	96.0/21581	1.09
HV4F1-10X11W	12.700	32.90	38.20	14.50	1.54	1.54	Outside	21(10×11)	47.3/10633	2.20
HV4F1-16X17N	12.700	52.40	57.00	14.50	1.54	2.00	Inside	33(16×17)	86.0/19333	3.50
HV6	19.050	72.30	81.30	20.89	2.00	2.00	Outside	35(17×18)	174.0/39115	7.40
HV6	19.050	101.90	108.90	20.89	2.00	2.00	Inside	49(24×25)	174.0/39115	10.12
HV6D	19.050	38.5	50.30	27.00	2.00	2.00	Outside	21(10×11)	104.0/23379	4.52
HV8	25.400	140.30	158.80	27.74	3.10	3.10	Outside	47(23×24)	534.0/120043	20.46
HV8D	25.400	102.00	110.0	36.00	3.00	3.00	Inside	34(16×18)	385.0/86548	14.40

Automobile Transfer Case Transmission Chain

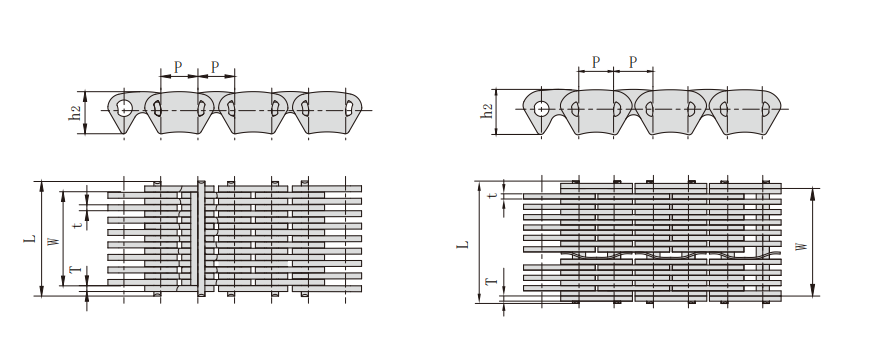

Chain No.	Pitch	Chain width	Pin length	Plate depth	Plate thickness		Guide form	Number of plate	Tensile strength	Weight per meter
Chain No.	P mm	b1 min mm	L max mm	h2 max mm	t max mm	T max mm		n	Q min kN/lbf	q kg/ m
CL06	9.525	17.00	22.7	11.57	1.54	1.55	Outside	13(6X7)	37/8318	1.28
CL06D	9.525 9.525	32.80 42.50	38.20 38.20	11.57 11.57	1.55 1.55	1.55 1.55	Outside Outside	23(12X11) 29(14X15)	73/16410 86/19333	2.23 2.90
BC1252	12.780 12.780	29.60 30.50	35.10 36.00	15.50 15.50	1.54 1.54	1.54 1.54	Outside Outside	21(10X11) 21(11X10)	80/17984 80/17984	2.66 2.76
SC1252	12.780 12.780 12.780	31.20 37.50 43.90	36.70 43.20 49.70	15.50 15.50 15.50	1.54/1.76 1.54/1.76 1.54/1.76	1.54 1.54 1.54	Outside Outside Outside	21(11X10) 25(13X12) 29(15X14)	80/17984 96/21581 112/25178	2.82 3.33 3.85
