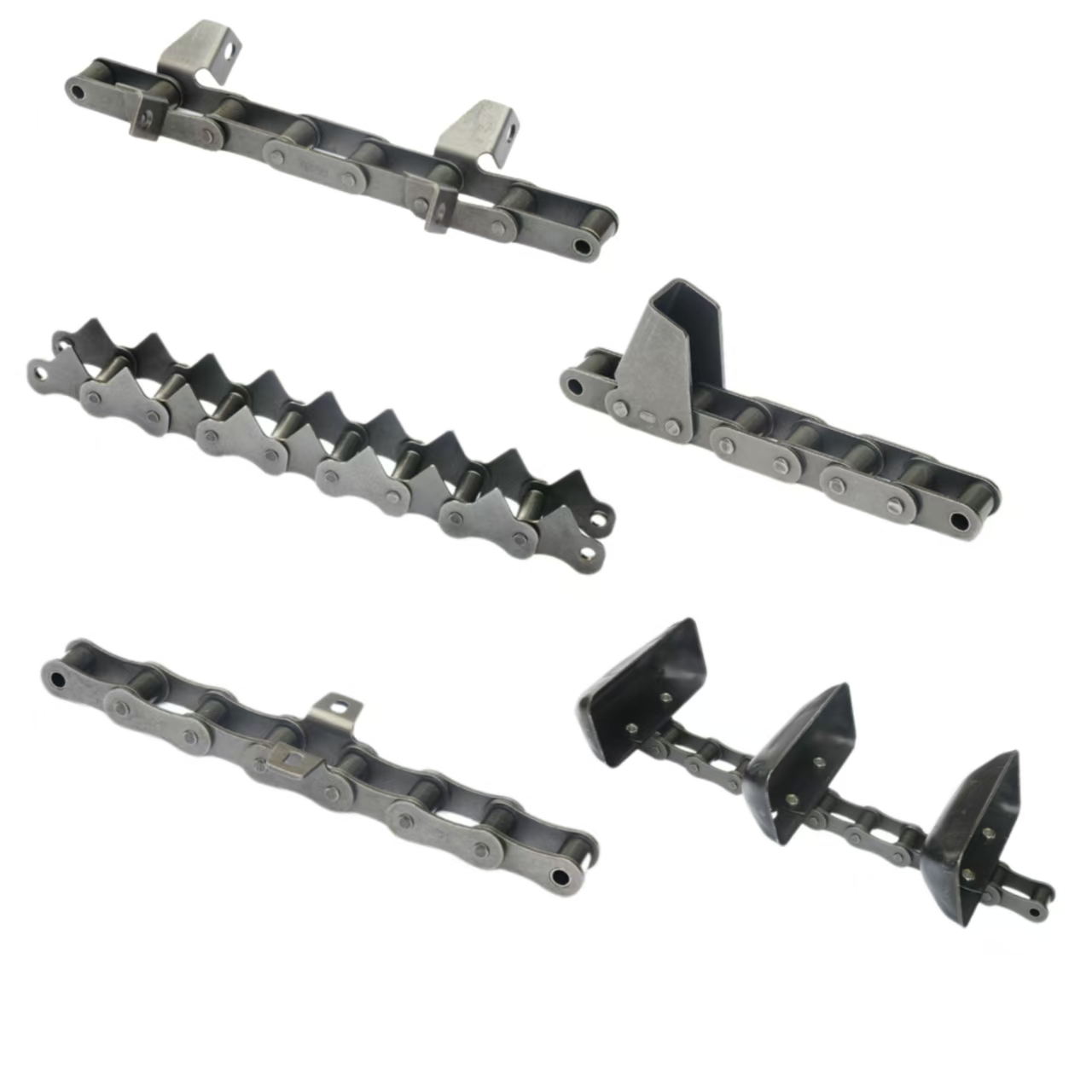

Agricultural Machinery Drive Chains

Agricultural machinery drive chain conforms to ISO, ANSI, JIS and other standards,mainly including standard roller chain, H series heavy-duty roller chain and SP series high-strength short-pitch roller chainsHeavy-duty and high-strength roller chain adopts high-quality raw materials and special heat......

Agricultural machinery drive chain conforms to ISO, ANSI, JIS and other standards,mainly including standard roller chain, H series heavy-duty roller chain and SP series high-strength short-pitch roller chains

Heavy-duty and high-strength roller chain adopts high-quality raw materials and special heat treatment process. The product has high fatigue strength, high wear resistance and impact resistance. The initial wear resistance is ensured by high-quality grease lubrication, and the wear resistance is higher than that of ordinary roller chain.

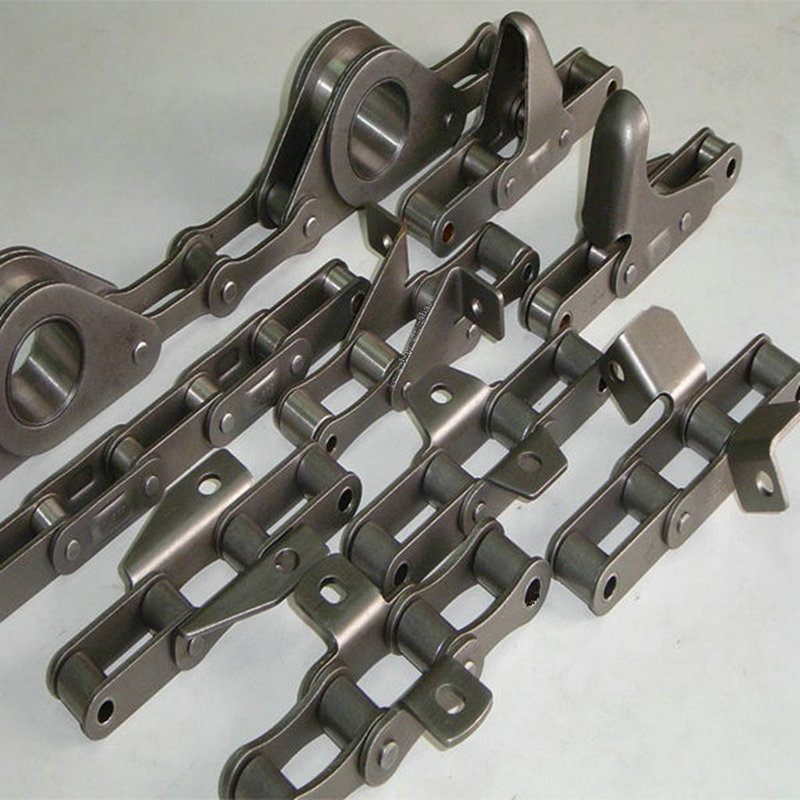

Products are widely used in rice machinery, balers, rotary tillers, harvesters and other agricultural machinery, transmitting power for various agricultural machinery.



  Agricultural Machinery Drive Chains

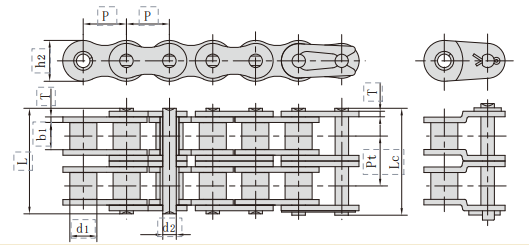

Chain No. Pitch Roller
diameter
Width
between
inner plates
Pin
diameter
Pin
length
Inner
plate
depth
Plate
thickness
Tensile
strength
Average
tensile
strength
Weight
per
meter
P d1
max
b1
min
d2
max
L
max
Lc
max
h2
max
T
max
Q
min
Q0 q
  mm mm m  m mm mm mm mm mm kN/lbf kN kg/m
35HF2 9.525 5.08 4.77 3.58 15.52 - 9.00 2.03 9.0/2023 9.9 0.52
420T 12.700 7.77 6.25 3.96 14.70 - 12.00 1.50 18.62/4186 20.5 0.55
520 15.875 10.16 6.25 5.08 17.50 - 15.09 2.03 29.40/6610 32.3 0.96
520HF2 15.875 10.22 6.25 5.30 19.30 - 15.30 2.42 35.00/7869 38.5 1.25
520HF3 15.875 10.22 6.25 5.30 19.80 - 15.30 2.80/2.42 40.00/8993 44.0 1.36
520HF4 15.875 10.16 6.25 5.08 19.30 20.80 15.09 2.42 26.50/5958 29.2 1.10
520HF6 15.875 10.22 6.25 5.30 19.30 - 15.30 2.42 40.00/8993 44.0 1.25
*P22.225F3-B 22.225 15.60 14.60 9.00 36.30 38.00 23.50 4.80/4.00 75.00/16862 82.5 3.75
*16BF26 25.400 15.88 16.00 10.00 42.50 44.20 26.80 5.60/4.80 80.00/17986 88.0 4.66
*Bush chain:d1 in the table indicates the external diameter of the bush

  Agricultural Machinery Drive Chains

Chain No. Pitch Roller
diameter
Width
between
inner plates
Pin
diameter
Pin
length
Inner
plate
depth
Plate
thickness
Transverse
pitch
Tensile
strength
Average
tensile
strength
Weight
per
meter
P d1
max
b1
min
d2
max
L
max
Lc
max
h2
max
T
max
Pt Q
min
Q0 q
  mm mm m  m mm mm mm mm mm mm kN/lbf kN kg/m
08B-2 12.70 8.51 7.75 4.45 31.2 32.2 11.8 1.60 13.92 32.0/7273 38.7 1.34
12A-2 19.05 11.91 12.57 5.94 48.8 50.5 18.0 2.42 22.78 63.6/14455 82.1 2.92
60H-2 19.05 11.91 12.57 5.94 55.3 57.1 18.0 3.25 26.11 63.6/14455 84.5 3.71
60HSP-2 19.05 11.91 12.57 5.94 55.3 57.1 18.0 3.25 26.11 96.1/21605 112.0 3.97
