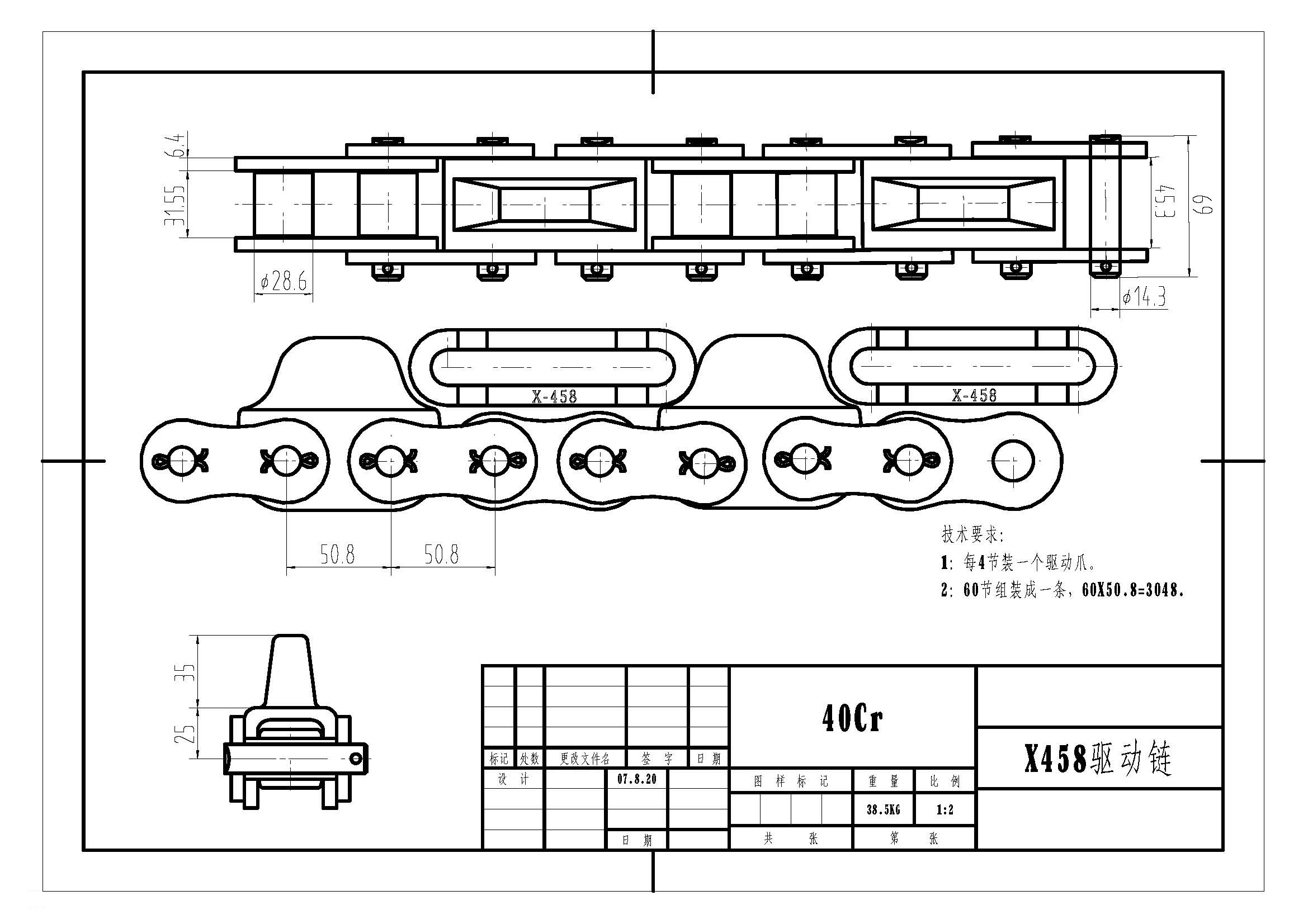

X458 Drive Chain
Material: 40Cr
For x458 chain
Pitch: 50.8mm
China Conveyor Line Parts manufacturer, chinese Conveyor Line Parts supplier, produce: Drive Chain,Drop Frged Chain,Multiflex Chain,Piling Car,Plastic Flat Top Chains,Pastic Modular Belts,Folded Chain,Painting Line,Scraper Chain,Track. We can produce as per customer's drawing or sample. Please feel free to send us your detail enquiries. E-mail: [email protected]
| Pitch | Pin Diameter | Pin Length | Other Dimensions | Ultimate Tensile Strength | |||||
| Chain Number | P | D | L | A | B | C | D | E | Q |
| 348 | 76.2mm | 76.6mm | 12.7mm | 46mm | 28mm | 13.2mm | 18.5mm | 14mm | 110 KN |
| 458 | 101.6mm | 102.4mm | 15.88mm | 57mm | 36mm | 16mm | 25.4mm | 17.5mm | 210 KN |
| 678 | 152.4mm | 153.2mm | 22mm | 77mm | 50.8mm | 21mm | 32mm | 25mm | 380 KN |
