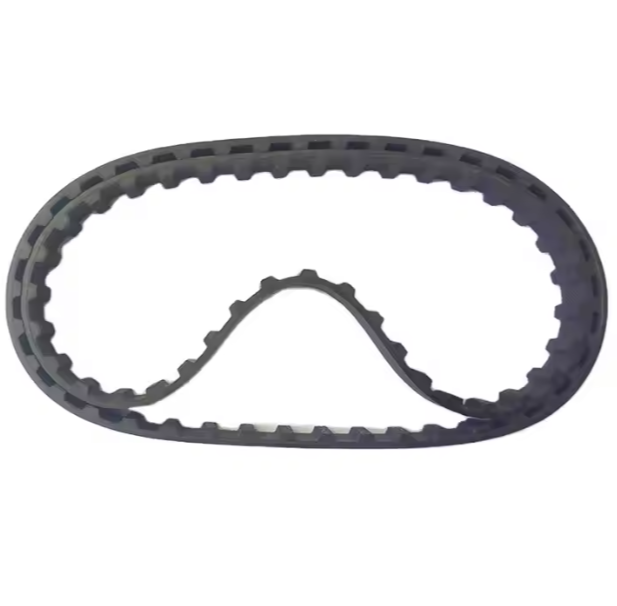

XL Timing Belt

Raydafon Group XL Timing Belt offers precision engineering for seamless power transmission. Built with durable materials, it ensures long-lasting performance in industrial applications, reducing downtime and maintenance costs. Ideal for engineers and mechanics, it delivers reliability and peace of mind. Unlike competitors, its superior design provides unmatched efficiency. Experience smooth operations with Raydafon Group’s trusted quality.

Send Inquiry

Product Description

		The XL Timing Belt is a top - tier power transmission component meticulously crafted to meet the demands of applications where compactness, precision, and reliability are non - negotiable. Engineered with advanced technology and high - quality materials, it serves as a cornerstone for efficient motion transfer in a wide array of industries.


Timing Belt XL Timing Belt

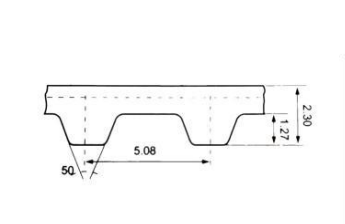

XL 037（9.5mm）
ITEM	TEETH	STRUCTURE	Dp	O.D.(De)	W	L	K	X	Dm	d	E	F	Flange I.D.	Flange Type
10XL	10	A\B	16.17	15.66	15	23	11	-	9.5	6	-	23	12	F-102312
11XL	11	A\B	17.79	17.28	15	23	11	-	9.5	6	-	23	13	F-102313
12XL	12	A\B	19.4	18.9	15	23	11	-	10	6	-	25	14	F-102514
14XL	14	A\B	22.64	22.13	15	23	11	-	15	6	-	28	18	F-102818
15XL	15	A\B	24.26	23.75	15	23	11	-	15	6	-	28	18	F-102818
16XL	16	A\B	25.87	25.36	15	23	11	-	16	6	-	31	20	F-103120
18XL	18	A\B	29.11	28.6	15	23	11	-	22	6	-	33	22	F-103322
19XL	19	A\B	30.72	30.22	15	23	11	-	24	6	-	35	22	F-103522
20XL	20	A\B	32.34	31.83	15	23	11	-	27	6	-	38	26	F-103826
21XL	21	A\B	33.96	33.45	15	23	11	-	28	6	-	38	26	F-103826
22XL	22	A\B	35.57	35.07	15	23	11	-	29	6	-	43	28	F-104328
24XL	24	A\B	38.81	38.3	15	23	11	-	33	8	-	44	32	F-104432
25XL	25	A\B	40.43	39.92	15	23	11	-	38	8	-	44	32	F-104432
26XL	26	A\B	42.04	41.53	15	23	11	-	38	8	-	47	34	F-104734
28XL	28	A\B	45.28	44.77	15	23	11	-	38	8	-	48	36	F-104836
30XL	30	A\B	48.51	48	15	23	11	-	38	8	-	55	39	F-105539
32XL	32	A\B	51.74	51.24	16	23	11	-	38	8	-	57	41	F-155741
34XL	34	A\B	54.98	54.47	16	23	11	-	38	8	-	61	41	F-156141
36XL	36	A\B	58.21	57.7	16	25	11	-	38	8	-	61	41	F-156141
38XL	38	A\B	61.45	60.94	16	25	11	-	38	8	-	65	50	F-156550
40XL	40	A\B	64.68	64.17	16	25	11	-	38	8	-	69	50	F-156950
42XL	42	A\B	67.91	67.41	16	25	11	-	38	8	-	74	53	F-157453
44XL	44	A\B	71.15	70.64	16	25	11	5	38	8	-	78	58	F-157858
45XL	45	W	72.77	72.26	16	25	11	5	38	10	60	-	-	-
48XL	48	W	77.62	77.11	16	25	11	5	38	10	64	-	-	-
50XL	50	W	80.85	83.58	16	25	11	5	38	10	67	-	-	-
57XL	57	W	90.55	91.66	16	25	11	5	38	10	74	-	-	-
60XL	60	W	97.02	96.51	16	25	11	5	38	10	83	-	-	-
70XL	70	W	113.19	112.68	16	25	11	5	38	10	100	-	-	-
72XL	72	W	116.43	115.92	16	25	11	5	38	10	102	-	-	-

China Belt manufacturer, chinese Belt supplier, produce: v belts, rubber timing belts (synchronous belts), auto timing belts, double-sided tooth synchronous belts,s step less speed change belts, multi-wedge belts, motorcycle V-belts, auto V-belts and various cutting V-belts, flat belts etc rubber drive belts and its auxiliary pulley series products.. We can produce as per customer's drawing or sample. Please feel free to send us your detail enquiries. E-mail: [email protected]

Hot Tags: Timing Belt S8m, China Timing Belt, S5m Timing Belts, T2.5 Timing Belt
