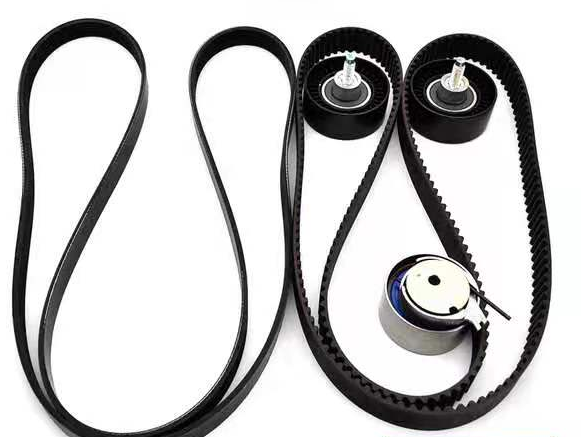

Auto Timing Belt
  • Auto Timing BeltAuto Timing Belt

Auto Timing Belt

Raydafon Group's Auto Timing Belt delivers precision engineering for reliable engine performance, crafted with durable materials for smooth operation. Perfect for car owners seeking longevity and efficiency, it enhances driving confidence and reduces maintenance hassles, offering superior quality with a trusted brand promise.
Send Inquiry
Product Description

Tips:（Timing Belt Structure)

1.Top rubber:(CR HNBR) to protect the lining tensile member

2.Teeth rubber:protect the adhesive force of thetensile member & maintain the shape of the rubber(CR,HNBR）

3.Tensile member:critical material to pass the dynamic forceGlass fiber)

4.Teeth fabric:maintain the rubber teeth shape


  Auto Timing Belt

Type ZA ZB ZH YH ZR YS ZS YA ZAS ZBS S8MYU FS MY MR RU ZLB
Pitch 9.53 9.53 9.53 8 9.53 8 9.53 8 9.53 9.53 8 9.53 8 9.53 9.53 9.53
Tooth height 1.91

2.29

 3.5 3.04 3.2 2 3.53 2.95 2.32 2.76 3.05 3.05 3.06 3.54 3.41 2.7
Belt height 4.1 4.5 5.5 5.2 5.7 5.1 5.7 5.2 4.62 5.06 5.3 5.35 5.2 5.69 5.4 5.05

  Auto Timing Belt



ZA
S8M
teeth number type width teeth number type width
teeth number type width teeth number type width
45 ZA 15-32mm 133 ZA 15-32mm
58 S8M 15-32mm 216 S8M 15-32mm
54 ZA 15-32mm 134 ZA 15-33mm
65 S8M 15-32mm 218 S8M 15-32mm
55 ZA 15-32mm 137 ZA 15-34mm
85 S8M 15-32mm 223 S8M 15-32mm
63 ZA 15-32mm 139 ZA 15-35mm
91 S8M 15-32mm 225 S8M 15-32mm
64 ZA 15-32mm 142 ZA 15-36mm
98 S8M 15-32mm 229 S8M 15-32mm
65 ZA 15-32mm 144 ZA 15-37mm
105 S8M 15-32mm 239 S8M 15-32mm
69 ZA 15-32mm 146 ZA 15-38mm
106 S8M 15-32mm 253 S8M 15-32mm
76 ZA 15-32mm 148 ZA 15-39mm
110 S8M 15-32mm 281 S8M 15-32mm
80 ZA 15-32mm 169 ZA 15-40mm
112 S8M 15-32mm


83 ZA 15-32mm



113 S8M 15-32mm


84 ZA 15-32mm



115 S8M 15-32mm


85 ZA 15-32mm



119 S8M 15-32mm


86 ZA 15-32mm



122 S8M 15-32mm


87 ZA 15-32mm



123 S8M 15-32mm


88 ZA 15-32mm



128 S8M 15-32mm


89 ZA 15-32mm



130 S8M 15-32mm


90 ZA 15-32mm



132 S8M 15-32mm


91 ZA 15-32mm



133 S8M 15-32mm


92 ZA 15-32mm



135 S8M 15-32mm


93 ZA 15-32mm



136 S8M 15-32mm


94 ZA 15-32mm



137 S8M 15-32mm


95 ZA 15-32mm



138 S8M 15-32mm


96 ZA 15-32mm



139 S8M 15-32mm


97 ZA 15-32mm



141 S8M 15-32mm


98 ZA 15-32mm



142 S8M 15-32mm


99 ZA 15-32mm



146 S8M 15-32mm


100 ZA 15-32mm



147 S8M 15-32mm


102 ZA 15-32mm



148 S8M 15-32mm


104 ZA 15-32mm



149 S8M 15-32mm


105 ZA 15-32mm



150 S8M 15-32mm


106 ZA 15-32mm



151 S8M 15-32mm


107 ZA 15-32mm



152 S8M 15-32mm


108 ZA 15-32mm



153 S8M 15-32mm


109 ZA 15-32mm



154 S8M 15-32mm


110 ZA 15-32mm



162 S8M 15-32mm


111 ZA 15-32mm



163 S8M 15-32mm


112 ZA 15-32mm



164 S8M 15-32mm


113 ZA 15-32mm



168 S8M 15-32mm


115 ZA 15-32mm



169 S8M 15-32mm


116 ZA 15-32mm



171 S8M 15-32mm


117 ZA 15-32mm



173 S8M 15-32mm


118 ZA 15-32mm



175 S8M 15-32mm


119 ZA 15-32mm



176 S8M 15-32mm


120 ZA 15-32mm



179 S8M 15-32mm


121 ZA 15-32mm



191 S8M 15-32mm


122 ZA 15-32mm



192 S8M 15-32mm


123 ZA 15-32mm



193 S8M 15-32mm


124 ZA 15-32mm



196 S8M 15-32mm


126 ZA 15-32mm



201 S8M 15-32mm


127 ZA 15-32mm



209 S8M 15-32mm


RU
ZBS RPP
teeth number type width teeth number type width
teeth number type width teeth number type width
59 RU 15-32mm 144 RU 15-32mm
55 ZBS 15-32mm 75 RPP 15-32mm
65 RU 15-32mm 145 RU 15-32mm
76 ZBS 15-32mm 76 RPP 15-32mm
70 RU 15-32mm 146 RU 15-32mm
77 ZBS 15-32mm 85 RPP 15-32mm
76 RU 15-32mm 148 RU 15-32mm
81 ZBS 15-32mm 94 RPP 15-32mm
78 RU 15-32mm 149 RU 15-32mm
83 ZBS 15-32mm 97 RPP 15-32mm
79 RU 15-32mm 150 RU 15-32mm
87 ZBS 15-32mm 101 RPP 15-32mm
83 RU 15-32mm 151 RU 15-32mm
89 ZBS 15-32mm 104 RPP 15-32mm
87 RU 15-32mm 152 RU 15-32mm
91 ZBS 15-32mm 108 RPP 15-32mm
89 RU 15-32mm 153 RU 15-32mm
92 ZBS 15-32mm 111 RPP 15-32mm
91 RU 15-32mm 154 RU 15-32mm
98 ZBS 15-32mm 113 RPP 15-32mm
92 RU 15-32mm 157 RU 15-32mm
99 ZBS 15-32mm 114 RPP 15-32mm
93 RU 15-32mm 158 RU 15-32mm
101 ZBS 15-32mm 116 RPP 15-32mm
95 RU 15-32mm 159 RU 15-32mm
112 ZBS 15-32mm 117 RPP 15-32mm
96 RU 15-32mm 163 RU 15-32mm
117 ZBS 15-32mm 118 RPP 15-32mm
97 RU 15-32mm 164 RU 15-32mm
118 ZBS 15-32mm 119 RPP 15-32mm
99 RU 15-32mm 167 RU 15-32mm
119 ZBS 15-32mm 124 RPP 15-32mm
101 RU 15-32mm 169 RU 15-32mm
120 ZBS 15-32mm 125 RPP 15-32mm
102 RU 15-32mm 175 RU 15-32mm
122 ZBS 15-32mm 128 RPP 15-32mm
103 RU 15-32mm 176 RU 15-32mm
123 ZBS 15-32mm 129 RPP 15-32mm
104 RU 15-32mm 177 RU 15-32mm
134 ZBS 15-32mm 130 RPP 15-32mm
105 RU 15-32mm 178 RU 15-32mm
135 ZBS 15-32mm 131 RPP 15-32mm
106 RU 15-32mm 192 RU 15-32mm
136 ZBS 15-32mm 135 RPP 15-32mm
107 RU 15-32mm 196 RU 15-32mm
137 ZBS 15-32mm 136 RPP 15-32mm
108 RU 15-32mm 197 RU 15-32mm
139 ZBS 15-32mm 138 RPP 15-32mm
109 RU 15-32mm 63 RU 15-32mm
141 ZBS 15-32mm 140 RPP 15-32mm
110 RU 15-32mm



143 ZBS 15-32mm 150 RPP 15-32mm
111 RU 15-32mm



149 ZBS 15-32mm 153 RPP 15-32mm
112 RU 15-32mm



153 ZBS 15-32mm 158 RPP 15-32mm
113 RU 15-32mm



163 ZBS 15-32mm 164 RPP 15-32mm
116 RU 15-32mm



203 ZBS 15-32mm 167 RPP 15-32mm
117 RU 15-32mm



207 ZBS 15-32mm 168 RPP 15-32mm
118 RU 15-32mm



111 ZBS 15-32mm


119 RU 15-32mm









120 RU 15-32mm









122 RU 15-32mm









123 RU 15-32mm









124 RU 15-32mm









125 RU 15-32mm









126 RU 15-32mm









127 RU 15-32mm









128 RU 15-32mm









129 RU 15-32mm









130 RU 15-32mm









131 RU 15-32mm









132 RU 15-32mm









133 RU 15-32mm









134 RU 15-32mm









135 RU 15-32mm









136 RU 15-32mm









137 RU 15-32mm









142 RU 15-32mm









MR
MY


teeth number type width teeth number type width
teeth number type width


70 MR 15-32mm 146 MR 15-32mm
65 MY 15-32mm


78 MR 15-32mm 147 MR 15-32mm
95 MY 15-32mm


87 MR 15-32mm 148 MR 15-32mm
99 MY 15-32mm


88 MR 15-32mm 150 MR 15-32mm
100 MY 15-32mm


89 MR 15-32mm 151 MR 15-32mm
101 MY 15-32mm


91 MR 15-32mm 152 MR 15-32mm
102 MY 15-32mm


92 MR 15-32mm 153 MR 15-32mm
103 MY 15-32mm


94 MR 15-32mm 157 MR 15-32mm
105 MY 15-32mm


95 MR 15-32mm 163 MR 15-32mm
106 MY 15-32mm


96 MR 15-32mm 164 MR 15-32mm
107 MY 15-32mm


97 MR 15-32mm 167 MR 15-32mm
108 MY 15-32mm


98 MR 15-32mm 177 MR 15-32mm
109 MY 15-32mm


101 MR 15-32mm 188 MR 15-32mm
110 MY 15-32mm


102 MR 15-32mm 253 MR 15-32mm
111 MY 15-32mm


103 MR 15-32mm



112 MY 15-32mm


104 MR 15-32mm



114 MY 15-32mm


105 MR 15-32mm



116 MY 15-32mm


106 MR 15-32mm



117 MY 15-32mm


107 MR 15-32mm



119 MY 15-32mm


108 MR 15-32mm



121 MY 15-32mm


109 MR 15-32mm ZAS

123 MY 15-32mm


110 MR 15-32mm 119


124 MY 15-32mm


111 MR 15-32mm 122


127 MY 15-32mm


112 MR 15-32mm 124


128 MY 15-32mm


113 MR 15-32mm 133


129 MY 15-32mm


114 MR 15-32mm



131 MY 15-32mm


116 MR 15-32mm



137 MY 15-32mm


117 MR 15-32mm



143 MY 15-32mm


118 MR 15-32mm



144 MY 15-32mm


119 MR 15-32mm



145 MY 15-32mm


120 MR 15-32mm



146 MY 15-32mm


121 MR 15-32mm



155 MY 15-32mm


122 MR 15-32mm



159 MY 15-32mm


123 MR 15-32mm



163 MY 15-32mm


124 MR 15-32mm



169 MY 15-32mm


125 MR 15-32mm



171 MY 15-32mm


127 MR 15-32mm



175 MY 15-32mm


128 MR 15-32mm



177 MY 15-32mm


129 MR 15-32mm



178 MY 15-32mm


130 MR 15-32mm



191 MY 15-32mm


131 MR 15-32mm



197 MY 15-32mm


133 MR 15-32mm



198 MY 15-32mm


134 MR 15-32mm



211 MY 15-32mm


136 MR 15-32mm









138 MR 15-32mm









139 MR 15-32mm









140 MR 15-32mm









141 MR 15-32mm









143 MR 15-32mm









144 MR 15-32mm






















YU

ZB


teeth number type width teeth number type width
teeth number type width
teeth number type
65 YU 15-32mm 191 YU 15-32mm
75 ZB 15-32mm
55 ZLB
69 YU 15-32mm 193 YU 15-33mm
76 ZB 15-32mm
83 ZLB
99 YU 15-32mm 195 YU 15-34mm
77 ZB 15-32mm
92 ZLB
100 YU 15-32mm 197 YU 15-35mm
80 ZB 15-32mm
122 ZLB
101 YU 15-32mm 200 YU 15-36mm
83 ZB 15-32mm
163 ZLB
103 YU 15-32mm 201 YU 15-37mm
87 ZB 15-32mm


104 YU 15-32mm 202 YU 15-38mm
90 ZB 15-32mm


105 YU 15-32mm 207 YU 15-39mm
98 ZB 15-32mm
ZAR
106 YU 15-32mm 211 YU 15-40mm
117 ZB 15-32mm
124 ZAR
107 YU 15-32mm 223 YU 15-41mm
118 ZB 15-32mm


109 YU 15-32mm 225 YU 15-42mm
119 ZB 15-32mm


110 YU 15-32mm 226 YU 15-43mm
122 ZB 15-32mm


111 YU 15-32mm 228 YU 15-44mm
123 ZB 15-32mm
ZAS
113 YU 15-32mm 238 YU 15-45mm
124 ZB 15-32mm
124 ZAS
114 YU 15-32mm 239 YU 15-46mm
130 ZB 15-32mm
122 ZAS
116 YU 15-32mm 241 YU 15-47mm
134 ZB 15-32mm
119 ZAS
117 YU 15-32mm 245 YU 15-48mm
135 ZB 15-32mm
133 ZAS
118 YU 15-32mm 253 YU 15-49mm
136 ZB 15-32mm


119 YU 15-32mm 257 YU 15-50mm
137 ZB 15-32mm
ZBR
121 YU 15-32mm 259 YU 15-51mm
140 ZB 15-32mm
135 ZBR
122 YU 15-32mm 265 YU 15-52mm
141 ZB 15-32mm
137 ZBR
123 YU 15-32mm 281 YU 15-53mm
149 ZB 15-32mm


124 YU 15-32mm 106 YU 15-54mm
152 ZB 15-32mm
SP
125 YU 15-32mm



153 ZB 15-32mm
58 SP
127 YU 15-32mm



163 ZB 15-32mm
130 SP
129 YU 15-32mm



169 ZB 15-32mm
STDN
133 YU 15-32mm



219 ZB 15-32mm
136 STDN
134 YU 15-32mm







173 STDN
135 YU 15-32mm









137 YU 15-32mm







ZD
140 YU 15-32mm







111 ZD
141 YU 15-32mm









142 YU 15-32mm









144 YU 15-32mm







RPP8M
145 YU 15-32mm







776 RPP
146 YU 15-32mm









147 YU 15-32mm







ZAD
148 YU 15-32mm







88 ZAD
152 YU 15-32mm







111 ZAD
153 YU 15-32mm









154 YU 15-32mm







8RPP
155 YU 15-32mm







193 8RPP
156 YU 15-32mm







129 8RPP
159 YU 15-32mm









164 YU 15-32mm









168 YU 15-32mm







HBNR125
169 YU 15-32mm





RPP
SHPN158
170 YU 15-32mm






SHPN125
173 YU 15-32mm






SHPN129
177 YU 15-32mm







SHDS154
187 YU 15-32mm







SHX119
