Trapezoidal Tooth L075

Raydafon Group's Trapezoidal Tooth L075 is a precision-engineered component ideal for industrial applications, offering superior durability and seamless integration. Crafted from high-quality materials, it enhances efficiency and reliability for engineers and manufacturers. Experience smoother operations and lasting performance with this innovative solution.

Send Inquiry

Product Description

Trapezoidal Tooth L075 Pulleys.pdf

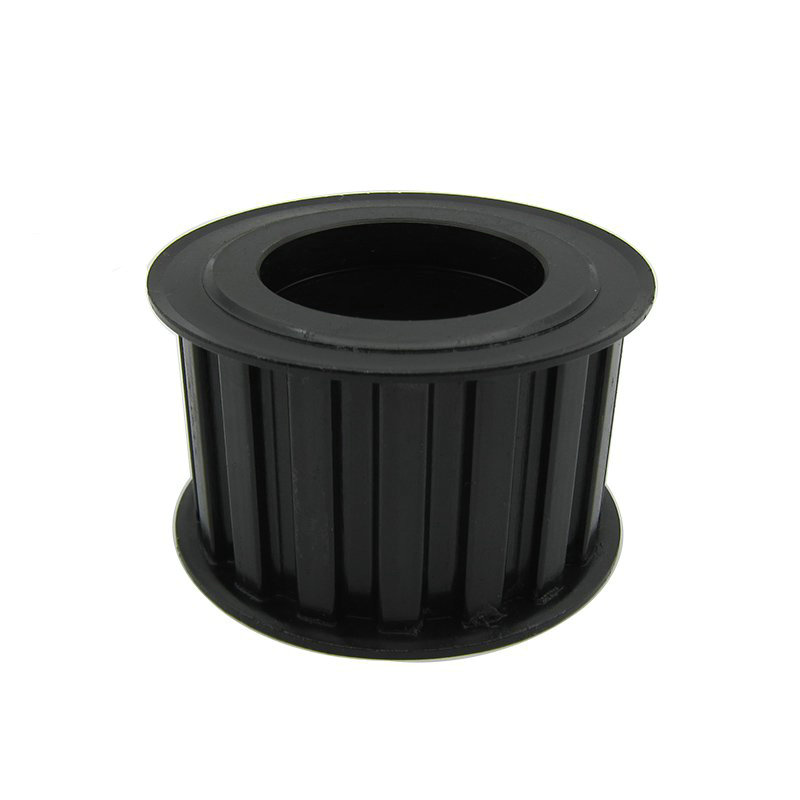

Trapezoidal Tooth L075 (according to your drawing)

L 075（19.1mm）
ITEM	TEETH	STRUCTURE	Dp	O.D.(De)	W	L	K	X	Dm	d	E	F	Flange I.D.	Flange Type
10L	10	A\B	30.32	29.56	26	38	21	-	20	8	-	35	22	F-153522
12L	12	A\B	36.38	35.62	26	38	21	-	25	8	-	43	28	F-154328
14L	14	A\B	42.45	41.68	26	38	21	-	30	10	-	47	34	F-154734
15L	15	A\B	45.48	44.72	26	38	21	-	32	10	-	51	36	F-155136
16L	16	A\B	48.51	47.75	26	38	21	-	34	12	-	55	39	F-155539
17L	17	A\B	51.54	50.78	26	38	21	-	35	12	-	57	41	F-155741
18L	18	A\B	54.57	53.81	26	38	21	-	36	12	-	61	41	F-156141
19L	19	A\B	57.61	56.84	26	38	21	-	38	12	-	65	50	F-156550
20L	20	A\B	60.64	59.88	26	38	21	-	40	12	-	65	50	F-156550
21L	21	A\B	63.67	62.91	26	38	21	-	42	12	-	69	50	F-156950
22L	22	A\B	66.7	65.94	26	38	21	-	44	12	-	74	53	F-157453
24L	24	A\B	72.77	72	26	38	21	-	44	12	-	78	58	F-157858
25L	25	A\B	75.8	75.04	26	38	21	-	44	12	-	83	63	F-158363
26L	26	A\B	78.83	78.07	26	38	21	-	44	12	-	86	66	F-158666
28L	28	A\B	84.89	84.13	26	38	21	-	50	12	-	93	75	F-157375
30L	30	A\B	90.96	90.2	26	38	21	-	50	14	-	99	78	F-159978
32L	32	A\B	97.02	96.26	26	38	21	-	50	14	-	105	84	F-1510584
34L	34	A\B	103.08	102.32	26	41	21	-	56	14	-	112	90	F-1511290
36L	36	A\B	109.15	108.39	26	41	21	-	56	14	-	115	90	F-1511590
38L	38	A\B	115.22	114.45	26	41	21	-	60	14	-	126	100	F-15126100
40L	40	A\B	121.28	120.51	26	41	21	-	60	14	-	126	100	F-15126100
42L	42	A\B	127.34	126.58	26	41	21	-	60	14	-	131	111	F-15131111
44L	44	A\B	133.4	132.64	26	46	21	-	65	14	-	138	125	F-15138125
45L	45	W	136.44	135.67	26	46	21	9	65	14	116	-	-	-
48L	48	W	145.53	144.77	26	46	21	9	65	14	124	-	-	-
50L	50	W	151.6	150.83	26	46	21	9	65	14	130	-	-	-
56L	56	W	169.79	169.02	26	46	21	9	65	14	148	-	-	-
60L	60	W	181.91	181.15	26	46	21	9	65	14	160	-	-	-
72L	72	W	218.3	217.53	26	46	21	9	65	14	197	-	-	-
84L	84	W	254.68	253.92	26	46	21	9	65	14	233	-	-	-

(according to your drawing)
