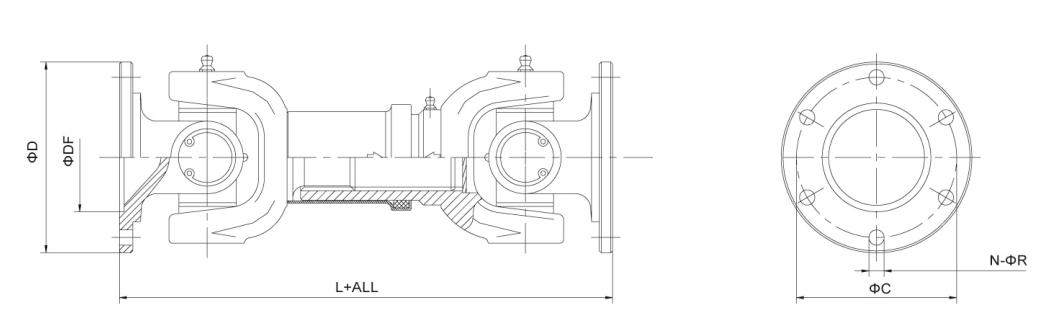

NO | L+ALL | D | Df | N-R | G | CROSS |
1 | L+ALL | 58 | 30 | 4-5.00 | 47 | φ18X47 |
2 | 65 | 35 | 4-6.00 | 52 | φ20X50 | |
3 | 75 | 42 | 6-6.00 | 62 | φ23.8X61.3 | |
4 | 90 | 47 | 4-8.00 | 74.5 | φ27X74.6 | |
5 | 100 | 57 | 4-8.00 | 79.4 | φ27X81.8 | |
6 | 100 | 57 | 6-8.00 | 84 | φ30X81.8 | |
7 | 120 | 75 | 8-10.00 | 101.5 | φ35X97 | |
8 | 120 | 75 | 8-12.00 | 130 | φ39.68X115.7 | |
9 | 150 | 90 | 8-12.00 | 130 | φ42/48X115.7 | |
10 | 150 | 90 | 8-12.00 | 130 | φ 45X123 | |
11 | 150/165 | 90 | 8-14.00 | 140 | φ52X133 | |
12 | 180 | 110 | 10-16.00 | 155 | φ57X153 |

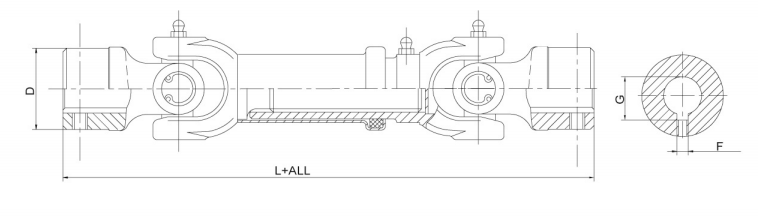

NO | L+ALL | D | F | G | CROSS |
1 | L+ALL | 43/44 | 8 | 22.8 | 018X47 |
2 | 55/57 | 33.3 | 中23.82X61.3 | ||
3 | 55/57 | 38.7 | 630X81.8 |

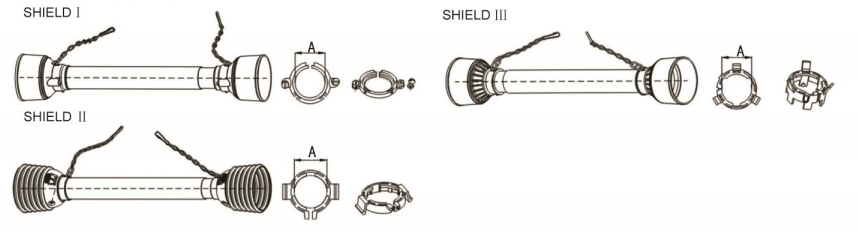

SIZE | SHIELD TUBE DIAMETER | BEARING RING DIMENSION A ( mm) | ||
OUTER | INNER | OUTER | INNER | |
1 | 42mm | 35mm | ||
2 | 66.3mm | 60.2mm | 47mm | 41mm |
3/4 | 54mm | 47mm | ||
5/6/7 | 81mm | 75mm | 68.5mm | 59.5mm |
8 | 70.2mm | 64.3mm | ||
