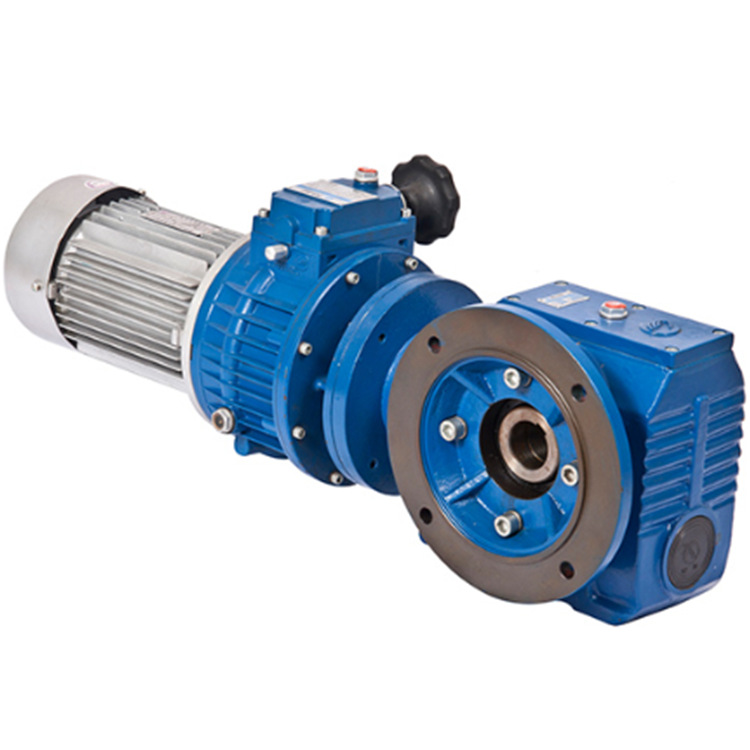

UD Series Plant Cone-disk Stepless Speed Variator

Raydafon Group's UD Series Plant Cone-disk Stepless Speed Variator offers precise, continuous speed control for industrial applications, featuring durable materials and innovative design to enhance efficiency for engineers and manufacturers. It solves variable speed challenges with unmatched reliability, delivering smooth operation and reduced downtime, making it the superior choice for demanding environments.

Send Inquiry

Product Description

UD series planet cone-disk stepless speed variator
1.Brief introduction

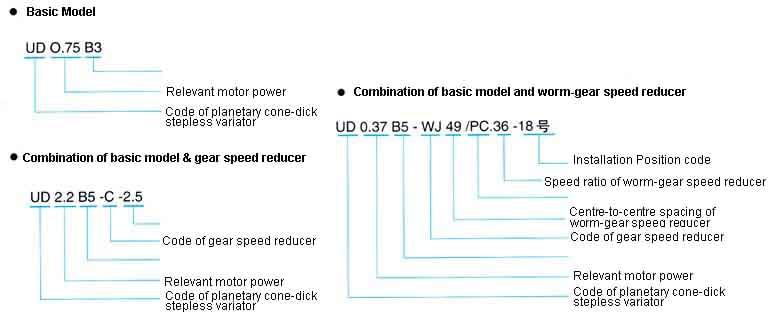

2.Model & mark
3.Performance parameter
4.Outline & installation size
5.Notice
6.WJ/F install the sketch map in hanging type

Basic character table
TYPE	Power of motor kw	Input Speed r.p.m	Output Speed r.p.m	Output torque N.m	Skit possibility %	Temperature Increase
UD0.18	0.18	1500	950-165	1.5-3	3-8.8	46
UD0.25	0.25	1 500	950-165	2-4	3-8.8	46
UD0.37	0.37	1500	950-165	3-6	3-8.8	46
UD0.55	0.55	1500	950- 165	4-8	3-8.8	46
UD0.75	0.75	1500	950-165	6-12	3-8.8	46
UD1.1	1.1	1500	950-165	9-18	3-8.8	46
UD1.5	1.5	1500	950-165	12-24	3-8.8	46
UD2.2	2.2	1500	1000-200	18-36	3-8.8	48
UD3	3	1500	1000-200	24-48	3-8.8	48
UD4	4	1500	1000-200	32-64	3-8.8	48
UD5.5	5.5	1500	1000-200	45-90	3-8.8	50
UD7.5	7.5	1500	1000-200	59-118	3-8.8	50

Characteristic table of basic model &NMRV worm-gear speed reducer							Table 2
Input power (w)			22	3	4	55	75
Input rotation Tmm			1500r/min
		tmm	Allowable output torque
UDC	25	80-400	00-44	118-50	157-78	216-108	294-147
	3.3	60-300	118-56	158-75	212-100	298-140	398-196
	5	40-200	176-88	235-118	314-157	441-216	558-294

Charactericstic table of basic model & first gear speed reducer Table 3
TYPE	Matching motor		Output rotation r/min	Output torque N.m	Weight kg
	Type	Power kw
UD0.55-40D	Y801-4B5	0.55	195-35	19-38	50
UD0.75-40D	Y802-4B5	0.75		28-56	50

UD Series Plant Cone-disk Stepless Speed Variator

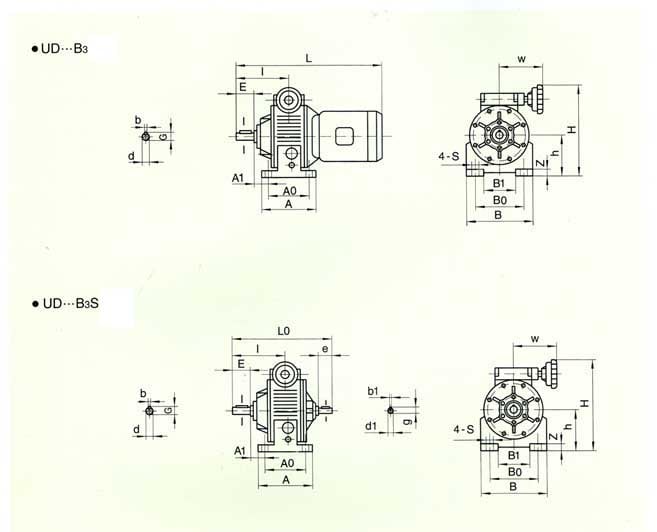

Figure size &installation size for UD--Bs &B3S																					Table 5
Type	Installation size Output shaft size											Input shaft size				Figure size
Type	h	A0	A1	B0	B1	Z	S	d(k6)	b	G	E	d,(k6)	b1	g	e	A	B	I	W	H	L0	L
UD0.18	66	85	2	80	50	10	9	11	4	12.5	30	-	-	-	-	105	109	74	95	170	-	312
UD0.25	70	94	48	106	70	10	9	14	5	16	30	14	5	16	30	120	136	94	105	185	208	346
UD0.37	75	94	48	110	75	10	9	14	5	16	30	14	5	16	30	120	145	94	105	195	208	346
UD0.55	90	105	72	130	90	15	11	19	6	21.5	40	19	6	21.5	40	135	170	121	110	230	240	400
UD0.75	90	105	72	130	90	15	11	19	6	21.5	40	19	6	21.5	40	135	170	121	110	230	240	400
UD1.1	106	125	85	160	104	15	13	24	8	27	40	22	6	24.5	40	150	200	141	135	250	270	455
UD1.5	125	140	95	180	130	18	13	24	8	27	50	22	6	24.5	50	170	230	154	135	290	305	500
UD2.2	150	230	25	245	190	25	14	30	8	33	60	24	8	27	50	270	300	191	166	350	387	588
UD3																						588
UD4																						608
UD5.5	200	250	33	315	225	30	18	35	10	38	70	32	10	35	60	290	365	201	194	447	428	714
UD7.5	200	250	33	315	225	30	18	35	10	38	70	32	10	35	60	290	365	201	194	447	428	754

UD Series Plant Cone-disk Stepless Speed Variator

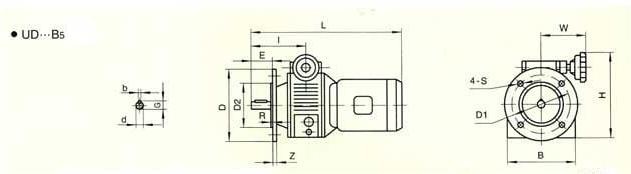

UD B5														Table 6
Type	Installation Size					Output shaft size				Figure size
Type	D1	D2(g6)	Z	R	S	d(k6)	b	G	E	D	B	-	w	H	L
UD0.18	75	60	-	3	M5	11	4	12.5	30	90	109	74	95	156	312
UD0.25	115	95	10	3	9	14	5	16	30	140	136	94	105	183	346
UD0.37	115	95	10	3	9	14	5	16	30	140	145	94	105	188	346
UD0.55	165	130	13	3.5	11	19	6	21.5	40	200	170	121	110	225	400
UD0.75	165	130	13	3.5	11	19	6	21.5	40	200	170	121	110	225	400
UD1.1	165	130	13	3.5	11	24	8	27	40	200	200	141	135	240	455
UD1.5	165	130	13	3.5	11	24	8	27	50	200	230	154	135	285	500
UD2.2	215	180	16	4	15	28	8	33	60	250	300	191	166	350	588
UD3	215	180	16	4	15	28	8	33	60	250	300	191	166	350	608
UD4	215	180	16	4	15	28	8	33	60	250	300	191	166	350	608
UD5.5	265	230	20	5	19	38	10	38	70	300	365	201	194	474	714
UD7.5	265	230	20	5	19	38	10	38	70	300	365	201	194	474	754

UD Series Plant Cone-disk Stepless Speed Variator

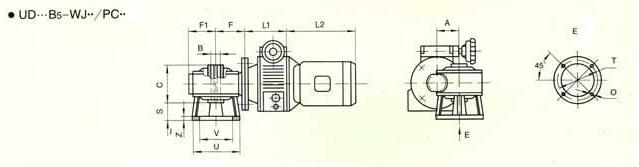

UD Bs WJ/PC													Table 7
Type	A	B (H7)	C	F	F1	L1	L2	U	V (H8)	T	Z	S	O
UD0.18B5-WJ40/PC	40	19	64	60	56	73	225	110	60	87	9	29	4x9
UD0.25B5-WJ49/PC	49	25	82	68	64	102	242	125	70	105	10	44	4x9
UD0.37B5-WJ49PC	49	25	82	68	64	102	242	125	70	105	10	44	4x9
UD0.55B5 -WJ62/PC	62	25	120	90	86	132	257	180	115	150	11	57	4x11
UD0.75B5-WJ62/PC	62	25	120	90	86	132	257	180	115	150	11	57	4x11
UD1.1B5-WJ87/PC	87	35	140	121	116	158	262	210	152	180	15	80	4x13
UD1.5B5-WJ87/PC	87	35	140	121	116	169	287	210	152	180	15	80	4x13
