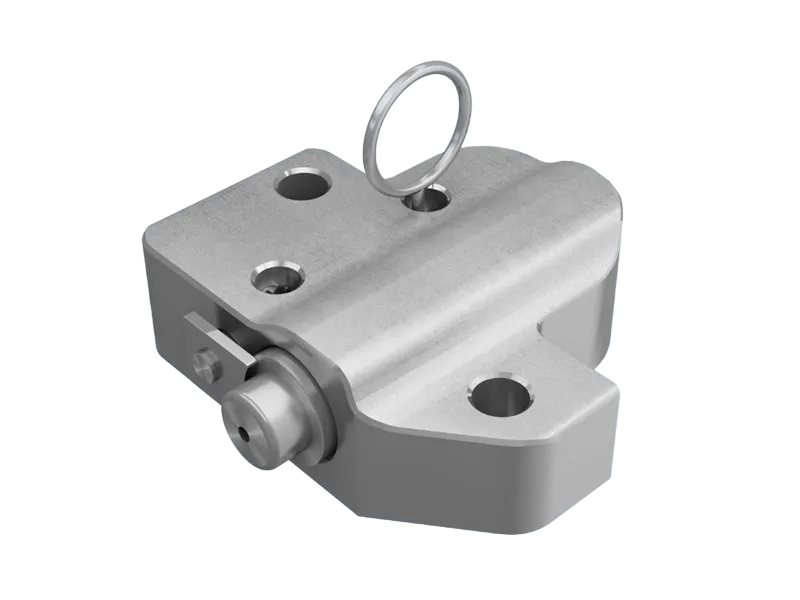

Products mainly include roller chain, sleeve chain, tooth chain and timing system;Have the ability of system modeling design and experimental verification. and have advanced technology with independent intellectual property rights.Products are widely used in automobile engines.

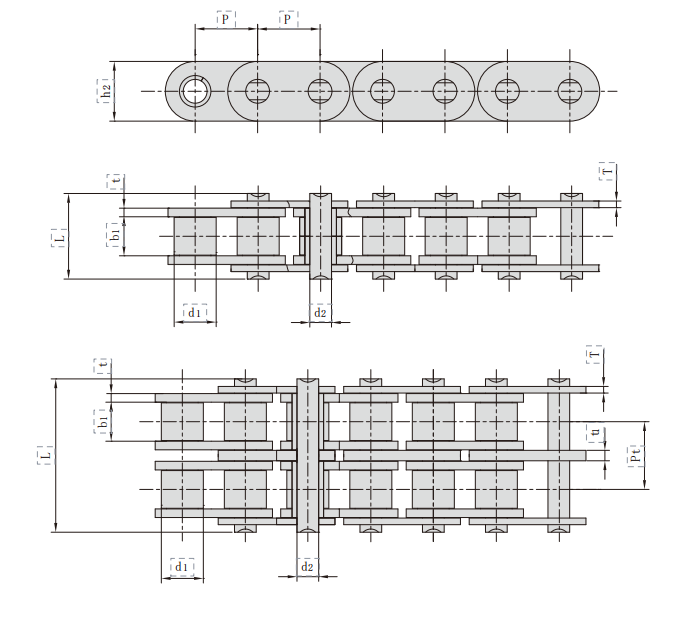

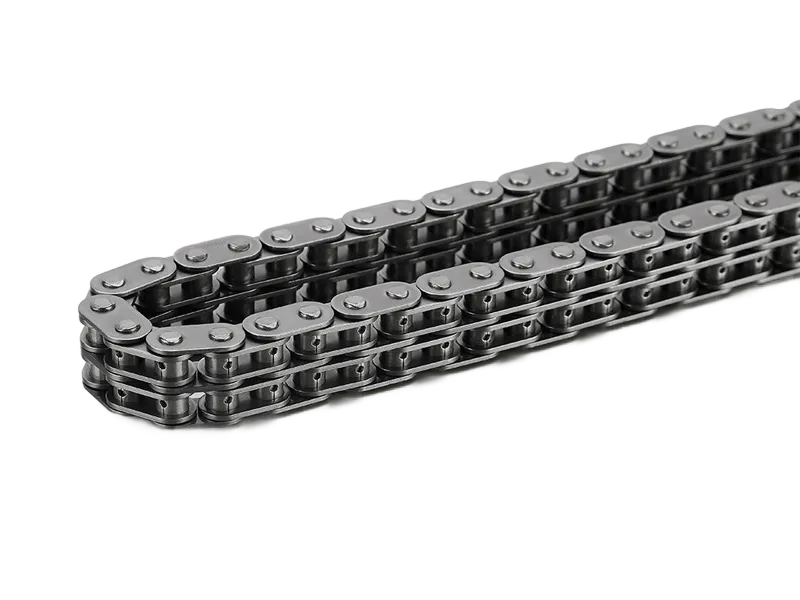

| Chain No. | Pitch | Bush diameter | Width between inner plates | Pin diameter | Pin length | Inner plate depth | Plate thickness | Transverse pitch | Tensile strength | Weight per meter | |
| P | max | b1 min | d2 max | L max | h2 max | t/t1 max | T max | Pt | min | q | |
| mm | mm | mm | mm | mm | mm | m m | mm | mm | kN/lbf | kg/m | |
| P7 | 7.000 | 4.00 | 3.50 | 2.70 | 9.60 | 6.8 | 1.15 | 1.00 | - | 6.9/1551 | 0.31 |
| P7F1 | 7.000 | 4.00 | 3.40 | 2.70 | 9.80 | 6.8 | 1.20 | 1.20 | - | 6.9/1551 | 0.33 |
| 05C | 8.000 | 5.00 | 4.76 | 3.15 | 11.80 | 7.6 | 1.30 | 1.00 | - | 8.5/1932 | 0.35 |
| 06D | 9.525 | 6.35 | 3.80 | 4.45 | 10.70 | 9.6 | 1.35 | 1.04 | - | 9.0/2024 | 0.41 |
| 06DTF1 | 9.525 | 6.35 | 5.72 | 4.45 | 14.25 | 9.6 | 1.80 | 1.30 | - | 14.5/3259 | 0.57 |
| 06DTF2 | 9.525 | 6.35 | 5.72 | 4.45 | 14.55 | 9.6 | 1.75 | 1.40 | - | 14.5/3259 | 0.60 |
| 06DF2-2 | 9.525 | 6.35 | 3.80 | 4.46 | 18.80 | 9.6 | 1.35/1.40 | 1.04 | 8.30 | 16.2/3641 | 0.76 |
| 06DF3-2 | 9.525 | 6.35 | 4.40 | 4.46 | 21.70 | 9.6 | 1.50 | 1.30 | 9.70 | 18.7/4203 | 0.86 |

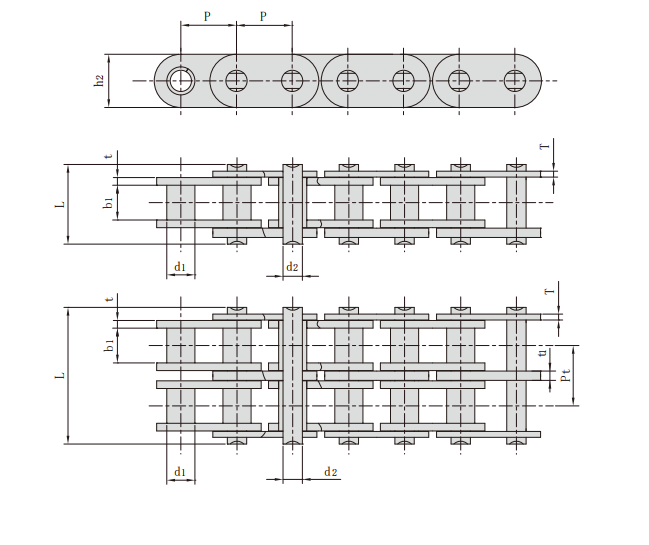

| Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Inner plate depth | Plate thickness | Transverse pitch | Tensile strength | Weight per meter | |
| P | d1 max | b1 min | d2 max | L max | h2 max | t/t1 max | T max | Pt | Q min | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | kg/m | |
| 05BT | 8.000 | 5.65 | 4.60 | 3.05 | 12.15 | 7.65 | 1.3 | 1.20 | - | 8.5/1912 | 0.41 |
| 06BT | 9.525 | 6.35 | 5.75 | 3.28 | 12.50 | 8.20 | 1.3 | 1.04 | - | 9.0/2025 | 0.38 |
| 06BT-2 | 9.525 | 6.35 | 5.75 | 3.28 | 22.90 | 8.20 | 1.3/1.6 | 1.04 | 10.24 | 16.9/3802 | 0.67 |
| 06BTH-2 | 9.525 | 6.35 | 5.72 | 3.28 | 25.10 | 8.20 | 1.6 | 1.20 | 11.40 | 17.8/4005 | 0.86 |

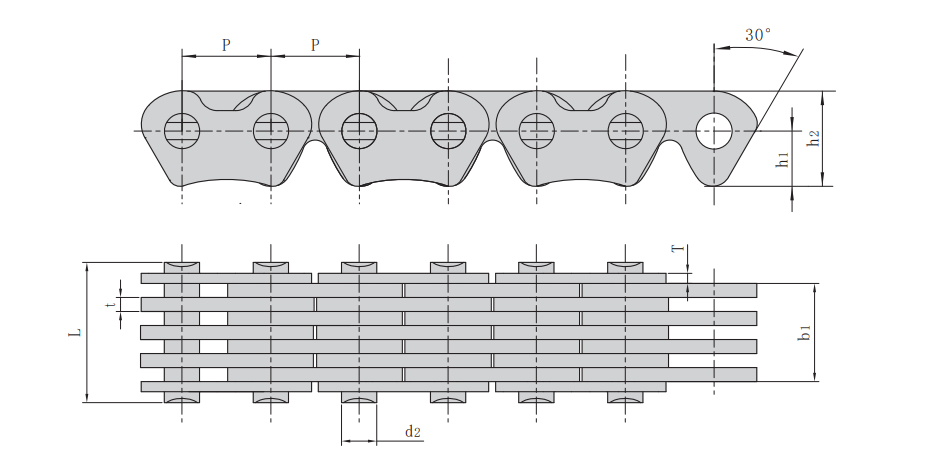

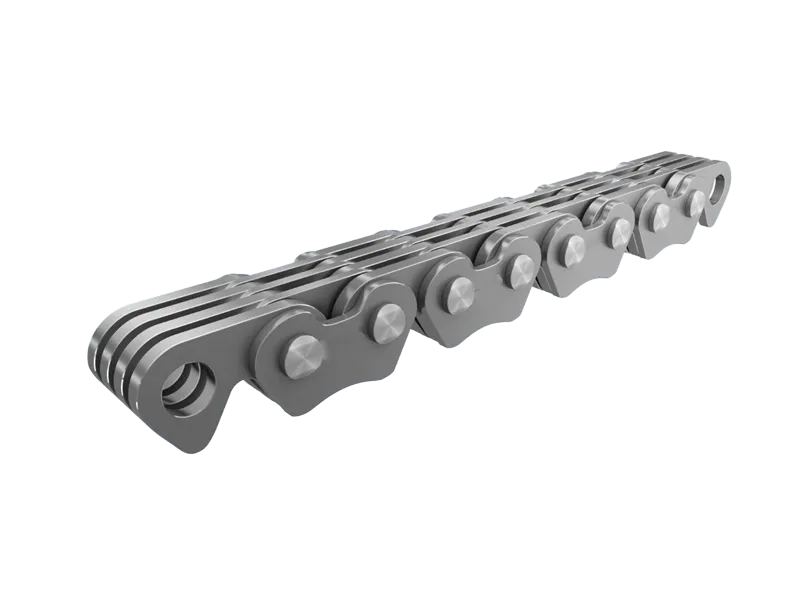

| Chain No. | Pitch | Chain width | Pin diameter | Pin length | Plate depth | Plate thickness | Guide form | Number of plate | Tensile strength | Weight per meter | |
| P | b1 min | d2 max | L max | h2 max | t max | T max | n | min | q | ||
| mm | mm | mm | mm | mm | mm | mm | kN/lbf | kg/m | |||
| CL04DF3 | 6.35 | 7.80 | 2.70 | 11.20 | 7.13 | 1.04/1.40 | 1.04 | Outside | 8(4×4) | 10.0/2250 | 0.38 |
| 6.35 | 8.86 | 2.70 | 12.30 | 7.13 | 1.04/1.40 | 1.04 | Outside | 9(4×5) | 12.5/2813 | 0.41 | |
| CL04DF10 | 6.35 | 8.60 | 2.72 | 12.70 | 7.13 | 1.20 | 1.20 | Outside | 9(5×4) | 12.0/2700 | 0.41 |
| CL05D | 8.00 | 6.50 | 2.92 | 10.48 | 9.59 | 1.30 | 1.04 | Outside | 7(3×4) | 12.0/2700 | 0.46 |
| 8.00 | 7.80 | 2.92 | 11.78 | 9.59 | 1.30 | 1.04 | Outside | 8(4×4) | 16.0/3600 | 0.52 | |
| CL05V | 8.00 | 7.70 | 3.15 | 11.80 | 9.59 | 1.30 | 1.00 | Outside | 8(4×4) | 12.0/2700 | 0.48 |
