Roller chain for engine timing is mainly used for automobile engine timing system, oil pump, balance shaft and common rail pump drive system etc.. This chain is the key engine component with high strength and durability.

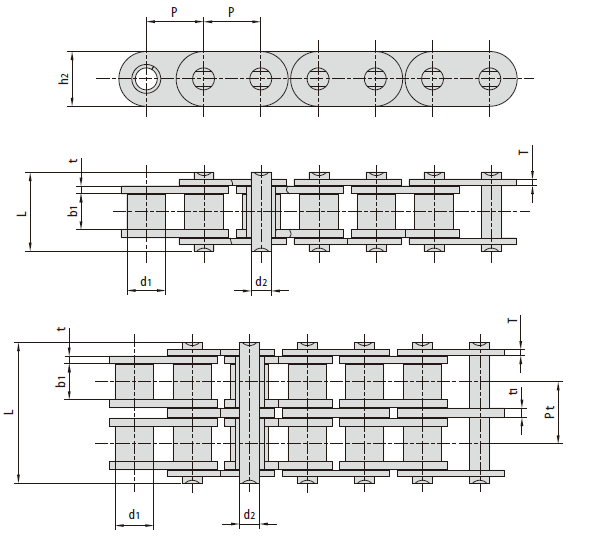

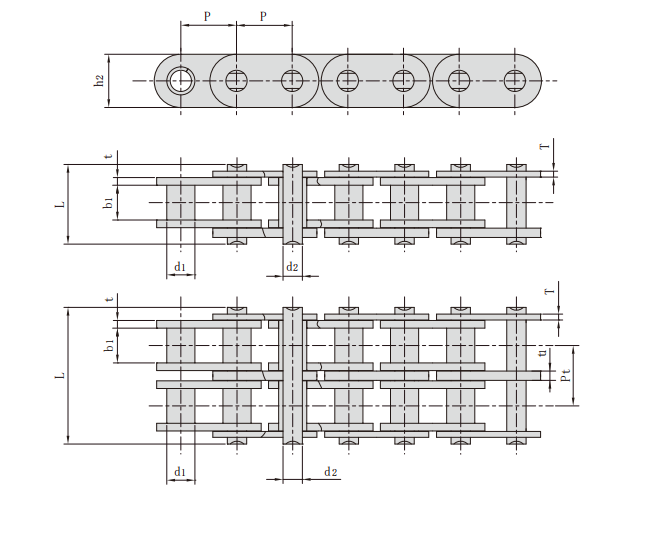

| Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Inner plate depth | Plate thickness | Transverse pitch | Tensile strength | Weight per meter | |
| P | d1 max | b1 min | d2 max | L max | h2 max | t/t1 max | T max | Pt | Q min | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | kg/m | |
| 05BT | 8.000 | 5.65 | 4.60 | 3.05 | 12.15 | 7.65 | 1.3 | 1.20 | - | 8.5/1912 | 0.41 |
| 06BT | 9.525 | 6.35 | 5.75 | 3.28 | 12.50 | 8.20 | 1.3 | 1.04 | - | 9.0/2025 | 0.38 |
| 06BT-2 | 9.525 | 6.35 | 5.75 | 3.28 | 22.90 | 8.20 | 1.3/1.6 | 1.04 | 10.24 | 16.9/3802 | 0.67 |
| 06BTH-2 | 9.525 | 6.35 | 5.72 | 3.28 | 25.10 | 8.20 | 1.6 | 1.20 | 11.40 | 17.8/4005 | 0.86 |
