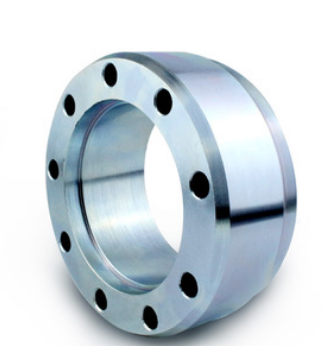

Steel Hubs For Split Taper Bushings

Raydafon Group's Steel Hubs For Split Taper Bushings deliver unmatched durability and precision, crafted from high-grade steel for seamless power transmission in industrial machinery. Perfect for engineers and manufacturers, these hubs ensure reliable performance, reducing downtime and enhancing efficiency. Experience superior quality and long-lasting value with our innovative design that outperforms competitors—trust Raydafon Group for robust solutions that drive success.

Send Inquiry

Product Description

Our Steel Hubs For Split Taper Bushings are engineered with precision and high - quality materials to meet the demanding requirements of various industrial applications.

1. Superior Design and Construction

These steel hubs are designed to be used in conjunction with split taper bushings, providing a reliable and efficient connection. The split taper bushing design allows for easy installation and removal. It can be quickly mounted onto shafts of different diameters by simply tightening the bolts, which firmly secures the hub to the shaft. The hubs are made from high - strength steel, ensuring excellent durability and resistance to wear, even under heavy - load and high - torque conditions.

2. Key Advantages

High Torque Transmission: They can effectively transmit high torque between the shaft and the connected components, making them suitable for applications where power transfer is crucial.

Accurate Alignment: The design ensures accurate alignment of the hub with the shaft, reducing the risk of misalignment - related failures such as premature bearing wear and vibration issues.

Versatility: Compatible with a wide range of shaft sizes and applications, these hubs offer great flexibility in industrial machinery design and maintenance.

3. Wide Application Scenarios

Industrial Machinery: They are commonly used in conveyors, pumps, fans, and other industrial machinery. For example, in conveyor systems, these hubs help to transfer power from the motor to the conveyor belts, ensuring smooth and efficient operation.

Power Transmission Equipment: Ideal for use in gearboxes, couplings, and other power - transmission components, where reliable torque transfer and connection are essential.

In summary, our Steel Hubs For Split Taper Bushings offer a combination of high - quality construction, excellent performance, and wide - ranging applications. They are a reliable choice for industries seeking to enhance the efficiency and reliability of their machinery.

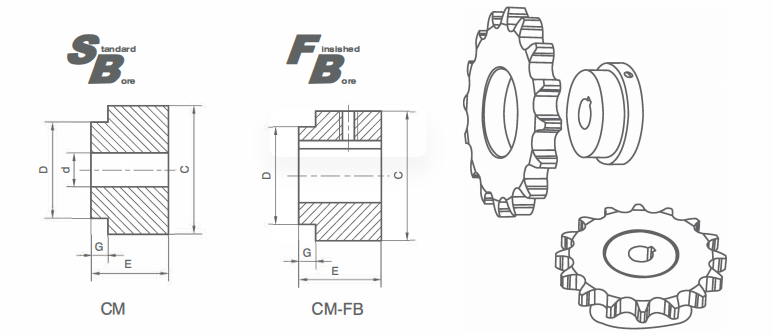

Steel Hubs For Split Taper Bushings

Hub Rel	Bore		Main dimensions (mm)				kg
Hub Rel	Min	Max	C	D	E	G	kg
CM40	10	25	50	40	28	11.10	0.46
CM50	10	28	60	50.8	30	11.10	0.77
CM60	12	32	70	60	35	16.20	1.20
CM70	14	42	83	70	40	18.50	1.91
CM90	18	50	106	90	50	24.10	2.84
CM110	20	60	127	110	60	24.10	5.97
CM130	25	75	152	130	70	24.10	9.98
CM155	35	90	184	155	90	24.10	16.7

Hub Rel

Weld-on Hubs Bore

CM40FB

CM50FB

CM60FB

CM70FB

CM90FB

CM110FB

CM130FB

CM155FB

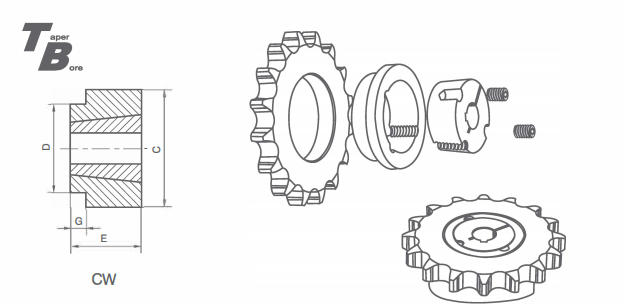

Steel Hubs For Split Taper Bushings

Hub Rel	Bush No	Bore		Main dimensions (mm)
Hub Rel	Bush No	Min	Max	C	D	E	G
CW1008	1008	10	25	60	50.8	22	11.10
CW1210	1210	12	32	70	60	25	11.10
CW1215	1215	12	32	70	60	38	16.20
CW1610	1610	14	42	83	70	25	18.50
CW1615	1615	14	42	83	70	38	24.10
CW2012	2012	18	50	106	90	32	24.10
CW2517	2517	20	60	127	110	45	24.10
CW3020	3020	25	75	152	130	51	24.10
CW3030	3030	25	75	152	130	76	24.10
CW3535	3535	35	90	184	155	89	24.10

Hub Rel

Bush

Waper Bushing Bore

CW1008

1008

CW1210

1210

CW1215

1215

CW1610

1610

CW1615

1615

CW2012

2012

CW2517

2517

CW3020

3020

CW3030

3030

CW3535

3535

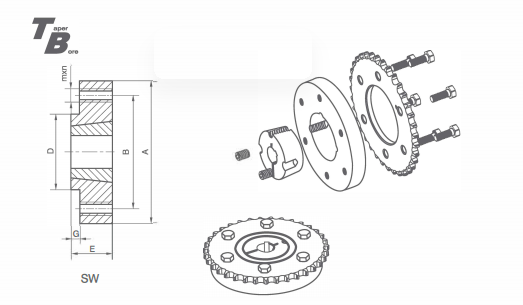

Steel Hubs For Split Taper Bushings

Hub Rel	Bush No	Main dimensions (mm)					Screw bale M×n
Hub Rel	Bush No	A	B	D	E	G	Screw bale M×n
SW1610	1610	130	102	70	25	7.2	M8×4
SW2012	2012	140	121	90	32	11.1	M8×6
SW2517	2517	175	146	110	45	18.5	M10×6
SW3020	3020	211	181	130	51	24.1	M12×6
SW3030	3030	211	181	130	75	24.1	M16×6
SW3535	3535	241	215	155	89	24.1	M16×6

Hub Rel

Bush No

Taper Bushing Bore

SW1610

1610

SW2012

2012

SW2517

2517

SW3020

3020

SW3030

3030

SW3535

3535

Steel Hubs For Split Taper Bushings

Bore	Keyway W×D	Set Surews
10	3×1.4	M4
11-12	4×1.8	M4
14-16	5×2.3	M4
18-22	6×2.8	M5
24-30	8×3.3	M6
32-38	10×3.3	M8
40-42	12×3.3	M10
45-50	14×3.8	M12
55	16×4.3	M12
60-65	18×4.4	M16
70-75	20×4.9	M16
80-85	22×5.4	M16
90-95	25×5.4	M16

Bore	CM40	CM50	CM60	CM70 SM70	CM90 SM90	CM110 SM110	CM130 SM130	CM155 SM155
10	●	●
12	●	●	●
14	●	●	●	●
16	●	●	●	●
18	●	●	●	●	●
20	●	●	●	●	●	●
22	●	●	●	●	●	●
24	●	●	●	●	●	●
25	●	●	●	●	●	●
28		●	●	●	●	●	●
30			●	●	●	●	●
32			●	●	●	●	●
35				●	●	●	●	●
38				●	●	●	●	●
40				●	●	●	●	●
42				●	●	●	●	●
45					●	●	●	●
48					●	●	●	●
50					●	●	●	●
55						●	●	●
60						●	●	●
65							●	●
70							●	●
75							●	●
80								●
85								●
90								●

Steel Hubs For Split Taper Bushings

Hub Rel	Sprocket No.	Bore		Main dimensions (mm)						Screw hole M×n	Kg ③
				C	B	D	G	E	F
		Min	Ma×
SMD70	06B	14	42	130	102	70	5.2	15.4	5.0	M8×8	1.5
	08B						7.1	21.0	6.8		2.1
SMD90	08B	18	50	140	121	90	7.1	20.0	6.8	M8×12	2.5
	10B						9.0	25.5	7.5		3.0
	12B						11.0	30.3	8.3		3.6
SMD110	10B	20 20	60 60	175 175	146 146	110 110	9.0 11.0	25.5 30.3	7.5 8.3	M10×12	4.5 5.5
	12B
	16B						16.0	47.7	15.7		8.6
	20B						18.4	54.6	17.8		9.8
SMD130	16B	25	75	211	181	130	16.0	17.7	15.7	M12×12	12.7
	20B						18.4	54.6	17.8		15.0
	24B						23.80	72.0	24.4		20.0
SMD155	24B	35	90	241	215	155	23.80	72.0	24.4	M16×12	25.5
	-						-	-	-		-
