Standard Gear Rack

Raydafon Group's Standard Gear Rack delivers precision and durability for industrial machinery, featuring high-strength materials and seamless integration to boost efficiency. Ideal for engineers and manufacturers, it ensures reliable performance and reduces downtime, setting it apart with superior quality. Experience enhanced productivity today!

Send Inquiry

Product Description

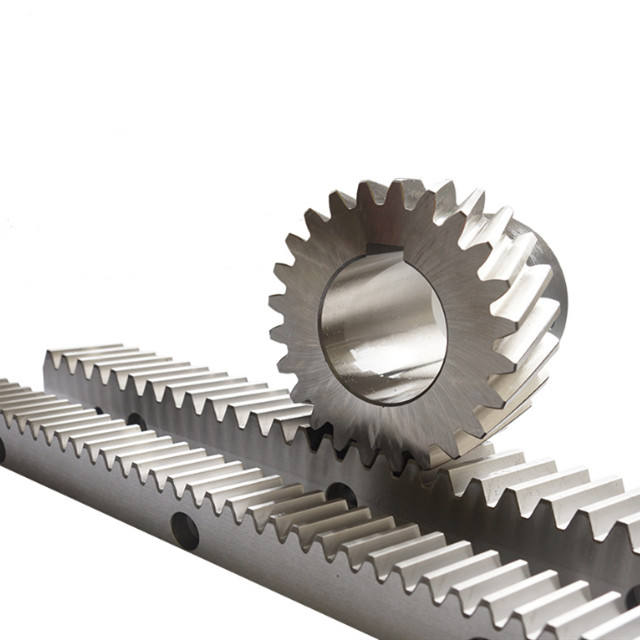

There is other module gear rack available, and also there is CP or DP teeth available, Ocean can produce as per your drawings.Most of Ocean Standard Gear Rack are exported to Europe since 2005. Most of Ocean OEM customers send drawings and Ocean produce as per their drawings, if you do not have drawing, Ocean can also produce as per your sample.

Standard Gear Rack

Dentatura diritta			Straight toothing			GeradeVerzahnung			Denture droite			Dentado derecho
Angolo pressione 20°			Angle of pressure 20°			Eingriffswinskel 20°			Angle de pression 20°			Angulode presión 20°
MaterialeC45E UNI EN 10083-1			Material C45E UNI EN 10083-1			WerkstoffC45E UNI EN 10083-1			Matière C45E UNI EN 10083-1			Material C45E UNI EN 10083-1

Mod.	hp	he x S		L
				500			1000			2000			3000
				Cod.	Kg		Cod.	Kg		Cod.	Kg		Cod.	Kg
1	140	15 x 15		CR 26050	820		CR 26100	1,500		CR 26200	3,100		CR 26300	4,900
15	155	17 x 17		CR 27050	1,000		CR 27100	2,000		CR 27200	4,000		CR 27300	6,100
2	180	20 x 20		CR 28050	1,400		CR 28100	2,700		CR 28200	5,400		CR 28300	8,400
25	225	25 x 25		CR 29050	2,100		CR 29100	4,300		CR 29200	8,600		CR 29300	11,900
3	270	30 x 30		CR 30050	3,100		CR 30100	6,300		CR 30200	12,500		CR 30300	18,600
4	18	22 x 22		CR 37050	1,400		CR 37100	3,250		CR 37200	6,800
4	210	25 x 25		CR 36050	1,800		CR 36100	3,650		CR 36200	7,300		CR 36300	10,900
4	260	30 x 30		CR 33050	3,050		CR 33100	6,000		CR 33200	11,900		CR 33300	18,100
4	360	40 x 40		CR 31050	5,500		CR 31100	11,100		CR 31200	22,000		CR 31300	31,300
5	450	50 x 50		CR 32050	8,300		CR 32100	17,500		CR 32200	34,600		CR 32300	45,300
6	54	60 x 60		CR 34050	12,650		CR 34100	25,000		CR 34200	51,000
8	720	80 x 80		CR 39050	22,400		CR 39100	45,000		CR 39200	90,000

Standard Gear Rack

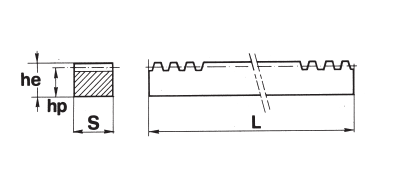

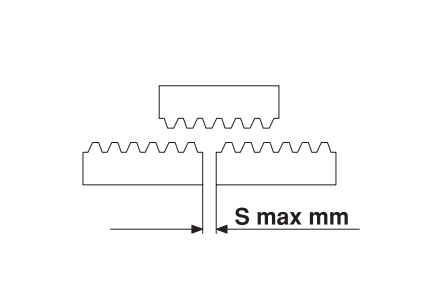

Dati tecnici Technical specifications Technische Daten Donnees techniques Datos tecnicos
Mod.	Passo / Pitch Teilung / Pas Paso	S	L
			500		1000		2000		3000
			Z	Lr	Z	Lr	Z	Lr	Z	Lr
1	31,416	5	159	49,951	319	100,217	637	200,120	955	300,023
15	47,124	6	106	49,951	213	100,374	425	200,277	637	300,180
2	62,832	6	80	50,266	160	100,531	319	200,434	478	300,337
25	78,540	7	64	50,266	128	100,531	255	200,277	382	300,023
3	94,248	8	53	49,951	107	100,845	213	200,748	319	300,651
4	125,664	8	40	50,266	80	100,531	160	201,062	239	300,337
5	157,080	10	32	50,266	64	100,531	128	201,062	191	300,023
6	188,496	10	27	50,894	54	101,788	107	201,691
8	251,328	10	20	50,266	40	100,531	80	201,062
