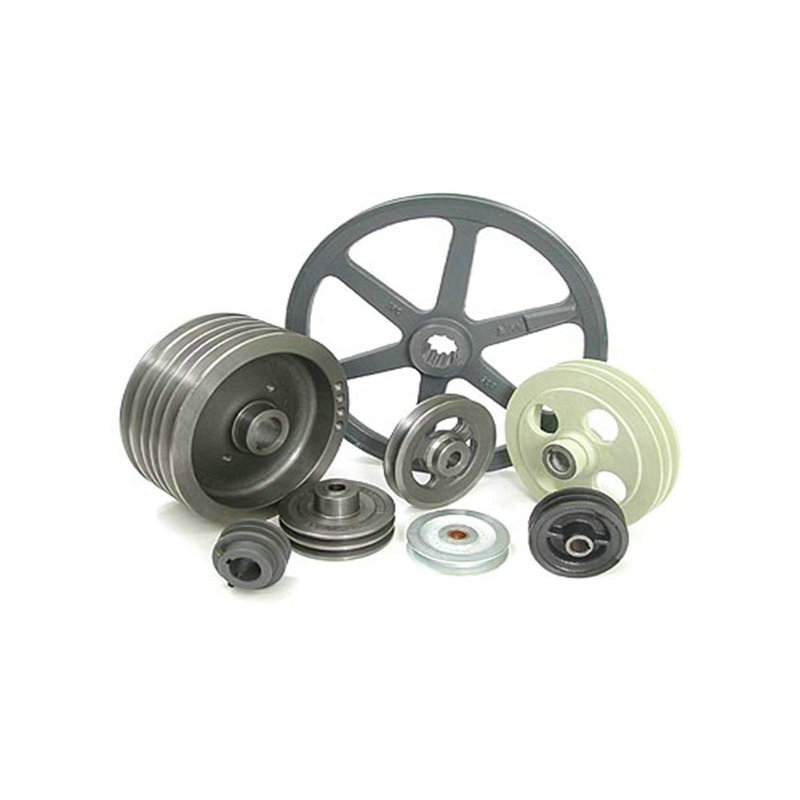

Split Sheaves

China pulleys manufacturer, chinese pulley supplier, produce: taper pulleys, adjustable pulleys, falt belts pulleys, V-belt pulleys, sheaves, V-Belt Pullys for taper bushes, V-Belt Pullys with solid hub. We can produce as per customer's drawing or sample. Please feel free to send us your detail enquiries. E-mail: [email protected]

Send Inquiry

Product Description

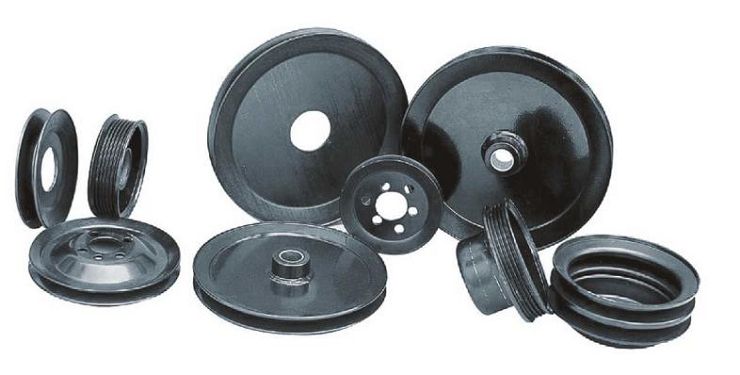

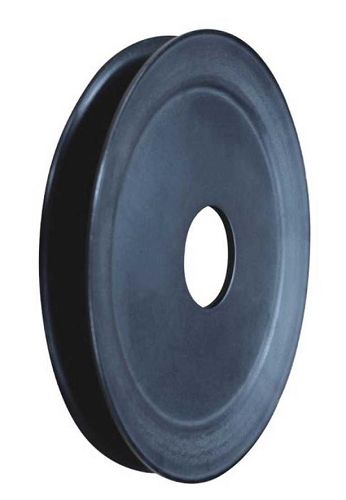

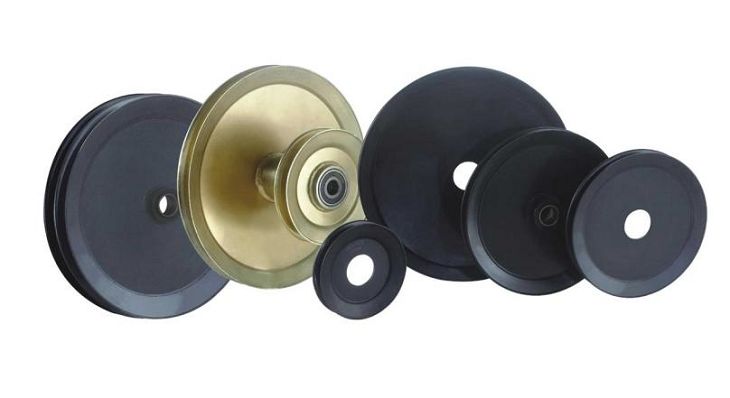

SPLIT PULLEY

Split pulley, possesses the characters of light-duty, less cost, high efficiency and bettern performance, is one of the most important transmission parts. It can be widely used in motor vehicles, gricultural machines, textile machines, household appliances horticultural machines and so on.

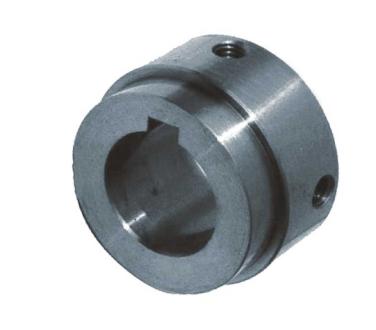

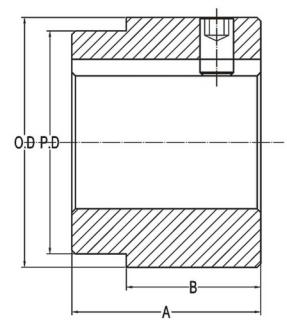

P.M Hubs

P.M V Series Hubs

PART NO.	Bore Size	Wt.lbs	DIMENSIONS(INCHES)
PART NO.	Bore Size	Wt.lbs	O.D	P.D	A	B
P V1/2	1/2	0.38	1 7/16	11/8	1 3/16	3/4
P V9/16	9/16	0.38	7/16	11/8		3/4
P V5/8	5/8	0.38	7/16	11/8		3/4
P V11/16	11/16	0.33	7/16	1 1/8		3/4
P V3/4	3/4	0.33	7/16	11/8		3/4
P V13/16	13/16	0.25	7/16	11/8		3/4
P V7/8	7/8	0.25	7/16	11/8		3/4

P.M W Series Hubs

PART NO.	Bore Size	Wt.lbs	DIMENSIONS
PART NO.	Bore Size	Wt.lbs	O.D	P.D	A	B
P W1/2	1/2	1.94	1 13/16	1 5/8	1 7/16	1
P W9/16	9/16	1.94	1 13/16	1 5/8	1 7/16	1
P W5/8	5/8	1.83	1 13/16	15/8	1 7/16	1
P W11/16	11/16	1.83	1 13/16	15/8	1 7/16	1
P W3/4	3/4	1.83	1 13/16	1 5/8	1 7/16	1
P W13/16	13/16	1.92	1 13/16	1 5/8	1 7/16	1
P W7/8	7/8	1.92	1 13/16	1 5/8	1 7/16	1
P W15/16	15/16	1.52	1 13/16	1 5/8	1 7/16	1
P W1	1	1.39	1 13/16	1 5/8	1 7/16	1
P W1 1/16	1 1/16	1.39	1 13/16	1 5/8	1 7/16	1
P W1 1/8	11/8	1.26	1 13/16	1 5/8	1 7/16	1
P W1 3/16	1 3/16	1.01	1 13/16	1 5/8	1 7/16	1
P W1 1/4	11/4	0.97	1 13/16	1 5/8	1 7/16	1

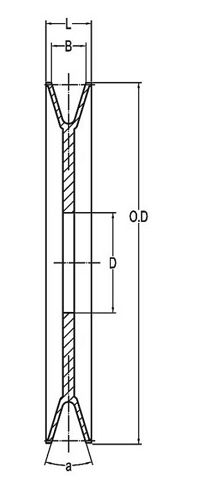

One-Piece Weld on Split Pulleys

P.M SPLIT PULLEYS

PART NO.	Belt Width	DIMENSIONS(INCHES)					Wt .lbs	MATRIAL
PART NO.	Belt Width	O.D	D	L	B	a	Wt .lbs	MATRIAL
PM000300	A& B	3	1 1/8	0.827	0.63	34°	0.36	SPHC
PM000350	A& B	3 1/2	1 1/8	0.827	0.63	34°	0.45	SPHC
PM000400	A& B	4	1 5/8	0.827	0.63	34°	0.55	SPHC
PM000450	A& B	4 1/2	1 5/8	0.827	0.63	34°	0.7	SPHC
PM000500	A& B	5	1 5/8	0.827	0.63	34°	0.85	SPHC
PM000550	A& B	5 1/2	1 5/8	0.827	0.63	34°	1.05	SPHC
PM000600	A& B	6	1 5/8	0.827	0.63	34°	1.25	SPHC
PM000650	A& B	6 1/2	1 5/8	0.827	0.63	34°	1.5	SPHC
PM000700	A& B	7	1 5/8	0.827	0.63	34°	1.75	SPHC
PM000800	A& B	8	1 5/8	0.827	0.63	38°	2.25	SPHC
PM000900	A& B	9	1 5/8	0.827	0.63	38°	2.85	SPHC
PM001000	A& B	10	1 5/8	0.827	0.63	38°	3.55	SPHC
PM001100	A& B	11	1 5/8	0.827	0.63	38°	4.25	SPHC
PM001200	A& B	12	1 5/8	0.827	0.63	38°	3.95	SPHC
PM001400	A& B	14	1 5/8	0.827	0.63	38°	5.5	SPHC
PM001600	A&B	16	1 5/8	0.827	0.63	38°	6.65	SPHC

ALL SPLIT PULLEY SURFACES IS BLACK OXIDE OR GRAY.

One-Piece Weld on Split Pulleys
