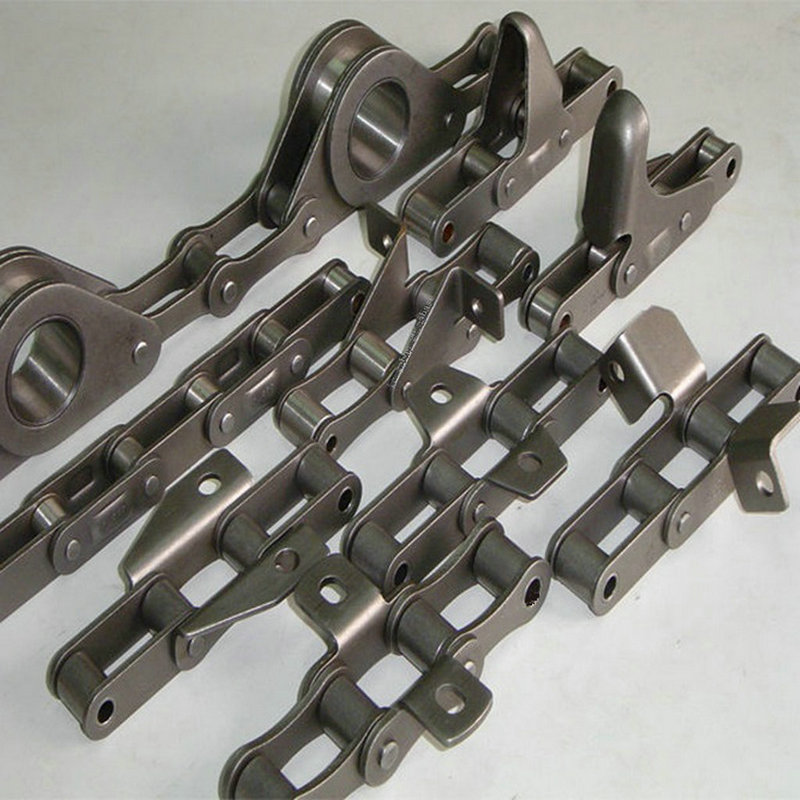

Type:Special Agricultural Chains And Attachments
Material:steel
Configuration:roller
Other characteristics:lube-free, heat-resistant
Chain pitch:40MM-50.8MM
Surface treatment: shot peening, zinc plating.
Application scope: widely used in feed factory, grain cleaning machine and grain returning machine.

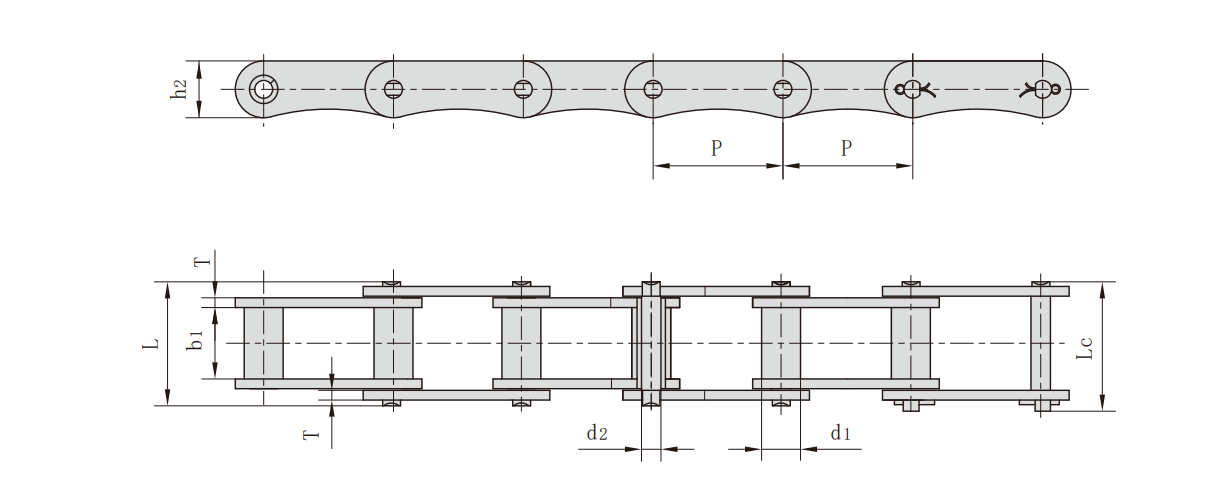

| Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Inner plate depth | Plate thickness | Tensile strength | Average tensile strength | Weight per meter | |
| P | d1 max | b1 min | d2 max | L max | Lc max | h2 max | t/T max | Q min | Q0 | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | kN | kg/m | |
| 55VF1H2 | 41.4 | 17.9 | 22.23 | 8.22 | 45.3 | 48.4 | 21.4 | 3.0 | 60.0/11858 | 65.0 | 2.92 |
| CA650F1 | 50.8 | 25.0 | 19.00 | 11.28 | 49.2 | 53.7 | 25.0 | 3.5/5.0 | 138.0/27273 | 140.0 | 4.36 |

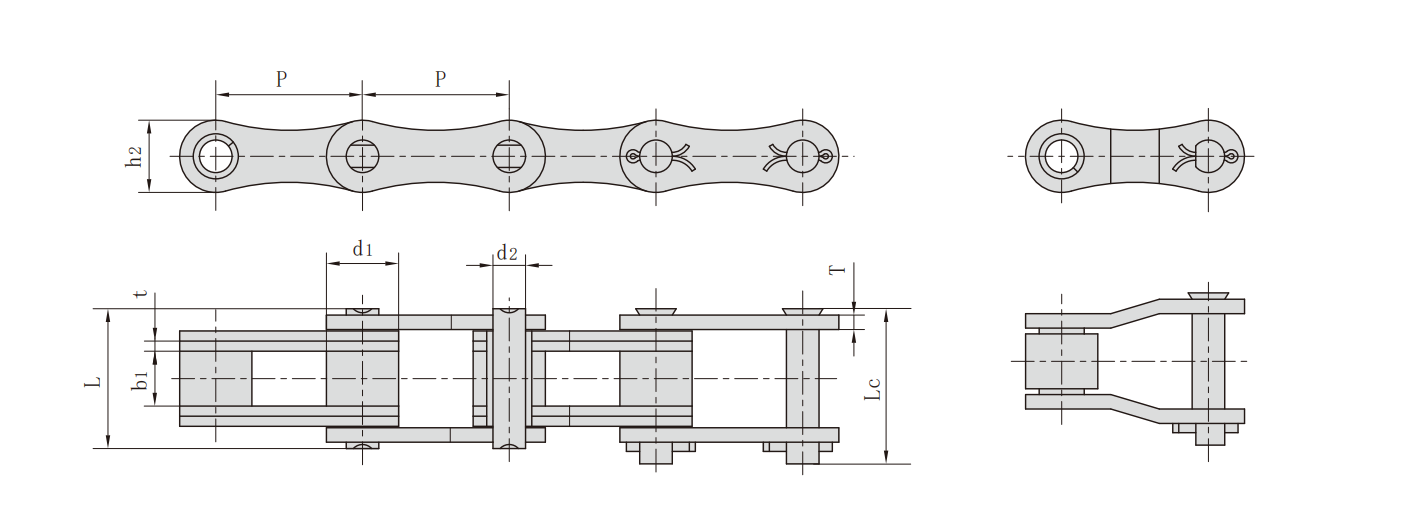

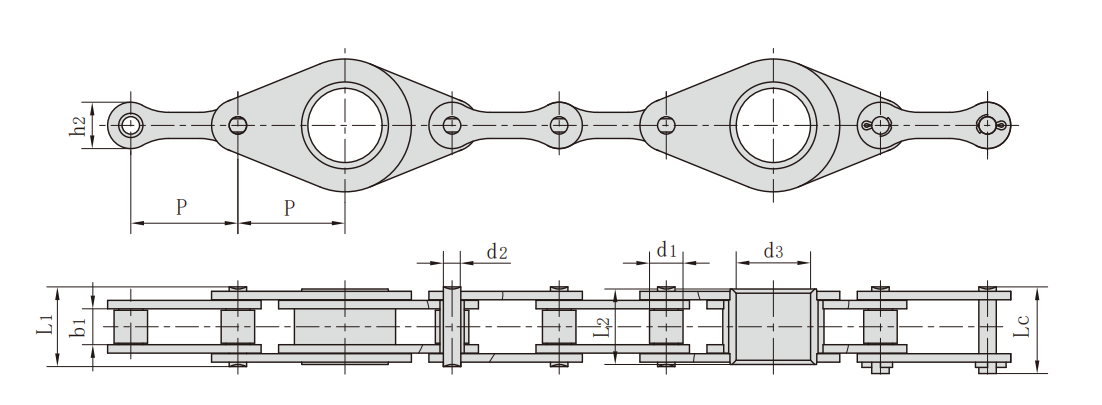

| Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Hollow pin inner diameter | Pin length | Inner plate depth | Tensile strength | Average tensile strength | ||
| P | d1 max | b1 min | d2 max | d3 min | L1 max | L2 max | Lc max | h2 max | Q min | Q0 | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/bf | kN | |
| 216BF1 | 50.8 | 15.88 | 17.02 | 8.28 | 35.3 | 37.8 | 35.8 | 41.3 | 22.0 | 60.0/13636 | 70.8 |
| CA650F3 | 50.8 | 19.05 | 19.05 | 9.53 | 35.3 | 40.4 | 37.8 | 44.7 | 25.0 | 90.0/20454 | 99.0 |

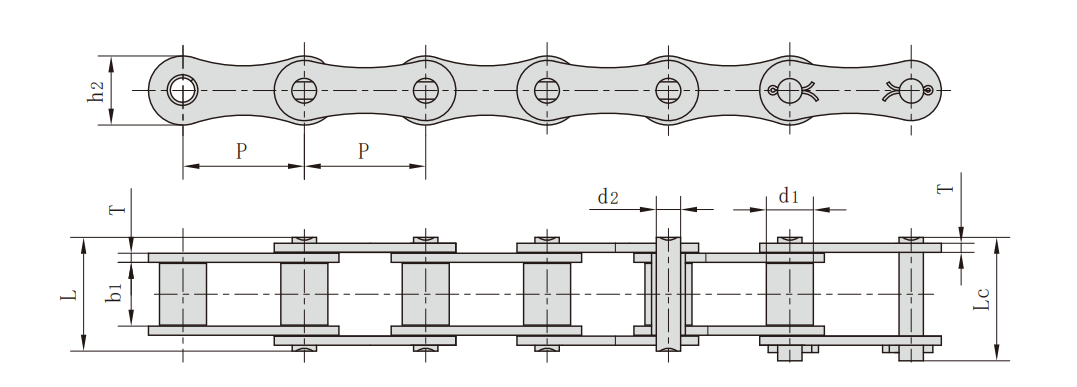

| Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Plate dimension | Tensile strength | Weight per meter | ||
| P | d1 max | b1 min | d2 max | L max | Lc max | h2 max | T max | Q min | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | kg/m | |
| P41.3 | 41.30 | 16.00 | 21.40 | 8.28 | 39.0 | 42.0 | 23.5 | 3.10 | 50.0/11363 | 2.27 |
| CA620F4 | 42.01 | 19.05 | 27.90 | 10.19 | 44.9 | 46.5 | 25.0 | 3.00 | 45.0/10277 | 2.95 |
| CA642 | 41.40 | 15.88 | 19.00 | 8.28 | 36.1 | 39.1 | 21.2 | 3.00 | 50.0/11363 | 1.98 |
| CA645F1 | 41.40 | 17.78 | 22.23 | 8.22 | 41.3 | 44.4 | 21.4 | 1.33 | 71.7/16120 | 2.43 |
| CA650 | 50.80 | 25.00 | 18.90 | 9.53 | 40.4 | 44.7 | 25.0 | 4.00 | 90.0/20454 | 3.49 |
| CA650F2 | 50.80 | 20.00 | 18.90 | 9.53 | 40.4 | 44.7 | 25.0 | 4.00 | 90.0/20454 | 2.98 |
| CA650F4 | 50.80 | 19.05 | 19.05 | 5.93 | 40.4 | 44.7 | 25.0 | 4.00 | 90.0/20454 | 2.85 |

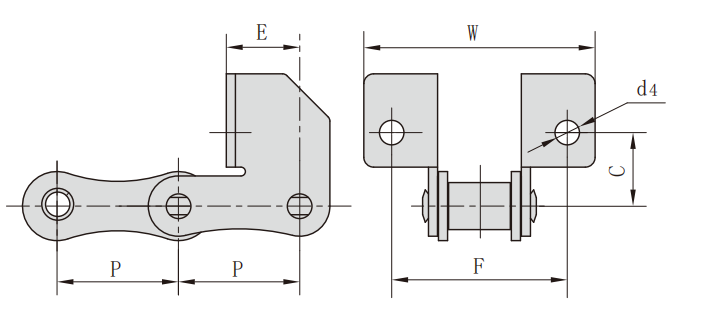

| Chain No. | P | C | E | F | W | d4 |
| mm | mm | mm | mm | mm | mm | |
| P41.3SD | 41.3 | 25 | 25.0 | 60 | 79 | 6.4 |
| P41.3SDF4 | 41.3 | 25 | 25.0 | 60 | 79 | 6.4 |
| P41.3SDF5 | 41.3 | 25 | 52.3 | 55 | 80 | 8.5 |
| P41.3SDF6 | 41.3 | 25 | 25.0 | 60 | 79 | 8.4 |

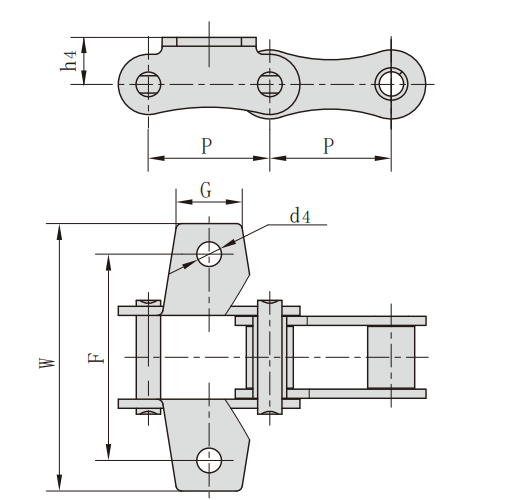

| Chain No. | P | G | F | W | h4 | d4 |
| mm | mm | mm | mm | mm | mm | |
| P41.3K1 | 41.3 | 22.0 | 70.5 | 91.3 | 16.0 | 8.4 |
| Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Plate depth | Plate thickness | Tensile strength | Weight per meter | |
| P | d1 max | b1 min | d2 max | L max | Lc max | h2 max | T max | Q min | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | kg/m | |
| LV40 | 40 | 12.0 | 22.0 | 6.0 | 38.2 | 41.0 | 17.5 | 3.0 | 31.4/7136 | 1.53 |
