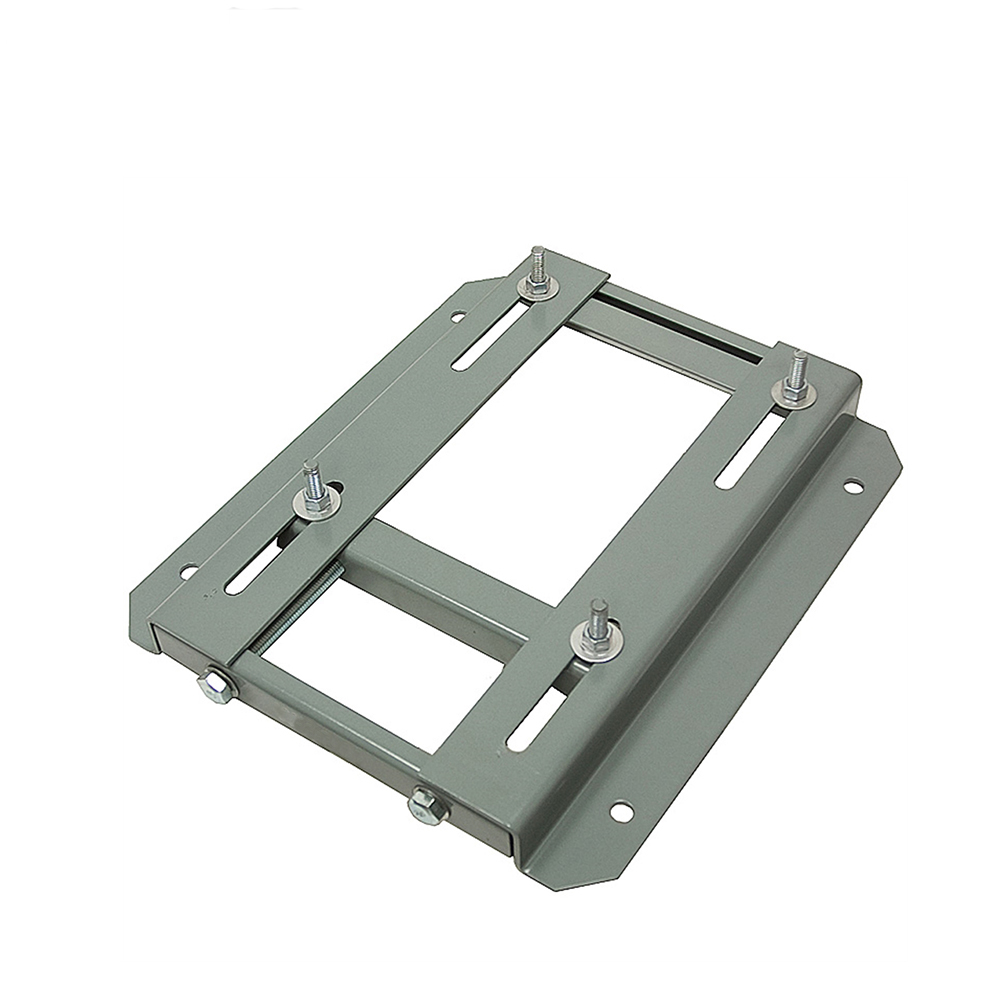

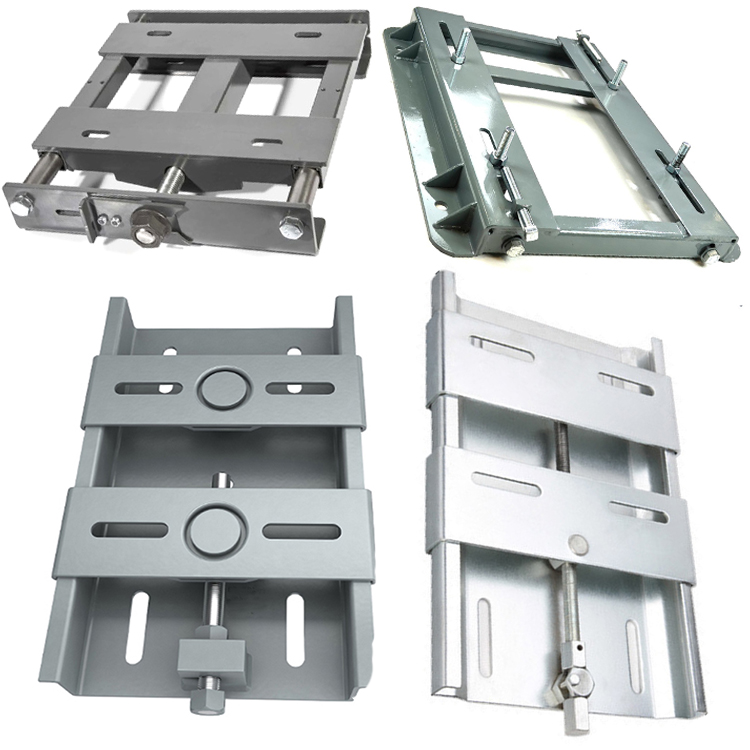

SMA Common Motor Base

SMA Common Motor BaseT1P0 A B C CH D E F G H L M N 0 P Q Kg SMA2I0B 210 150 20 19 30 25 25 10 27 65 50 25 25 80 2.5 1.8 SMA210 210 195 20 19 25 50 25 10.5 33 70 43 50 26 98 3 2.6 SMA 270 270 195 20 19 25 50 25 10.5 33 70 43 50 26 98 3 3.0 SMA 307 307 213 20 19 25 50 25 10.5 33 70 65 50 24 108 3 3.2 ......

Send Inquiry

Product Description

SMA Common Motor Base

T1P0	A	B	C	CH	D	E	F	G	H	L	M	N	0	P	Q	Kg
SMA2I0B	210	150	20	19	30	25	25	10	27	65	50	25	25	80	2.5	1.8
SMA210	210	195	20	19	25	50	25	10.5	33	70	43	50	26	98	3	2.6
SMA 270	270	195	20	19	25	50	25	10.5	33	70	43	50	26	98	3	3.0
SMA 307	307	213	20	19	25	50	25	10.5	33	70	65	50	24	108	3	3.2
SMA 340	S40	290	27	22	30	62	30	12.5	40	95	90	62	38	165	4	6.3
SMA 380	380	240	27	19	25	43	30	12	33	95	96	43	29	160	3	4.5
SMA 430	430	290	27	22	30	62	30	12.5	40	95	90	62	38	165	4	7.5
SMA 450	450	350	40	22	30	55	30	15	40	125	174	55	33	225	4	9.7
SMA 490	490	410	40	22	30	60	30	15	40	95	193	60	48.5	284	4	10.8

China Motor Base manufacturer, chinese Motor Base supplier, produce: SMA Common Motor Base，MP Common Motor Base,MA Type Motor pedestal,DHA Motor Rail Track Series. We can produce as per customer's drawing or sample. Please feel free to send us your detail enquiries. E-mail: [email protected]

Hot Tags: Motor Base，Motor Slide Base，Adjustable Motor Base SMA Common Motor Base SMA210B, SMA210, SMA270, SMA307, SMA340, SMA380, SMA430, SMA450, SMA490
