MP Motor Base

MP Motor Base is an adjustable motor slide base for belt-driven fan sets, pumps and industrial drives. 11 sizes cover motor frames 63–315. Cast iron or welded steel, with belt tensioning travel. OEM/ODM, sample orders and wholesale pricing available.

Send Inquiry

Product Description

The MP Motor Base is an adjustable motor slide base built to mount and tension belt-driven motors on fan sets, pumps, compressors and other industrial equipment. The motor slides along machined rails so you can set the correct belt tension without shimming or re-drilling the mounting feet — and re-tension the belt later as it stretches.

If you are sourcing adjustable motor bases for OEM assembly, MRO replacement or dealer stock, this page gives you the size range, material options, mounting dimensions and the exact information we need to quote you accurately.

Sourcing MP Motor Bases in Bulk?

Get factory-direct pricing, OEM branding and a confirmed fitment check for your motor frame size — reply within 24 working hours.

Get Factory Quote Now Chat on WhatsApp

Belt Tensioning Travel Machined slide rails give smooth linear adjustment so you can set belt tension precisely — no shims, no re-drilling.

11 Sizes, Frames 63–315 Covers IEC motor frames from 63 to 315, from small fan sets up to large industrial drives.

Cast Iron / Welded Steel Rigid base keeps motor alignment under vibration and belt pull; primed and painted for corrosion resistance.

OEM / ODM Ready Custom hole patterns, slide travel, paint and your own brand on the base and packaging for volume orders.

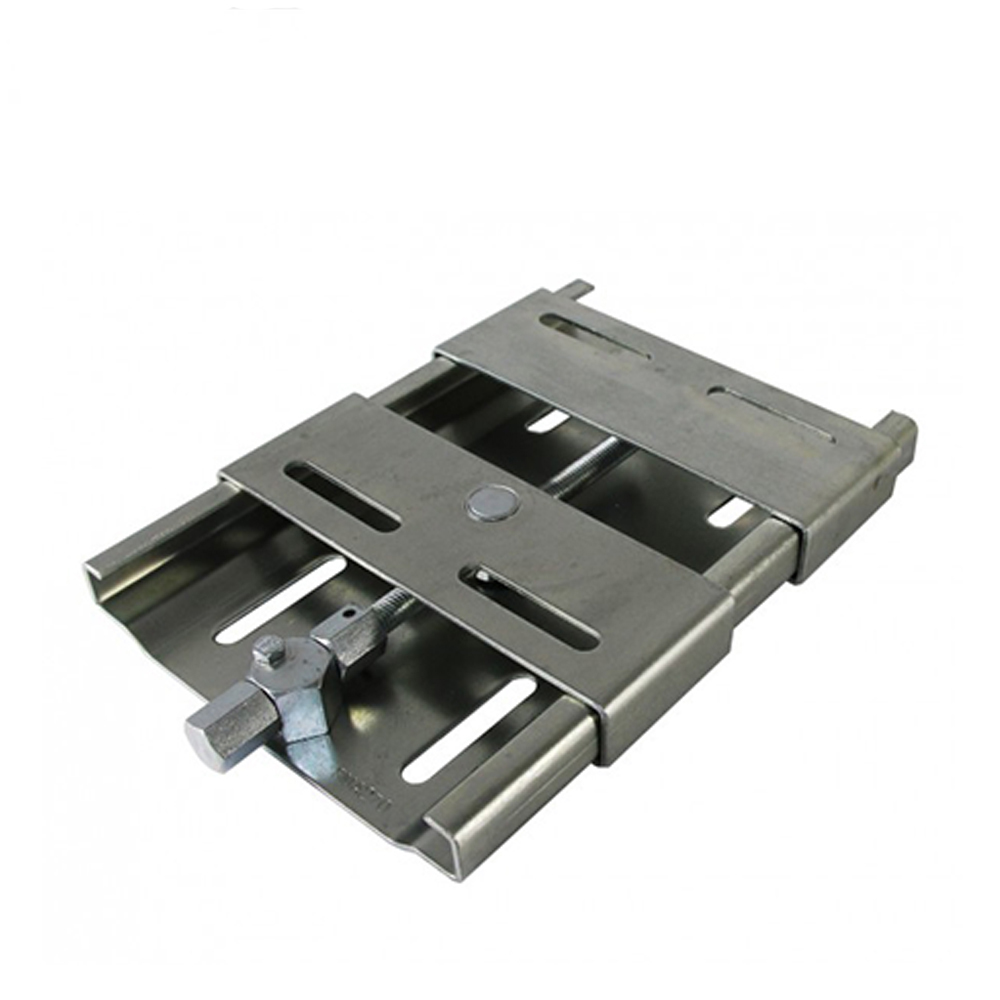

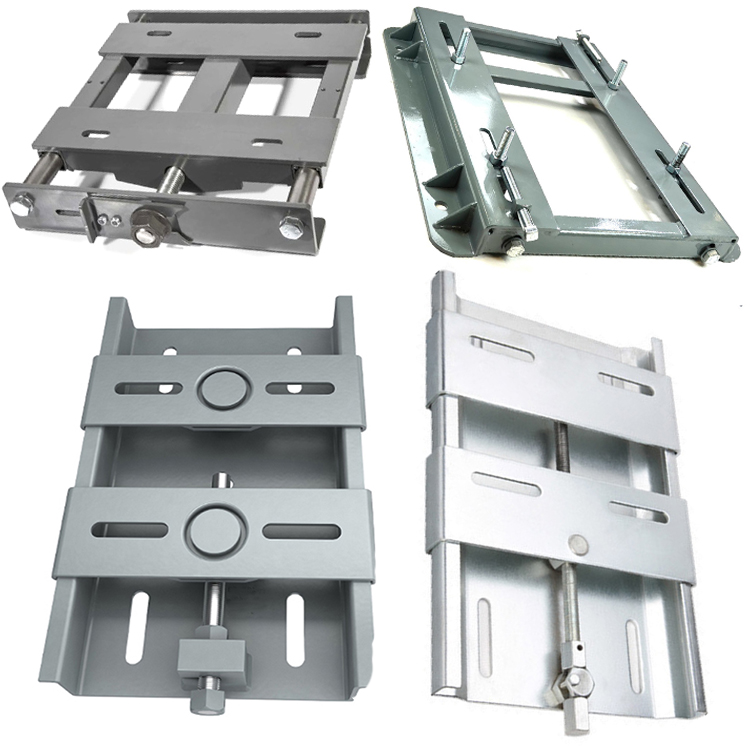

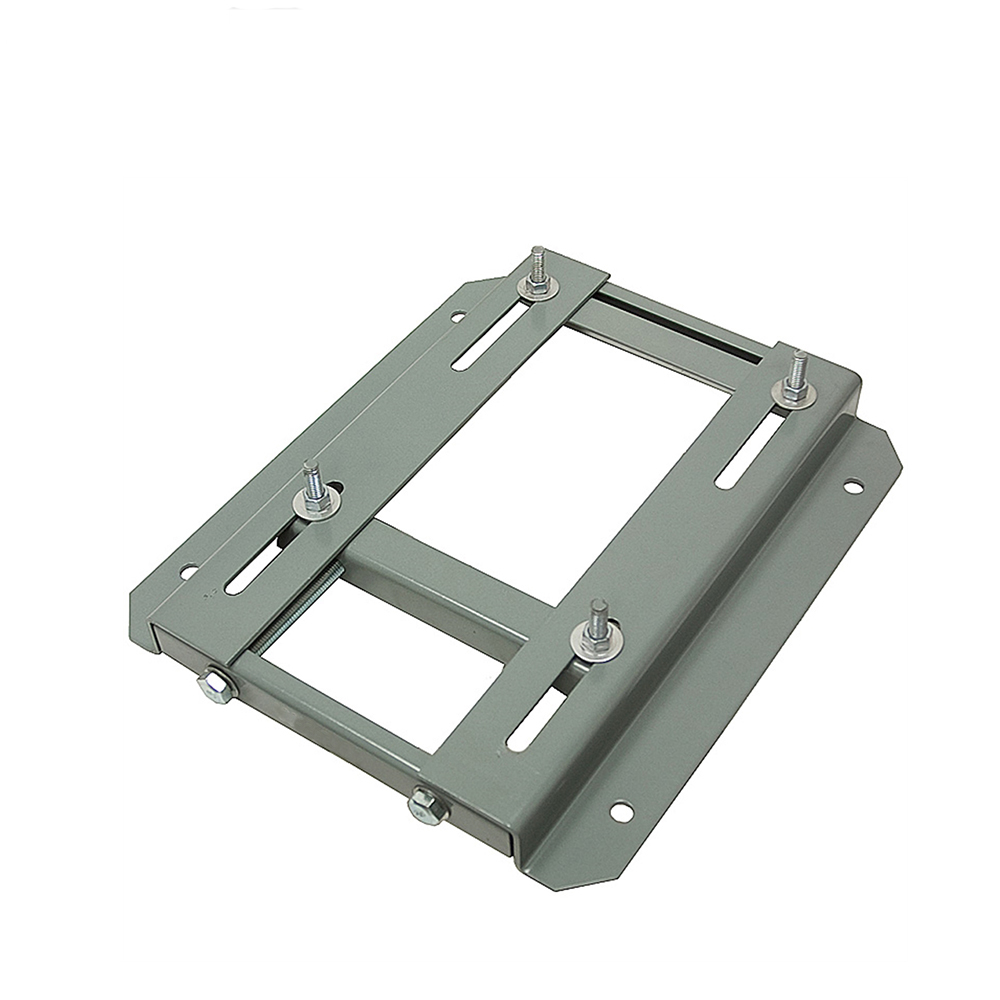

MP Motor Base Adjustable Motor Slide Base

MP Motor Base OEM Adjustable Motor Slide Base

MP Motor Base Custom Adjustable Motor Slide Base

MP Motor Base Industrial Motor Slide Base

How an Adjustable Motor Slide Base Works

The motor is bolted to a sliding carriage that moves along two machined rails on the base. Turning the adjusting screw moves the carriage forward or backward, which changes the centre distance between the motor pulley and the driven pulley. Moving the motor away from the driven pulley increases belt tension; moving it closer reduces tension.

This matters because belt tension directly affects bearing load, belt life and drive efficiency. Too loose and the belt slips and wears quickly; too tight and motor and driven bearings are overloaded. An adjustable base lets the maintenance team set the tension correctly at installation and re-tension the belt later as it stretches — without adding shims or re-drilling the motor feet.

MP Motor Base Size Range & Motor Frame Coverage

The MP series covers 11 sizes. Each size matches a specific motor foot mounting hole pattern and belt centre distance range. Send your motor frame size, foot hole spacing and required belt centre distance, and we will confirm the correct model.

Model	Motor Frame Coverage
270-63/90-MP	63–90
307-90/112-MP	90–112
340-100/132-2-MP	100–132 (2-pole)
430-100/132-2-MP	100–132 (2-pole), long travel
430-160/180-2-MP	160–180 (2-pole)
490-160/180-MP	160–180
490-180/200-MP	180–200
585-200/225-MP	200–225
600-250-MP	250
735-280-MP	280
800-315-MP	315

Looking for a different motor base type? Browse the full Motor Base range, including SMA Common Motor Base, MB Type Motor Pedestal and DHA Motor Rail Track Series.

Where the MP Motor Base Is Used

Fan-motor sets — belt-driven fans in HVAC, cooling towers and industrial ventilation where belt tension must be set and maintained.
Pumps and compressors — belt-driven pump and compressor packages that need adjustable motor positioning.
Conveyor and process drives — belt-driven equipment where the motor must be aligned and re-tensioned easily.
OEM equipment builders — machine builders that need a repeatable, pre-sized motor base for their drive packages.
MRO and aftermarket replacement — replacing worn or broken adjustable motor bases on existing belt drives.

Not sure which MP Motor Base size fits your motor?

Send Motor Frame Size for Fitment Check

Quality Control You Can Audit

Every MP Motor Base goes through material inspection, dimensional verification of mounting hole spacing and slide travel, weld quality inspection (for welded steel versions), and load and slide function testing before packing.

Read how we manage process control and traceability on our Quality page, or see the full company profile for capacity and equipment.

Ordering & Supply Information

What to send for a fast quotation

Motor frame size (e.g. 132, 160, 200) and foot mounting hole spacing
Required belt centre distance range
Material preference — cast iron or welded steel
Quantity, destination port, and whether OEM branding is needed

Supply terms

Sample and trial orders accepted for fitment and quality verification
MOQ depends on size and stock status — confirm per order
Export packing: carton + pallet, or wooden case for large sizes
OEM logo and custom paint available for volume orders

Get Your MP Motor Base Quote

Send your motor frame size and quantity — our engineers confirm the correct model and return the quotation within 24 working hours.

Request Price & Size Match Chat on WhatsApp

Installation & Maintenance Tips

Mount the base on a flat, rigid surface; shim only under the base, not under the motor feet.
Align the motor and driven pulleys before tensioning the belt — misalignment causes belt and bearing wear.
Set belt tension according to the belt manufacturer's recommendation; check deflection at the belt midpoint.
Re-check belt tension after the first 24–48 hours of running, then at routine service intervals.
Keep the slide rails clean and lightly lubricated so the motor can move freely during tensioning.
Re-torque motor mounting bolts after the first week of operation and at each service.

FAQ — MP Motor Base

What is an MP Motor Base used for? MP Motor Base is an adjustable motor slide base that mounts a motor and allows it to slide for belt tensioning. It is commonly used on fan-motor sets, pumps, compressors and other belt-driven industrial equipment where the motor position must be adjusted to set or maintain belt tension.

Which motor frame sizes does the MP Motor Base cover? The MP series covers 11 sizes from 270-63/90-MP to 800-315-MP, matching IEC motor frames from 63 to 315. Each size is designed for a specific motor foot mounting hole pattern and belt centre distance range. Send your motor frame size and belt centre distance for a confirmed fitment check.

What material is the MP Motor Base made of? The MP Motor Base is available in cast iron or welded steel construction, depending on the size and load rating. Both are primed and painted for corrosion resistance. The slide rails are machined to provide smooth linear adjustment without binding.

What is the MOQ and lead time? Sample orders are accepted for fitment and quality verification before bulk purchase. MOQ depends on size and stock status. Lead time is typically 2–3 days for samples and 20–30 days for mass production. Send your quantity and destination port for a quotation.

Still Have Questions About MP Motor Base?

Send your motor frame size and belt centre distance — our engineers will confirm the correct model and price for your order.

Ask Our Engineer Send Inquiry Form
